Home > Monitor & Desktop Mounts > Ergonomic > Premium Steel Single Arm Desktop Mount
F100AView F100A - ImageView F100A - ImageView F100A - ImageView F100A - Image
F100A

F100A

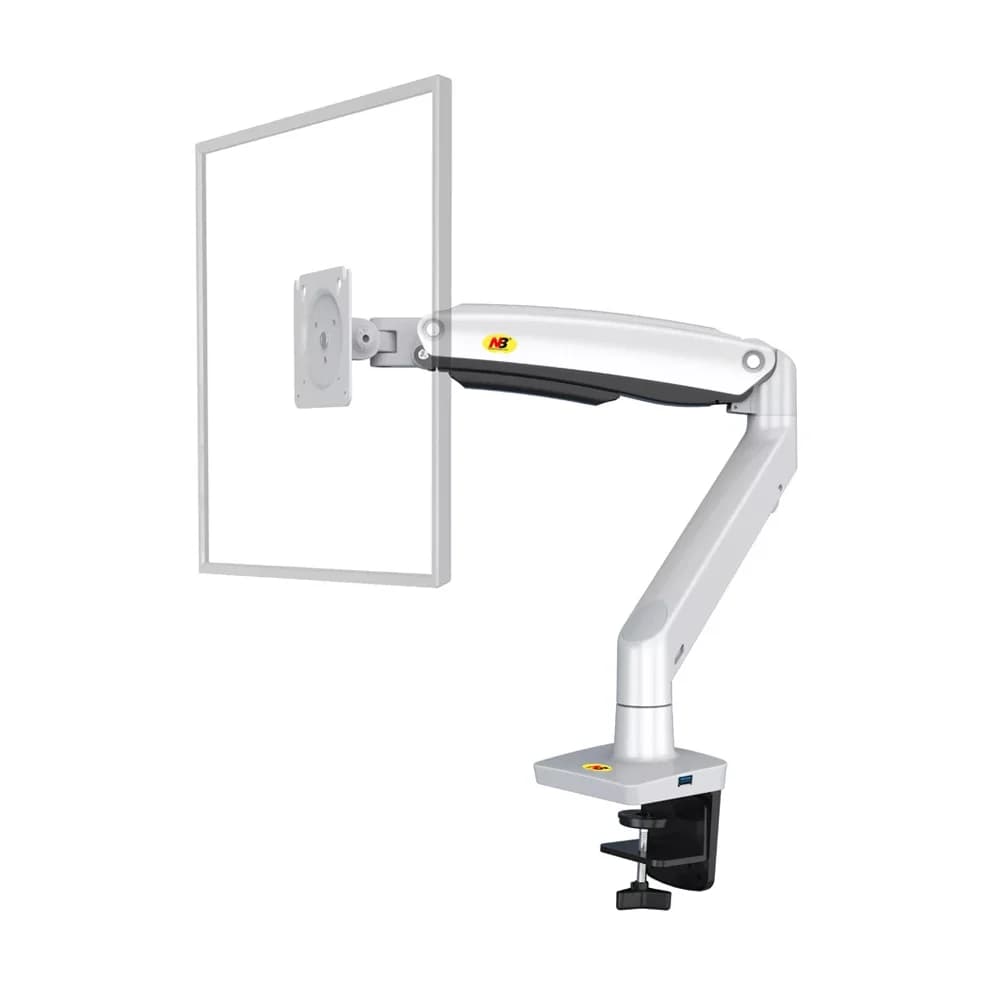

Premium Steel Single Arm Desktop Mount

22''~35'' icon
Screen Size22''~35''
100x100mm icon
Max Vesa100x100mm
12kg icon
Weight Capacity12kg
305-650mm icon
Profile to Wall305-650mm
+85° ~ -30° icon
Tilt Range+85° ~ -30°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm,

Data Sheet

Overview

Product CategoryMechanical Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorWhite
Weight Capacity (per screen)3-12kgs
Tilt Range+85° ~ -30°
Swivel Range+90°~-90°
Screen Rotation+180° ~ -180°
Arm Full Extension467mm (18.4")
Product CategoryMechanical Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorWhite

Features

  • Wide CompatibilitySupports most 22″ to 35″ monitors, including curved screens, with up to 12kg weight capacity.
  • Full Motion RangeOffers +85° to -30° tilt, ±90° swivel, and 360° screen rotation for flexible viewing angles.
  • Durable ConstructionBuilt with premium aluminum, steel, and plastic, finished in a sleek white powder coating.
  • Space-Saving DesignArm extends up to 467mm for optimal desk utilization and ergonomic positioning.
  • User-Friendly InstallationFeatures a quick-release VESA plate and supports clamp or grommet mounting on 10–50mm thick desktops.

Description

The F100A Desk Top Mount is a premium mechanical spring monitor arm designed for 22″ to 35″ flat or curved screens. Made from aluminum, steel, and plastic with a white powder-coated finish, it supports up to 12kg per screen. It features wide tilt, swivel, and full 360° rotation, with an arm extension of 467mm. Includes quick release VESA plate, cable management, and supports clamp or grommet installation for desktops 10–50mm thick.

Installation Video

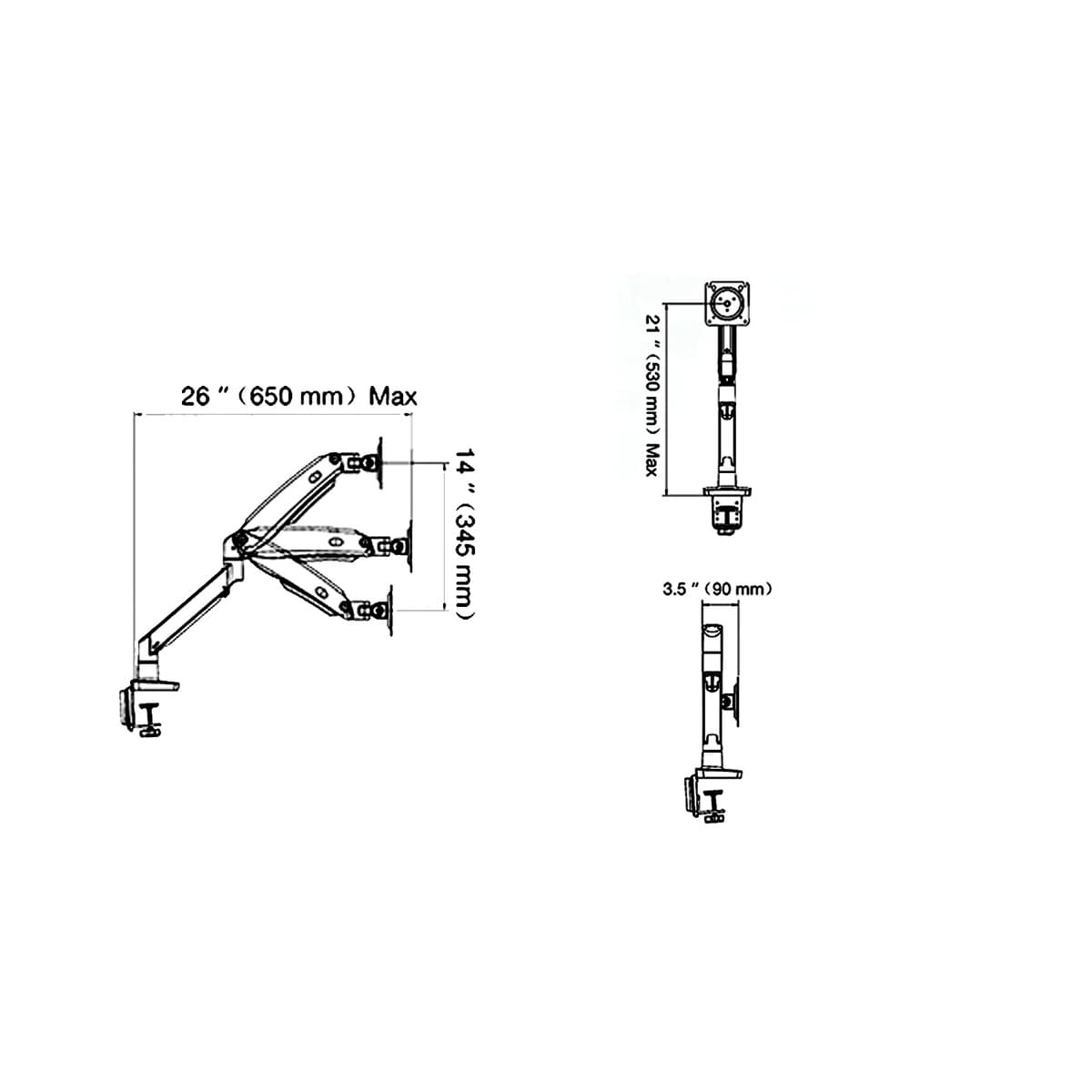

Drawing

Drawing
