Home > Monitor & Desktop Mounts > Ergonomic > Single Monitor Thin Gas Spring Monitor Arm

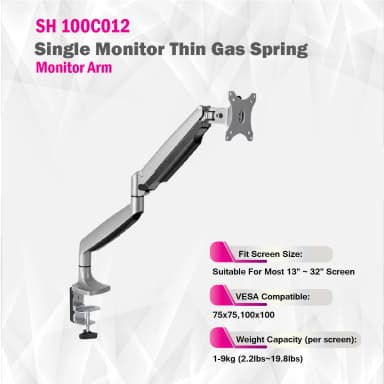

SH100 C012View SH100 C012 - ImageView SH100 C012 - ImageView SH100 C012 - ImageView SH100 C012 - Image

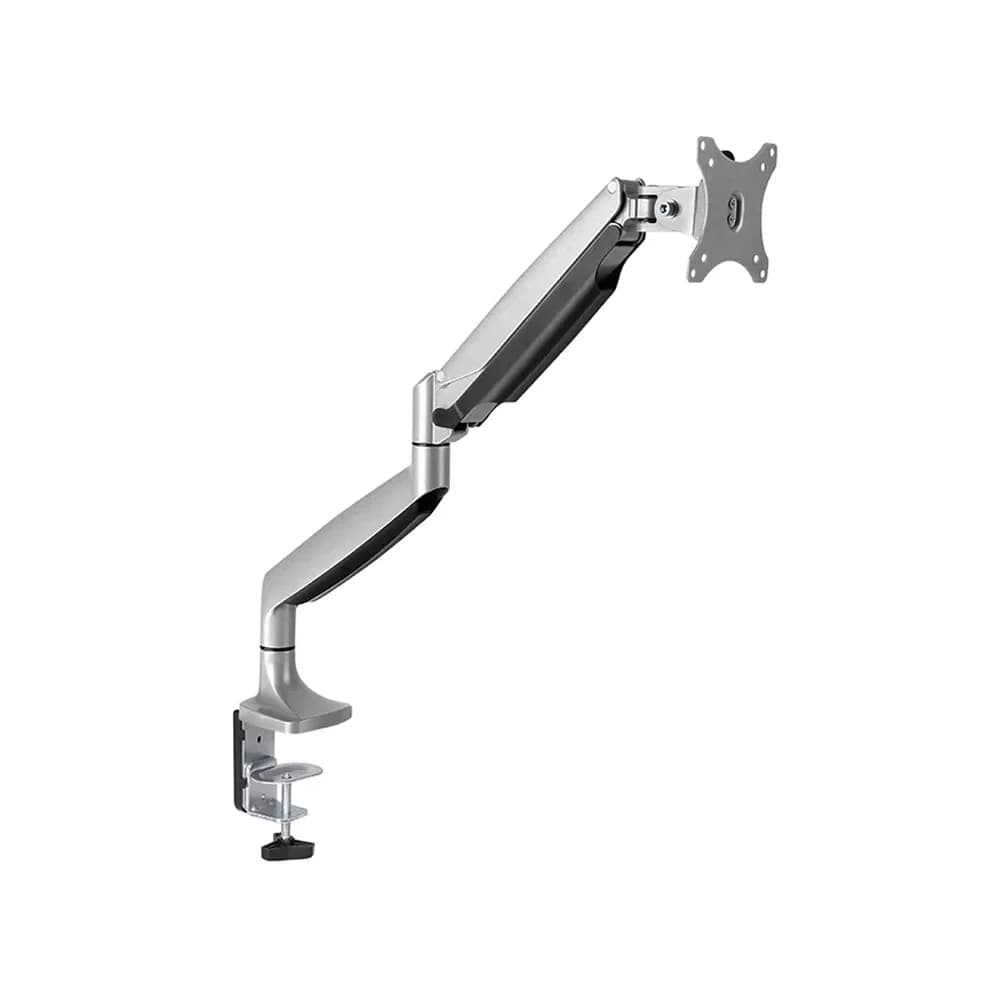

SH100 C012

SH100 C012

Single Monitor Thin Gas Spring Monitor Arm

13"~34" icon
Screen Size13"~34"
100x100mm icon
Max Vesa100x100mm
9kg icon
Weight Capacity9kg
170-505mm icon
Profile to Wall170-505mm
+90° ~ -90° icon
Tilt Range+90° ~ -90°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Single Monitor Thin Gas Spring Monitor Arm

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMetallic Grey
Max. VESA100x100mm
Weight Capacity (per screen)1-9kg (2.2lbs~19.8lbs)
Tilt Range+90° ~ -90°
Swivel Range+90°~-90°
Screen Rotation+90° ~ -90°
Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMetallic Grey

Features

  • Wide CompatibilitySupports most 13" to 34" monitors, including curved screens.
  • Full Motion AdjustabilityOffers ±90° tilt, swivel, and rotation for flexible viewing angles.
  • Sturdy ConstructionMade from premium aluminum, steel, and plastic with a metallic grey finish.
  • Space-Saving DesignArm extends up to 525mm (20.7") for optimal positioning without clutter.
  • Flexible InstallationEasily mounts using clamp or grommet on desktops 10–85mm thick.

Description

The SH100 C012 Single Monitor Gas Spring Arm is a premium solution for ergonomic screen positioning. Designed for 13″–34″ flat or curved monitors, it supports up to 9kg (19.8lbs). Its sleek metallic grey build features full motion flexibility with ±90° tilt, swivel, and rotation. The 525mm extension and clamp/grommet installation ensure adaptability to various setups, while durable aluminum, steel, and plastic construction ensures long-lasting performance and stability.

Installation Video

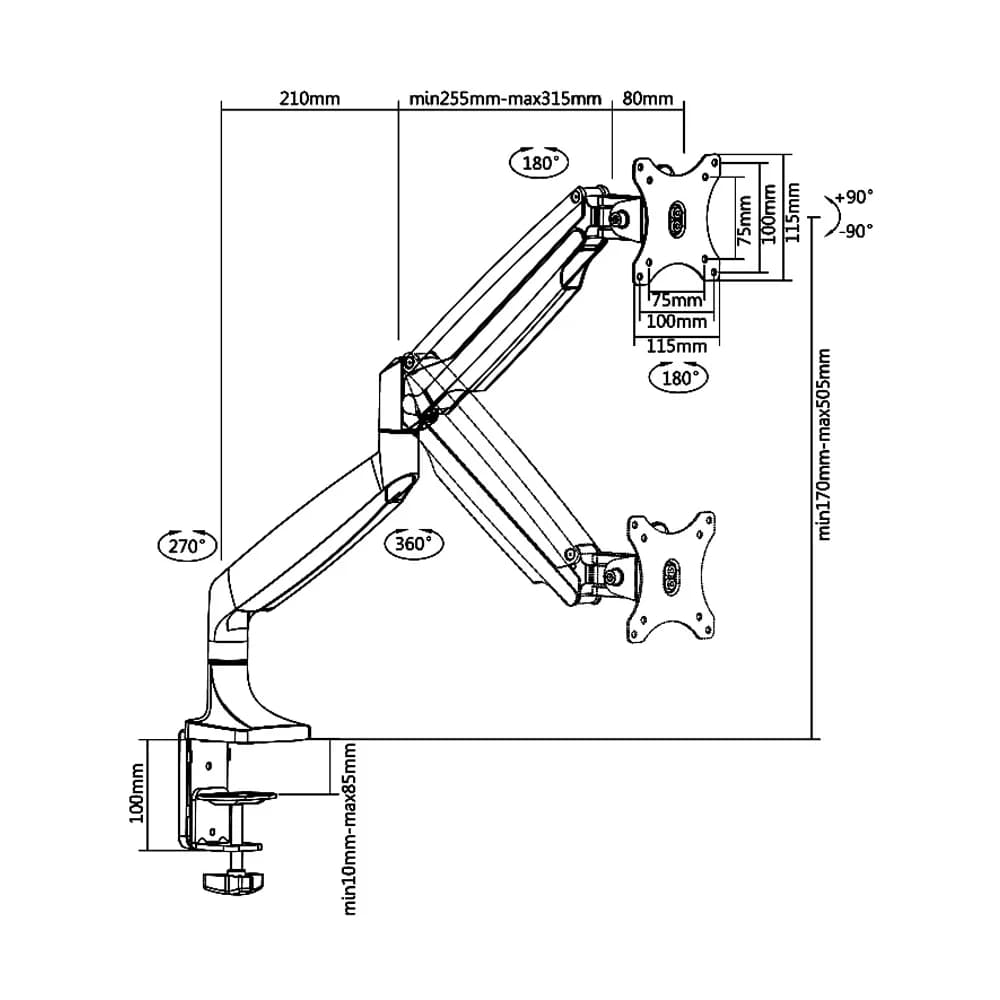

Drawing

Drawing
