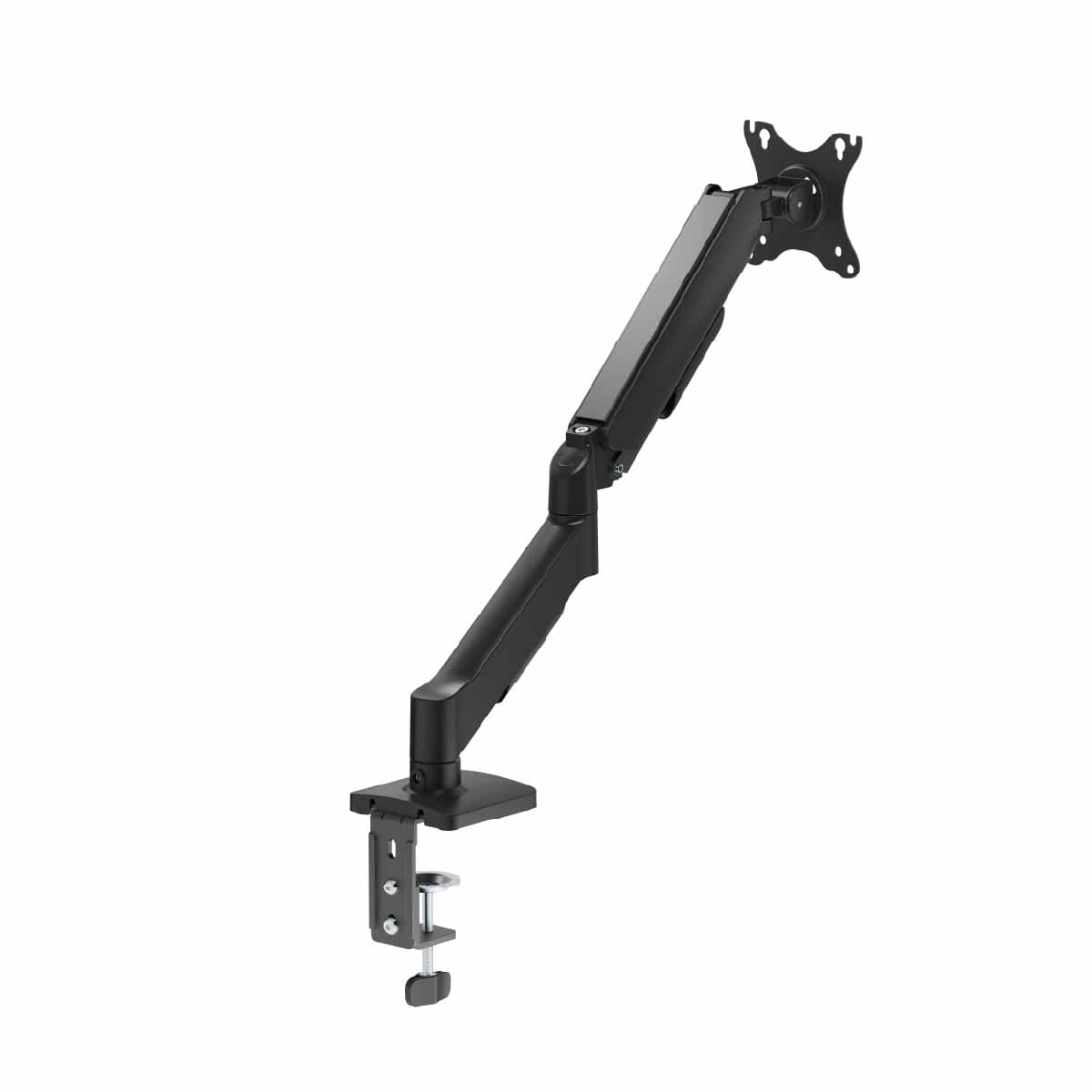

SH130 C012

SH130 C012

Super Economical Mechanical Spring Monitor Arm

17"~32" icon
Screen Size17"~32"
100x100mm icon
Max Vesa100x100mm
9kg icon
Weight Capacity9kg
450mm icon
Profile to Wall450mm
+90° ~ -90° icon
Tilt Range+90° ~ -90°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm,Single Monitor Pole-Mounted Gas Spring Monitor Arm

Data Sheet

Overview

Product CategoryMechanical Spring Monitor Arm
By GradeEconomy
MaterialSteel,Plastic
Surface FinishElectrophoresis,Powder Coating
ColorMatte Black,Matte White
Max. VESA100x100mm
Weight Capacity2~9kg (4.4lbs~19.8lbs)
Tilt Range+90°~-90°
Swivel Range+90°~-90°
Screen Rotation+180°~-180°
Product CategoryMechanical Spring Monitor Arm
By GradeEconomy
MaterialSteel,Plastic
Surface FinishElectrophoresis,Powder Coating
ColorMatte Black,Matte White

Features

  • Full Motion FlexibilityOffers +90° to -90° tilt, ±90° swivel, and ±180° screen rotation for optimal ergonomic positioning.
  • Wide Monitor CompatibilityDesigned for most 17″ to 32″ monitors with a weight range of 2 to 9kg and 100×100mm VESA support.
  • Extended Reach and Height AdjustmentArm extends up to 450mm and allows easy height adjustment for personalized comfort.
  • Dual Installation MethodsSupports both clamp and grommet mounting, fitting desktops from 10mm to 85mm thick.
  • Integrated Cable ManagementKeeps wires organized and out of sight for a tidy workspace.

Description

The SH130 C012 is a single monitor pole-mounted gas spring arm from the Economic Series, built for efficient and ergonomic screen positioning. Supporting most 17″–32″ flat or curved monitors, it holds weights from 2–9kg with a 100×100mm VESA mount. Featuring +90°/-90° tilt, ±90° swivel, and ±180° rotation, it allows full motion flexibility. The arm extends up to 450mm and includes cable management, clamp/grommet installation, and easy height adjustment.

Installation Video

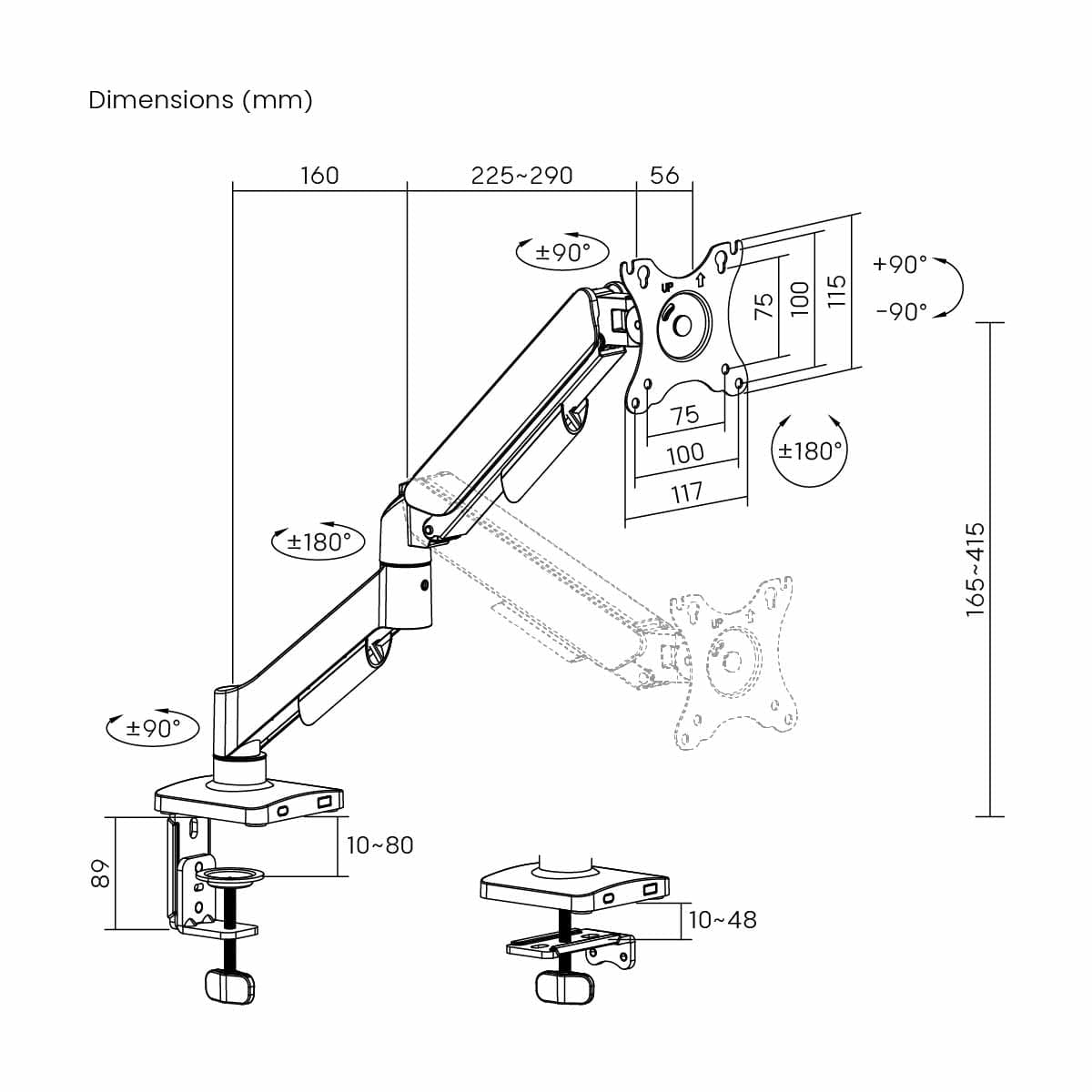

Drawing

Drawing
