Home > Monitor & Desktop Mounts > Ergonomic > Single Monitor Counter Balance Steel Monitor Arm
SH20 C012View SH20 C012 - ImageView SH20 C012 - ImageView SH20 C012 - ImageView SH20 C012 - Image
SH20 C012

SH20 C012

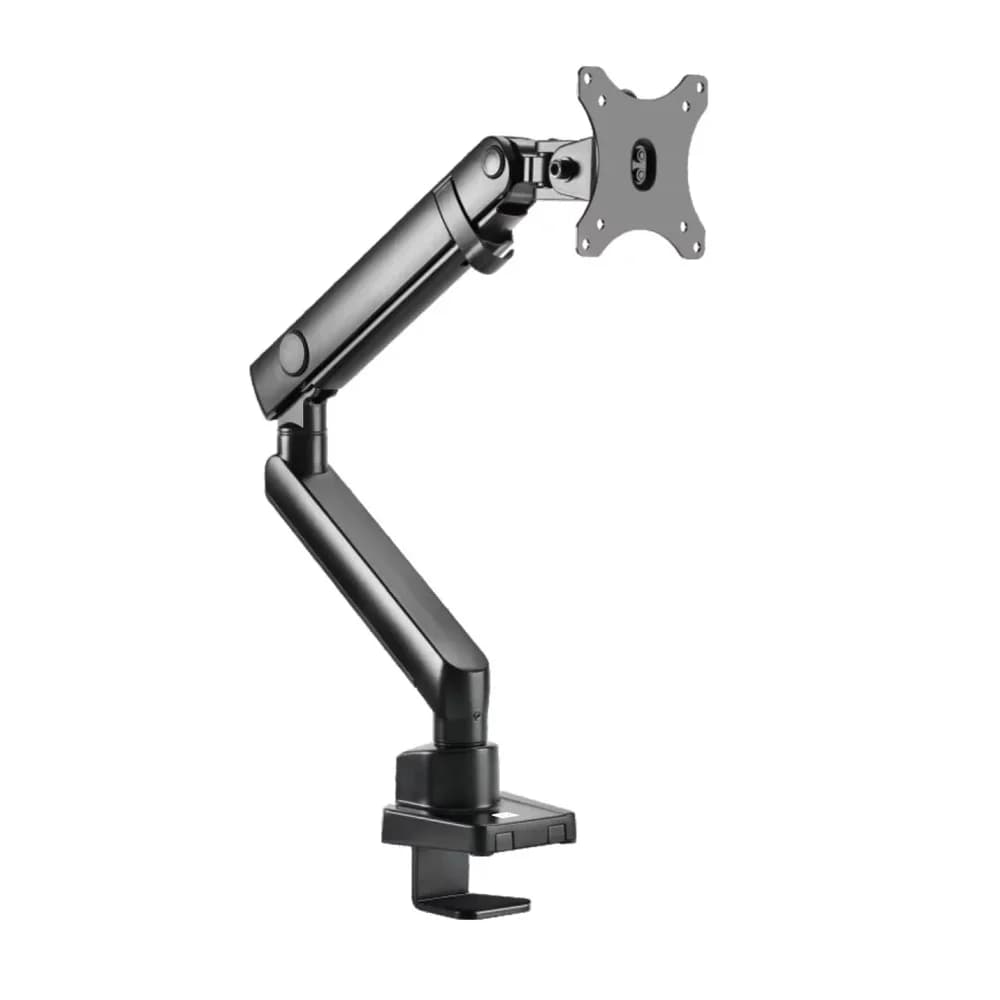

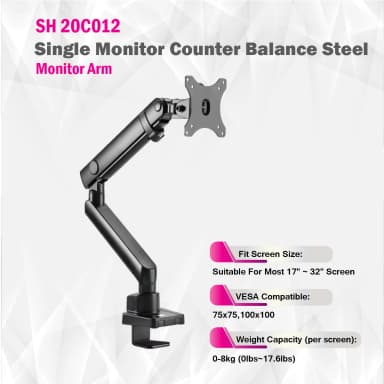

Single Monitor Counter Balance Steel Monitor Arm

17"~32" icon
Screen Size17"~32"
100x100mm icon
Max Vesa100x100mm
8kg icon
Weight Capacity8kg
190-445mm icon
Profile to Wall190-445mm
+90° ~ -90° icon
Tilt Range+90° ~ -90°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm,Single Monitor Counter Balance Steel Monitor Arm

Data Sheet

Overview

Product CategoryMechanical Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black
Weight Capacity (per screen)0-8kg (0lbs~17.6lbs)
Tilt Range+90° ~ -90°
Swivel Range+90°~-90°
Screen Rotation+90° ~ -90°
Arm Full Extension467mm
Product CategoryMechanical Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black

Features

  • Wide CompatibilitySupports most 17" to 32" flat and curved monitors with VESA 100x100mm mounting.
  • Full Motion AdjustabilityOffers ±90° tilt, swivel, and screen rotation for optimal viewing angles.
  • Premium Build QualityConstructed with durable aluminum, steel, and plastic with a matte black powder-coated finish.
  • Flexible InstallationSupports both grommet and clamp mounting with desktop thickness of 10–50mm.
  • Enhanced Cable ManagementIntegrated cable management system ensures a clean and organized workspace.

Description

The SH20 C012 Single Monitor Counter Balance Arm is a premium mechanical spring monitor mount designed for 17" to 32" screens, including curved models. Crafted from aluminum, steel, and plastic with a matte black powder-coated finish, it supports up to 8kg. Enjoy full motion adjustability with ±90° tilt, swivel, and rotation. With 467mm arm extension, integrated cable management, and both clamp and grommet installation options, it's ideal for ergonomic, space-saving setups.

Installation Video

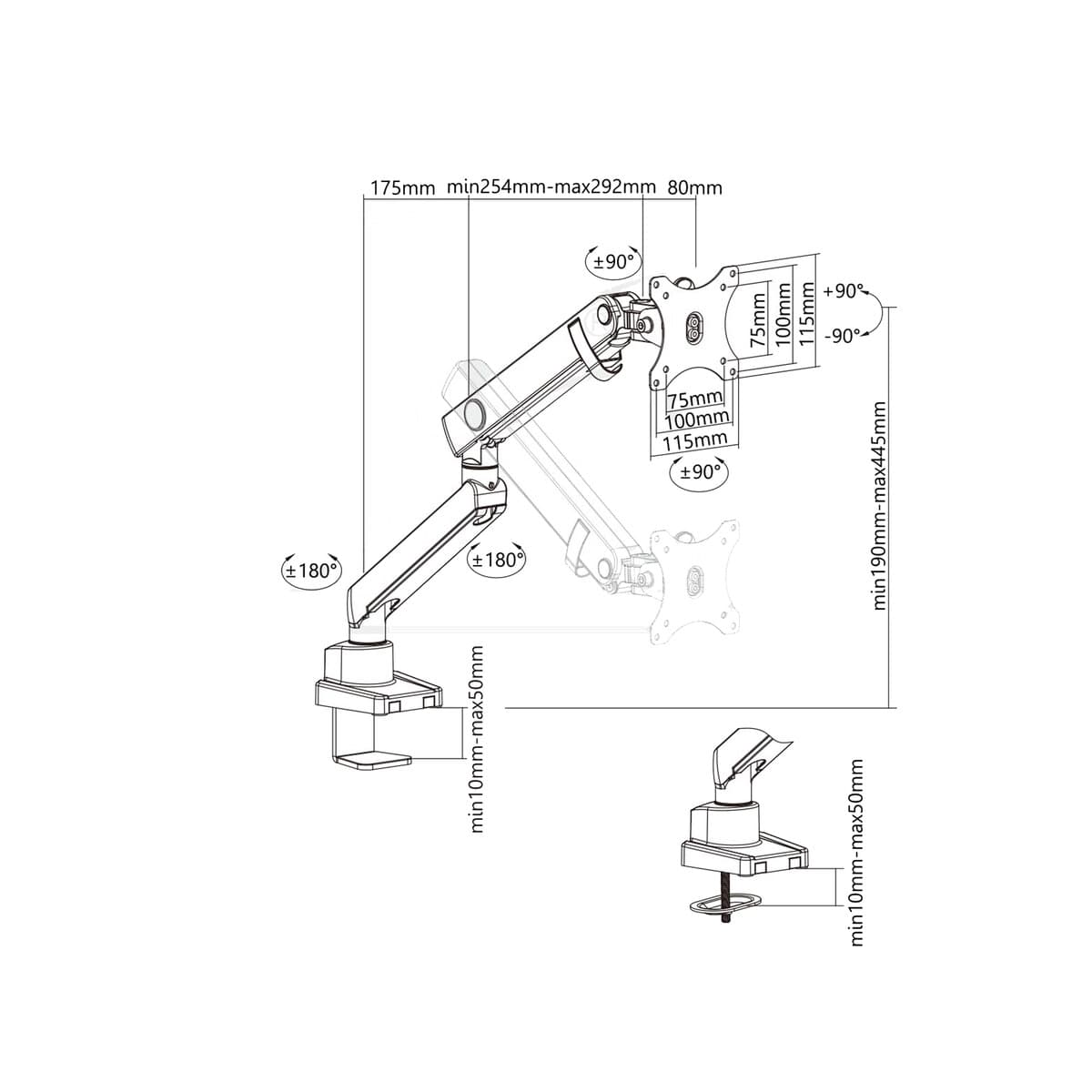

Drawing

Drawing
