Home > Monitor & Desktop Mounts > Ergonomic > Economy Heavy-Duty Dual Monitor Gas Spring Monitor Arm
SH52 C024View SH52 C024 - ImageView SH52 C024 - ImageView SH52 C024 - ImageView SH52 C024 - ImageView SH52 C024 - Image
SH52 C024

SH52 C024

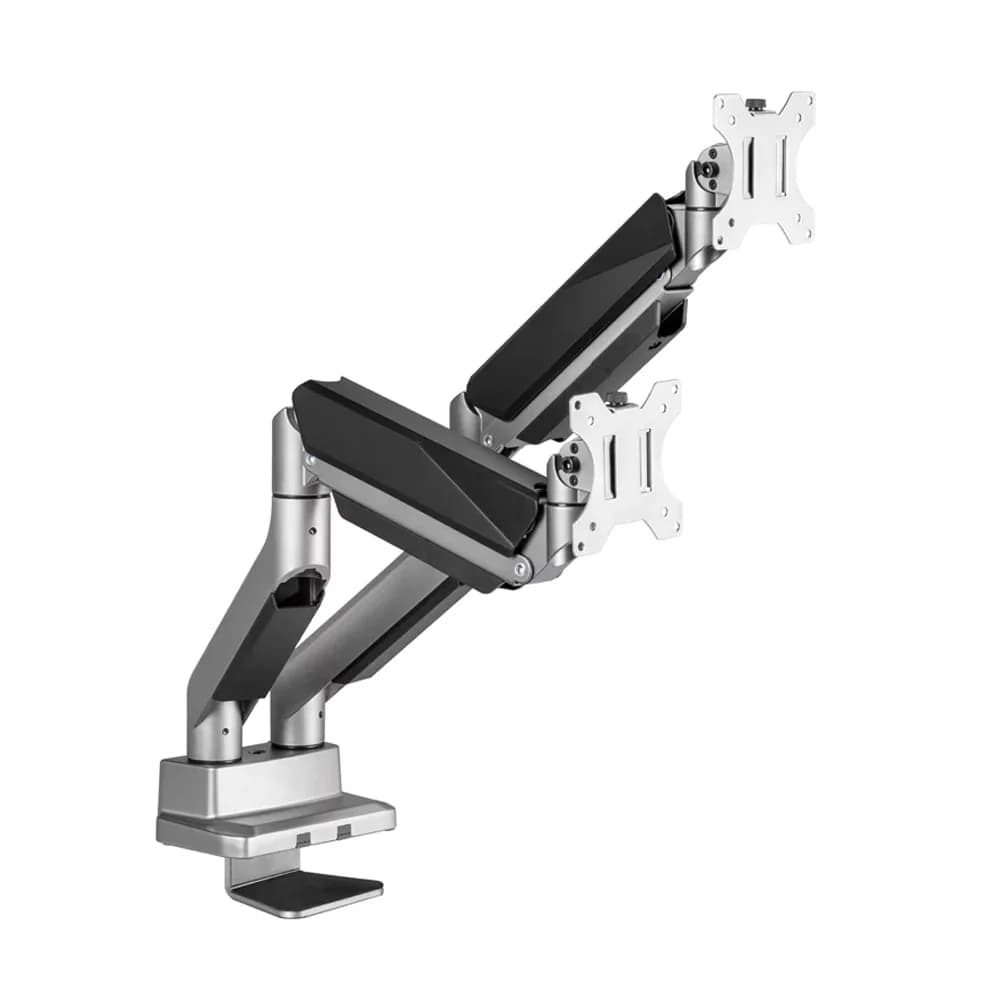

Economy Heavy-Duty Dual Monitor Gas Spring Monitor Arm

17''~35'' icon
Screen Size17''~35''
100x100mm icon
Max Vesa100x100mm
15kg icon
Weight Capacity15kg
+45°~-45° icon
Tilt Range+45°~-45°
+180° ~ -180° icon
Screen Rotation+180° ~ -180°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Economy Heavy-Duty Dual Monitor Gas Spring Monitor Arm

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorSpace Grey
Screen Quantity2
Weight Capacity (per screen)1~15kg (2.2lbs~33lbs)
Max. VESA100x100mm
Tilt Range+45° ~ -45°
Swivel Range+90° ~ -90°
Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminium,Steel,Plastic
Surface FinishPowder Coating
ColorSpace Grey

Features

  • Heavy-Duty SupportAccommodates dual monitors weighing 1 to 15 kg each, suitable for most 17" to 35" screens, including curved displays.
  • Full AdjustabilityOffers +45° to -45° tilt, +90° to -90° swivel, and +180° rotation for optimal ergonomic positioning.
  • Robust ConstructionMade from aluminum, steel, and plastic with a durable powder coating in space grey.
  • Flexible InstallationSupports both clamp and grommet mounting for versatile desk setups.
  • Extended ReachArm extends up to 460mm (18.1") to maximize workspace efficiency and monitor positioning.

Description

The SH52 C024 is a heavy-duty dual monitor gas spring arm designed for versatility and durability. Finished in sleek space grey with a powder coating, it supports most 17" to 35" flat or curved screens weighing 1 to 15 kg each. With adjustable tilt, swivel, and rotation, it offers ergonomic positioning. The arm extends up to 460mm and mounts securely via clamp or grommet for a clean, flexible workspace setup.

Installation Video

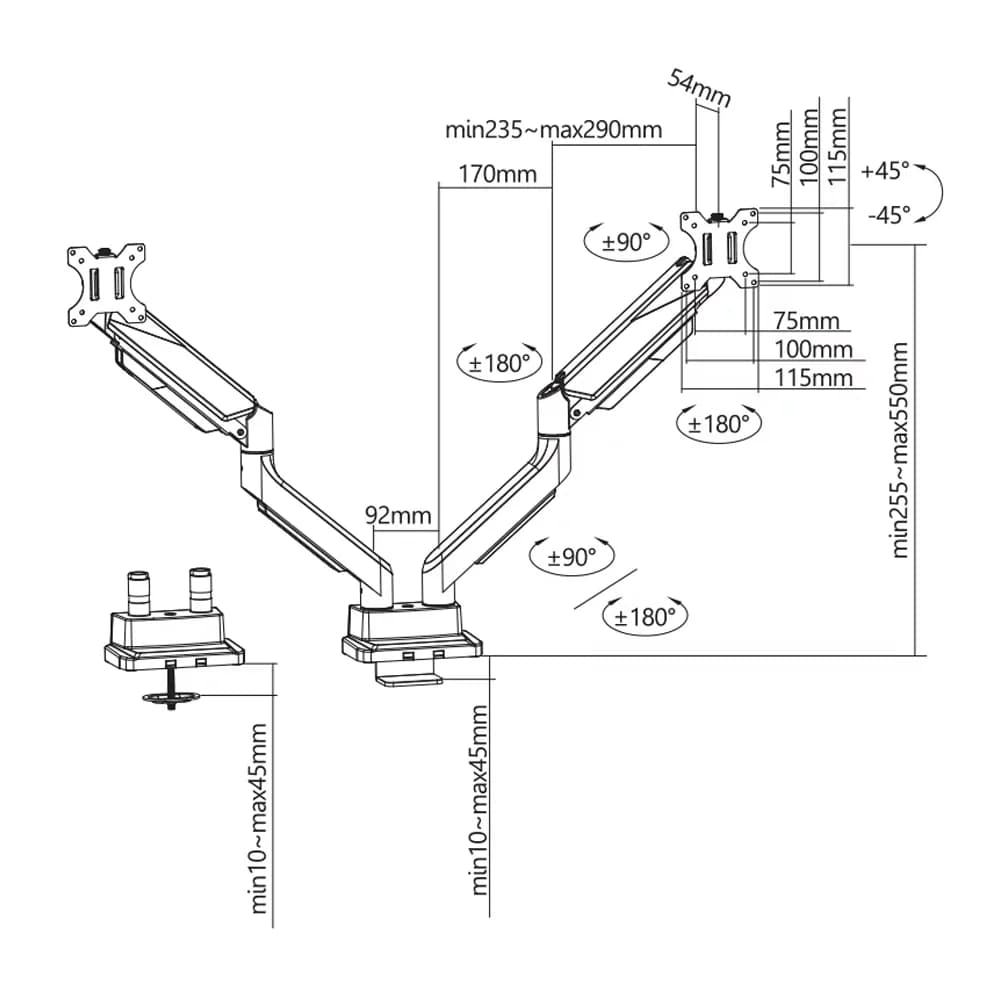

Drawing

Drawing
