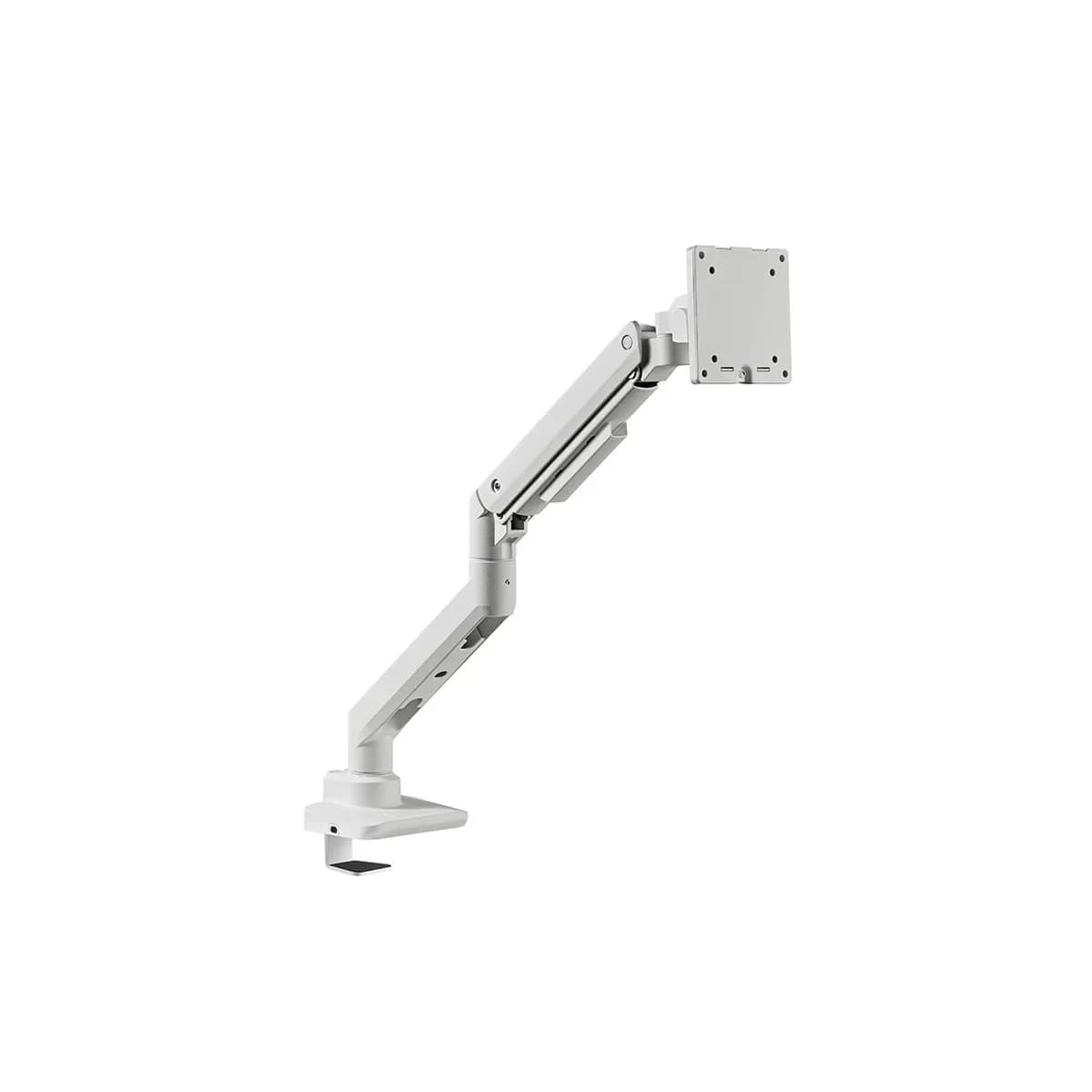

SH69 C012UC

SH69 C012UC

Fabulous Desk-Mounted Heavy-Duty Gas Spring Monitor Arm With USB-A/USB-C Ports

17''~49'' icon
Screen Size17''~49''
100x100mm icon
Max Vesa100x100mm
20kg icon
Weight Capacity20kg
+50°~-20° icon
Tilt Range+50°~-20°
+180° ~ -180° icon
Screen Rotation+180° ~ -180°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Fabulous Desk-Mounted Heavy-Duty Gas Spring Monitor Arm With USB-A/USB-C Ports

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorPolished Aluminum,Jet Black,Fine Texture Black,Fine Texture White
Tilt Range+50° ~ -20°
Swivel Range+90°~-90°
Screen Rotation+180° ~ -180°
Arm Full Extension473mm (18.6")
InstallationClamp,Grommet
Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorPolished Aluminum,Jet Black,Fine Texture Black,Fine Texture White

Features

  • Wide CompatibilitySupports most 17″ to 49″ monitors, including curved screens, with a weight range of 2–20kg per screen.
  • Full Motion FlexibilityOffers +50° ~ -20° tilt, ±90° swivel, and ±180° screen rotation for optimal viewing angles.
  • Built-In USB PortsIncludes 1x USB 3.0 and 1x Type-C port for convenient device connectivity.
  • Quick Release VESA PlateAllows fast and easy monitor installation and removal.
  • Durable Premium BuildConstructed from polished aluminum, steel, and plastic with integrated cable management.

Description

The SH69 C012UC is a premium heavy-duty desk-mounted gas spring monitor arm designed for ultimate flexibility and durability. Compatible with most 17"–49" flat and curved monitors, it supports up to 20kg per screen and offers full motion with tilt, swivel, and 180° rotation. Featuring polished aluminum construction, USB-A and USB-C ports, quick-release VESA, and built-in cable management, it combines sleek design with powerful performance for modern workspaces.

Installation Video

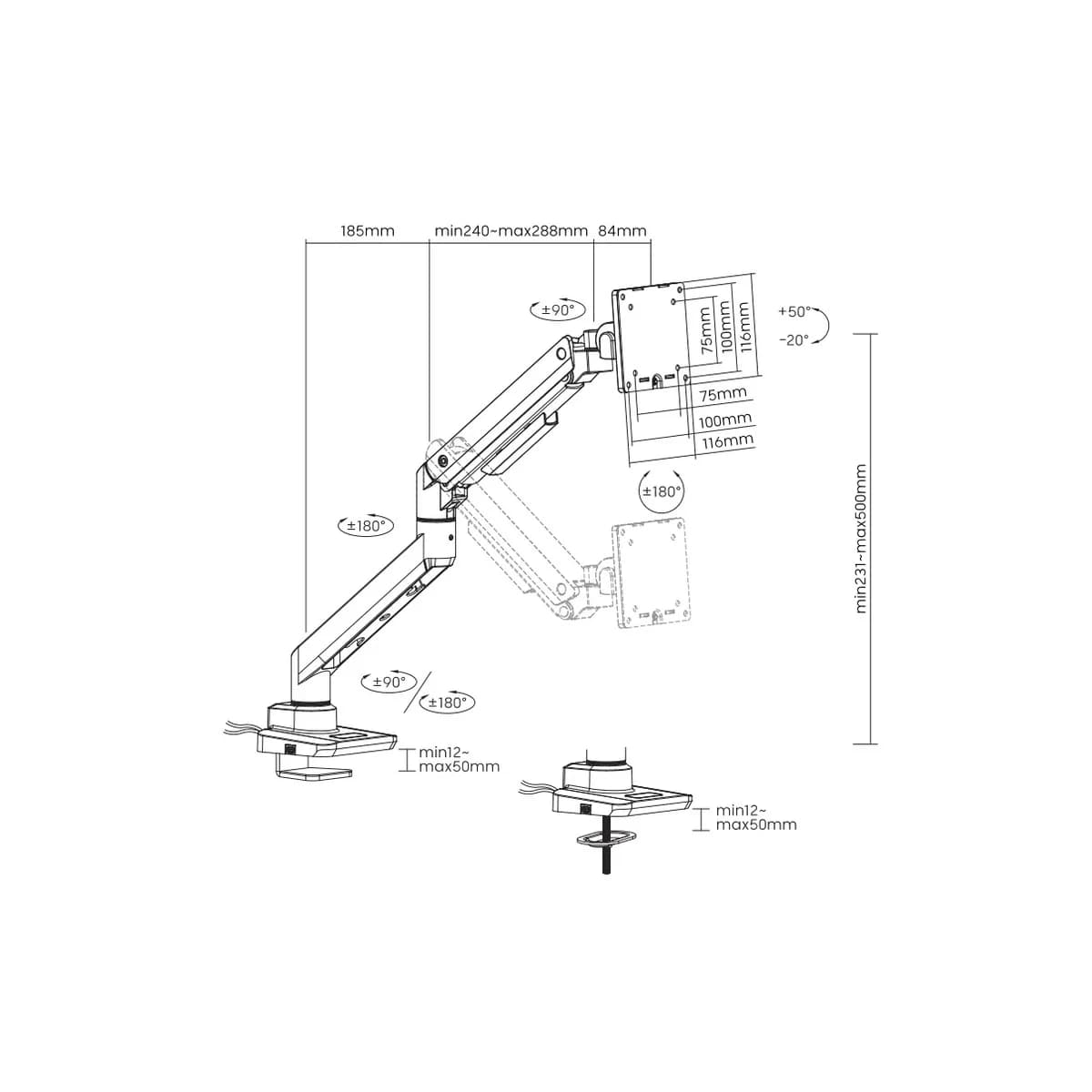

Drawing

Drawing
