Home > Monitor & Desktop Mounts > Ergonomic > Fabulous Pole-Mounted Gas Spring Dual Monitor Arm
SH69 C024PView SH69 C024P - ImageView SH69 C024P - ImageView SH69 C024P - ImageView SH69 C024P - ImageView SH69 C024P - Image
SH69 C024P

SH69 C024P

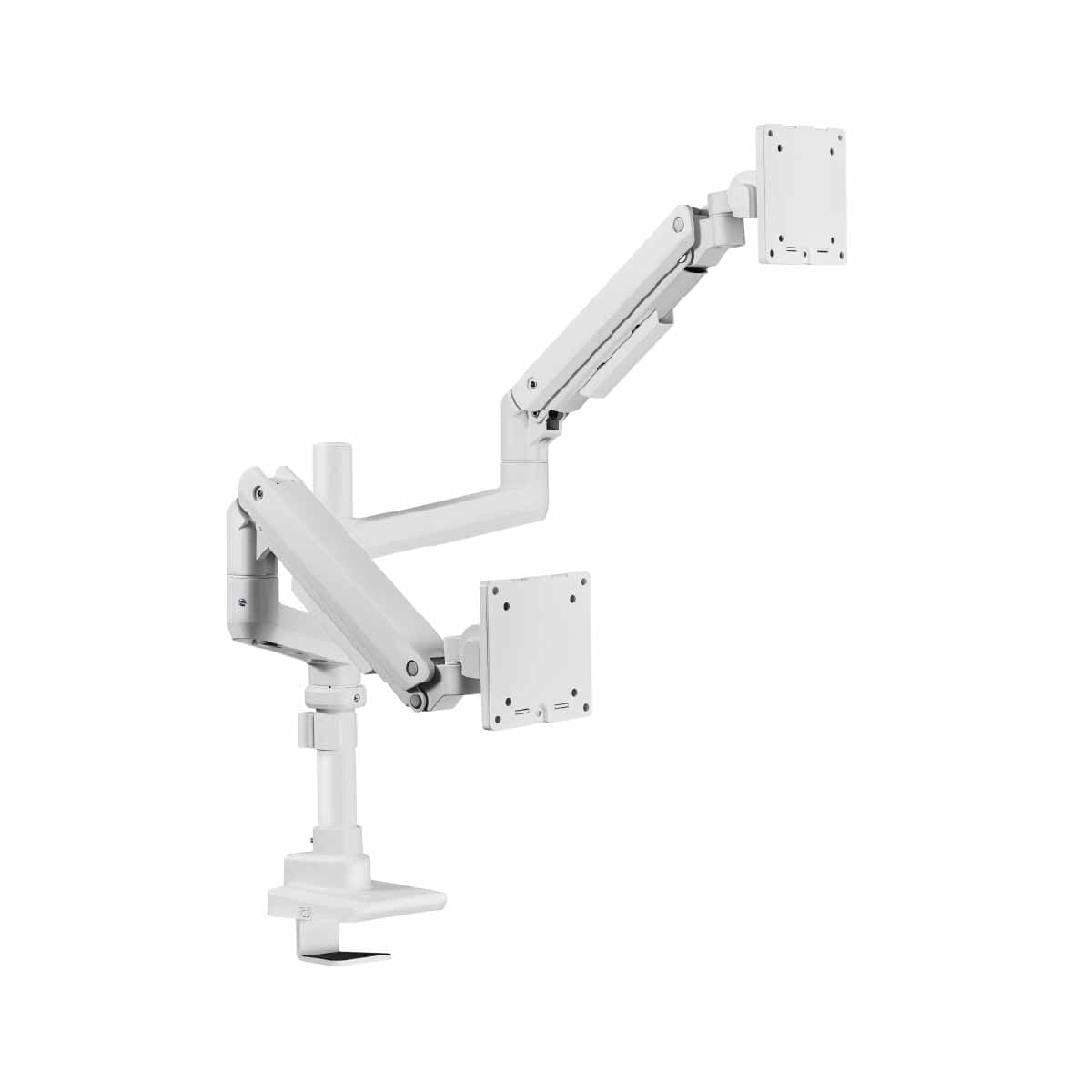

Fabulous Pole-Mounted Gas Spring Dual Monitor Arm

17''~49'' icon
Screen Size17''~49''
100x100mm icon
Max Vesa100x100mm
20kg icon
Weight Capacity20kg
405mm icon
Profile to Wall405mm
+50°~-20° icon
Tilt Range+50°~-20°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Fabulous Pole-Mounted Gas Spring Dual Monitor Arm

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorFine Texture White
Tilt Range+50°~-20°
Swivel Range+90°~-90°
Screen Rotation+180°~-180°
Arm Full Extension425mm (16.7")
Pole Height405mm (15.9")
Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorFine Texture White

Features

  • Wide CompatibilitySupports most 17" to 49" monitors, including curved screens, with a weight capacity of 2–20kg per screen.
  • Flexible AdjustmentOffers +50° to -20° tilt, ±90° swivel, and ±180° screen rotation for optimal ergonomic positioning.
  • Robust ConstructionBuilt with steel, aluminum, and plastic, and finished with durable powder coating in multiple color options.
  • Efficient Cable ManagementKeeps your workstation organized and clutter-free with integrated cable routing channels.
  • Dual Mounting OptionsCompatible with clamp and grommet installations, fitting desktop thicknesses from 12mm to 50mm.

Description

The SH69 C024P is a premium pole-mounted gas spring dual monitor arm designed for superior flexibility and performance. Supporting most 17"–49" flat and curved screens, it holds up to 20kg per screen. With +50° to -20° tilt, ±90° swivel, and ±180° rotation, it ensures ergonomic viewing. Its polished aluminum or textured finishes enhance aesthetics, while integrated cable management and quick release VESA plate streamline workspace organization and setup.

Installation Video

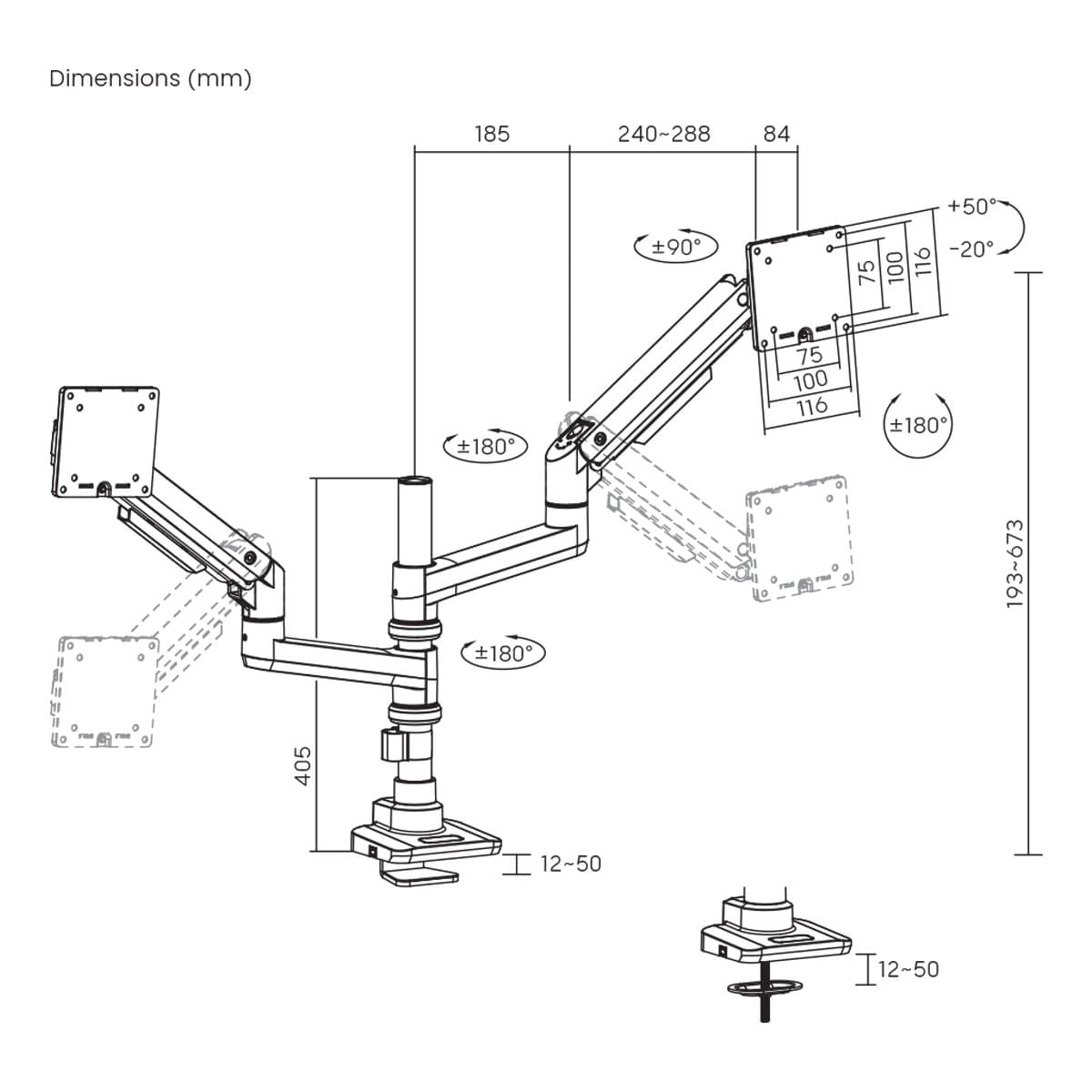

Drawing

Drawing
