Home > Monitor & Desktop Mounts > Ergonomic > Noteworthy Pole-Mounted Heavy-Duty Gas Spring Dual Monitor Arm

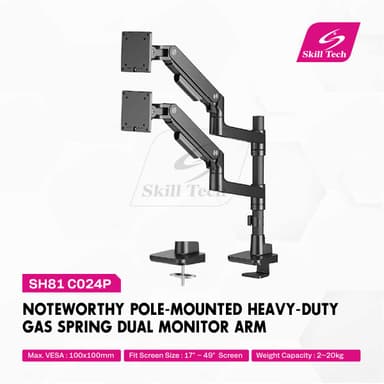

SH81 C024PView SH81 C024P - ImageView SH81 C024P - ImageView SH81 C024P - ImageView SH81 C024P - ImageView SH81 C024P - Image

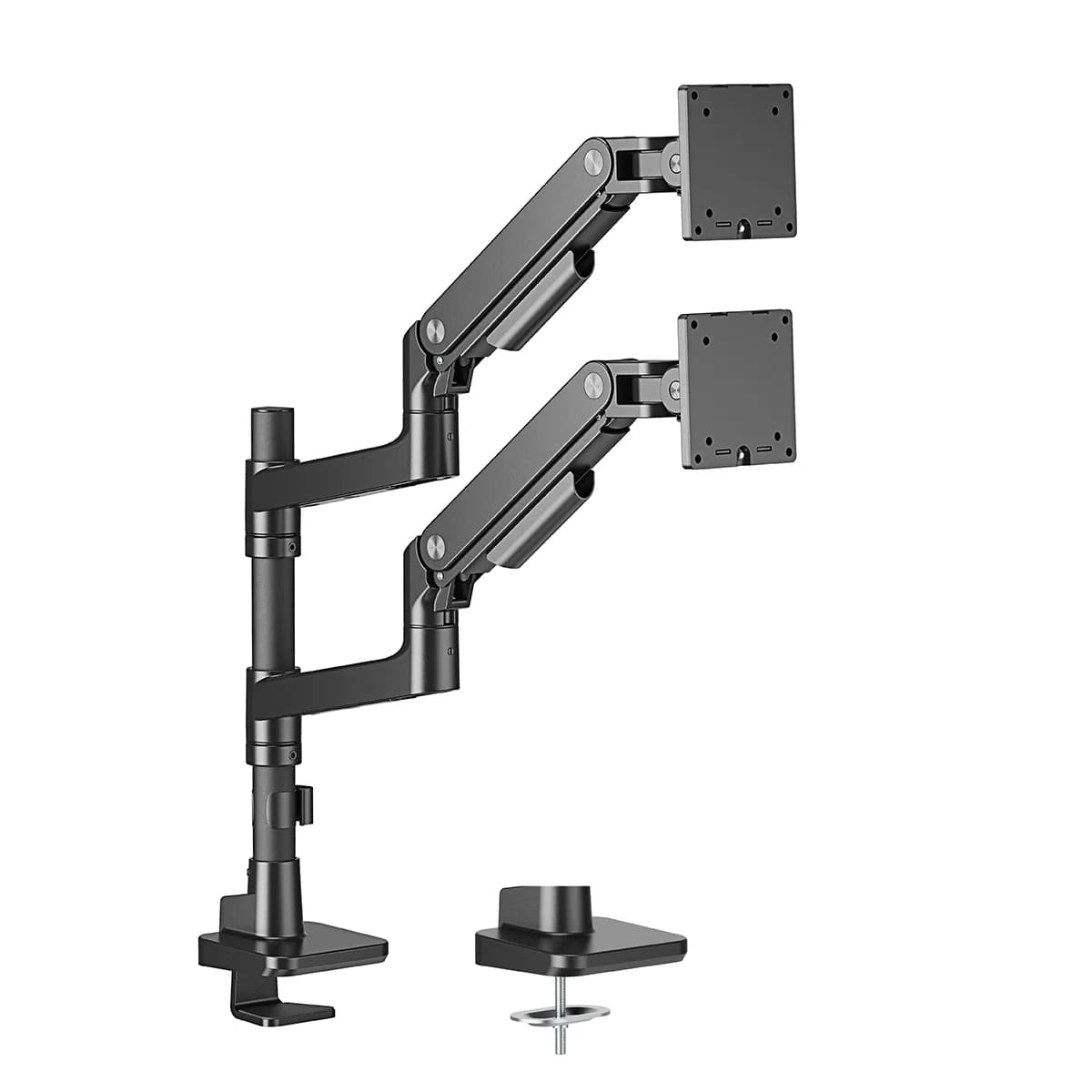

SH81 C024P

SH81 C024P

Noteworthy Pole-Mounted Heavy-Duty Gas Spring Dual Monitor Arm

17''~49'' icon
Screen Size17''~49''
100x100mm icon
Max Vesa100x100mm
20kg icon
Weight Capacity20kg
456mm icon
Profile to Wall456mm
+50°~-20° icon
Tilt Range+50°~-20°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Noteworthy Pole-Mounted Heavy-Duty Gas Spring Dual Monitor Arm

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorFine Texture White,Fine Texture Black,Polished Aluminum
Tilt Range+50°~-20°
Swivel Range+90°~-90°
Screen Rotation+180°~-180°
Arm Full Extension482mm (19")
Pole Height456mm (18")
Product CategoryGas Spring Monitor Arm
RankPremium
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorFine Texture White,Fine Texture Black,Polished Aluminum

Features

  • Heavy-Duty Dual Monitor SupportBuilt to handle monitors from 17" to 49", supporting up to 20kg per screen, including curved displays.
  • Full Motion FlexibilityOffers +50° to -20° tilt, ±90° swivel, and ±180° screen rotation for optimal viewing angles.
  • Extended Reach & Height482mm full arm extension and 456mm pole height allow precise positioning and improved ergonomics.
  • Sturdy Mounting OptionsCompatible with clamp and grommet installations, supporting desktop thicknesses from 12mm to 50mm.
  • Efficient Cable ManagementIntegrated routing system keeps cables organized and the workspace clutter-free.

Description

The SH81 C024P is a premium, heavy-duty pole-mounted gas spring dual monitor arm designed for 17"–49" screens, including curved displays. Built with steel, aluminum, and plastic, it supports up to 20kg per screen. Enjoy full motion flexibility with +50° to -20° tilt, ±90° swivel, and 180° rotation. Its 482mm arm extension and integrated cable management offer ergonomic comfort and workspace organization. Clamp or grommet installation fits desktops 12–50mm thick.

Installation Video

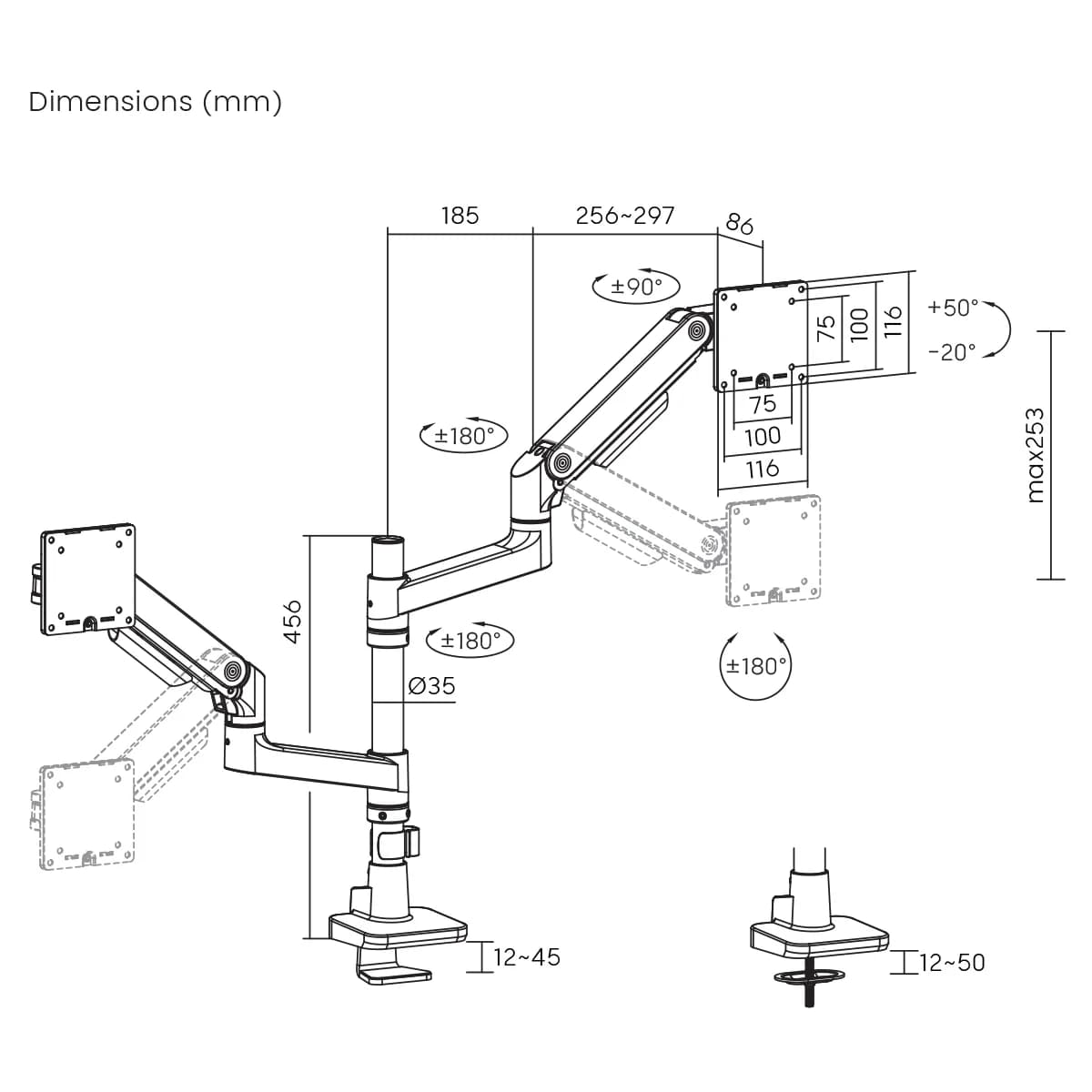

Drawing

Drawing
