Home > Monitor & Desktop Mounts > Ergonomic > Titan Heavy-Duty Gas Spring Monitor Arm
SH87 C012View SH87 C012 - ImageView SH87 C012 - ImageView SH87 C012 - ImageView SH87 C012 - Image
SH87 C012

SH87 C012

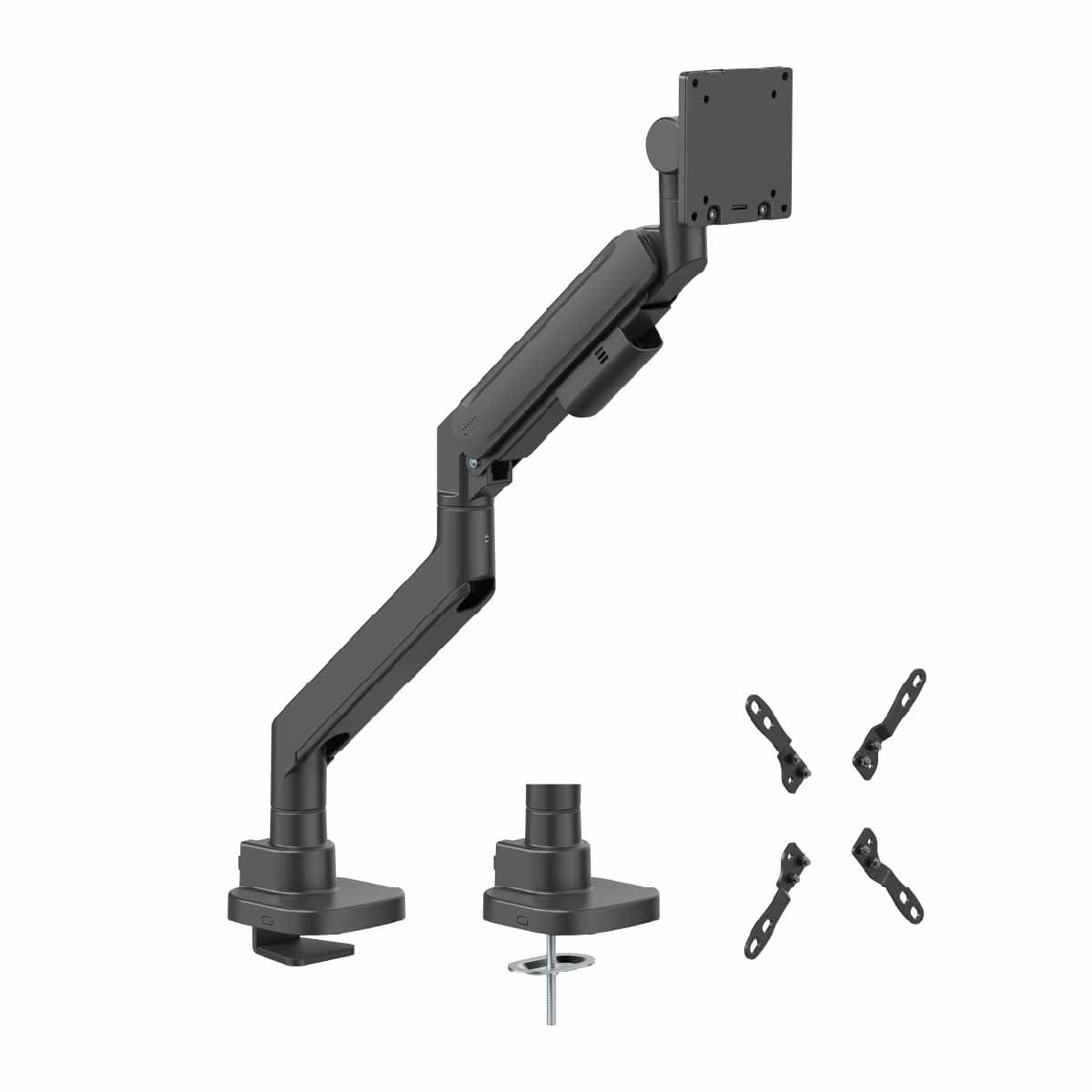

Titan Heavy-Duty Gas Spring Monitor Arm

24''~57'' icon
Screen Size24''~57''
200x200mm icon
Max Vesa200x200mm
27kg icon
Weight Capacity27kg
485mm icon
Profile to Wall485mm
+60°~-20° icon
Tilt Range+60°~-20°

Tags: Steel Monitor Arm, Counterbalance Monitor Arm, Monitor Arm with USB Port, Monitor Arm, Display Stand, Desk Mounted Monitor Stand, Monitor Stand, Heavy-Duty Monitor Arm, Gas Spring Monitor Arm, Single Monitor Stand, Monitor Arm Mount, Height Adjustable Monitor Stand, Adjustable Monitor Mount, Titan Heavy-Duty Gas Spring Monitor Arm

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankStandard
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black,Matte White
Tilt Range+60°~-20°
Swivel Range+90°~-90°
Screen Rotation+90°~-90°
Arm Full Extension485mm (19.1")
InstallationClamp,Grommet
Product CategoryGas Spring Monitor Arm
RankStandard
MaterialSteel,Aluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black,Matte White

Features

  • High-Capacity SupportHolds a single 24″~57″ monitor with a strong 2–27kg load capacity (22kg for curved screens).
  • Smooth Gas Spring AdjustmentEnables effortless +60°~-20° tilt, +90°~-90° swivel, and full rotation for ideal viewing.
  • Extended Reach485mm arm extension delivers flexible positioning for large displays.
  • Robust ConstructionSteel–aluminum build with powder coating ensures durability and stability.
  • User-Friendly DesignQuick-release VESA (200×200mm), integrated cable management, and clamp/grommet installation.

Description

The SH87 C012 Titan Heavy-Duty Gas Spring Monitor Arm is built for large professional displays, supporting a single 24″~57″ screen with a robust 2~27kg capacity (22kg for curved). Its gas spring mechanism delivers smooth tilt, swivel, and rotation, while the 485mm extension ensures optimal viewing. Designed with durable steel–aluminum construction, it offers clamp or grommet installation, a quick-release VESA plate, and integrated cable management for a clean workspace.

Installation Video

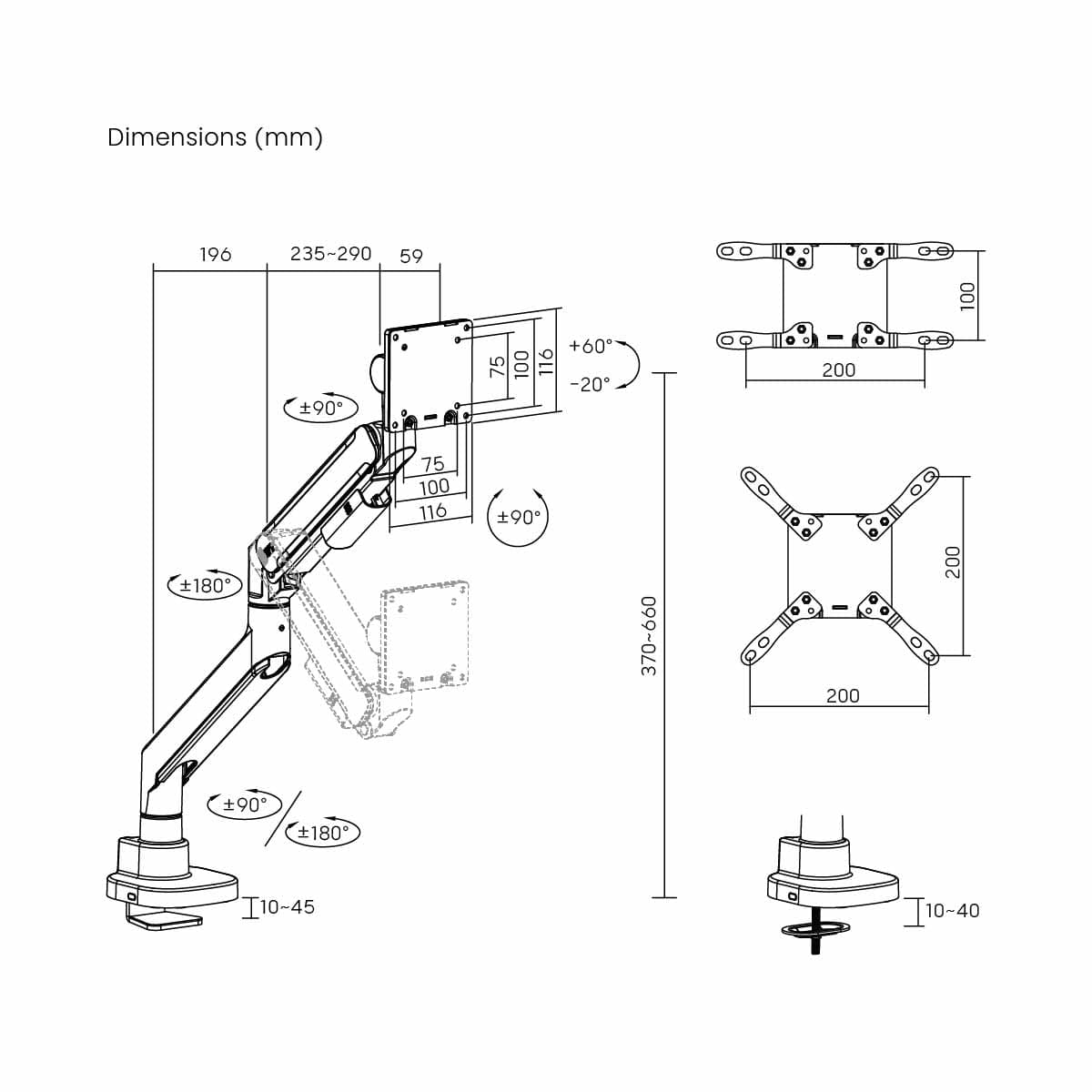

Drawing

Drawing
