Home > Monitor & Desktop Mounts > Ergonomic > Titan Heavy-Duty Pole-Mounted Gas Spring Monitor Arm With USB-A And USB-C Ports
SH87 C012UCPView SH87 C012UCP - ImageView SH87 C012UCP - ImageView SH87 C012UCP - ImageView SH87 C012UCP - ImageView SH87 C012UCP - ImageView SH87 C012UCP - Image
SH87 C012UCP

SH87 C012UCP

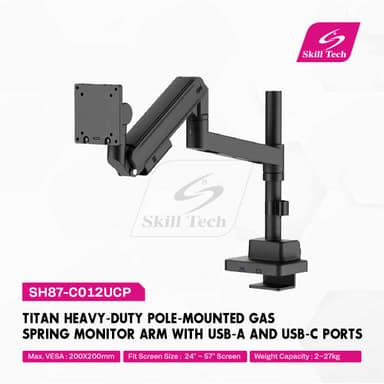

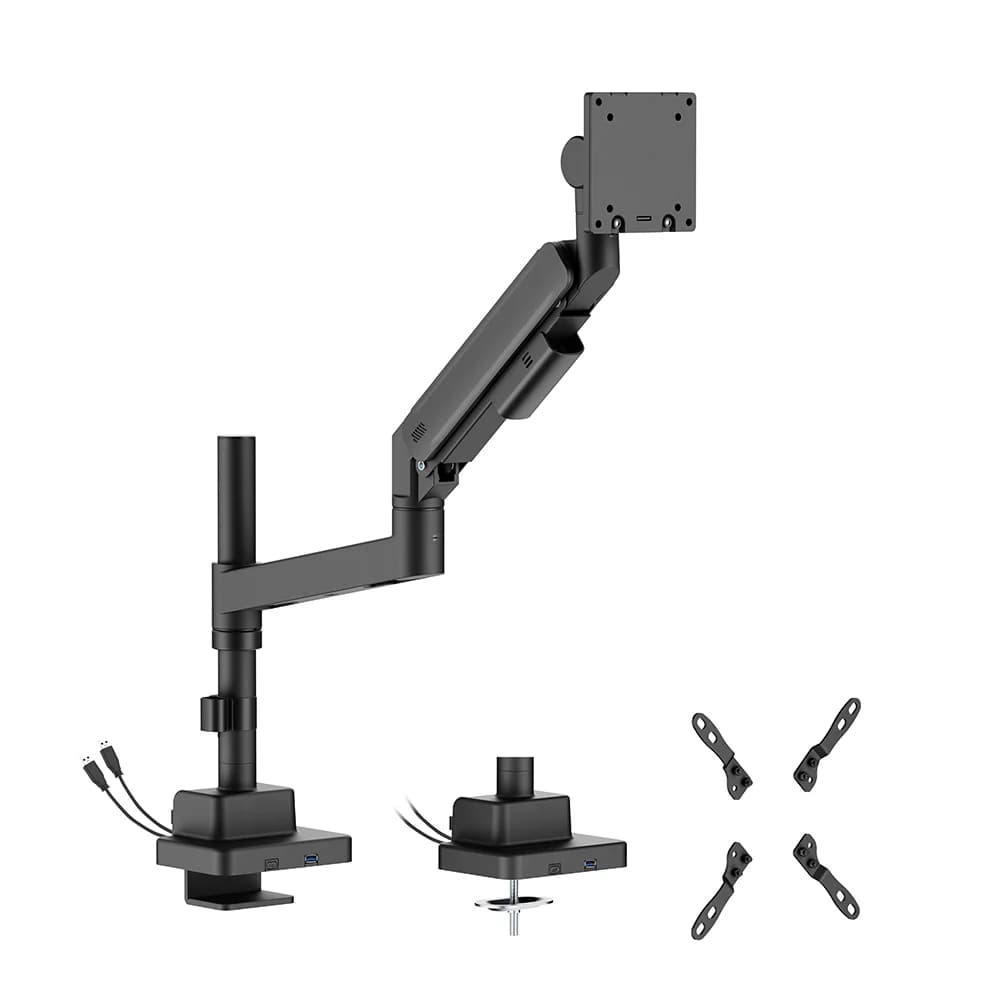

Titan Heavy-Duty Pole-Mounted Gas Spring Monitor Arm With USB-A And USB-C Ports

24''~57'' icon
Screen Size24''~57''
200x200mm icon
Max Vesa200x200mm
27kg icon
Weight Capacity27kg
385mm icon
Profile to Wall385mm
+60°~-20° icon
Tilt Range+60°~-20°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Titan Heavy-Duty Pole-Mounted Gas Spring Monitor Arm With USB-A And USB-C Ports

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankStandard
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black,Matte White
Tilt Range+60° ~ -20°
Swivel Range+90°~-90°
Screen Rotation+90° ~ -90°
Arm Full Extension550mm (21.7")
Pole Height385mm (15.2")
Product CategoryGas Spring Monitor Arm
RankStandard
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black,Matte White

Features

  • Wide CompatibilitySupports most 24″ to 57″ monitors, including curved screens, with VESA patterns up to 200x200mm.
  • High Load CapacityHolds up to 27kg (59.4lbs) for flat screens and 22kg (48.4lbs) for curved displays.
  • Full Motion RangeOffers +60°-20° tilt, +90°-90° swivel, and +90°~-90° screen rotation.
  • USB-A & USB-C PortsBuilt-in USB 3.0 and Type-C ports for convenient device connectivity.
  • Ergonomic & Durable DesignConstructed from steel, aluminum, and plastic with powder coating, plus integrated cable management and a quick release VESA plate.

Description

The SH87-C012UCP Titan Gas Spring Monitor Arm is a heavy-duty, pole-mounted solution built for large screens from 24″ to 57″, supporting up to 27kg. Its premium gas spring mechanism allows smooth tilt, swivel, and rotation adjustments. With USB-A and USB-C ports for connectivity, it offers both functionality and convenience. Designed with strong steel and aluminum construction, this arm features integrated cable management and a quick release VESA plate for easy setup.

Installation Video

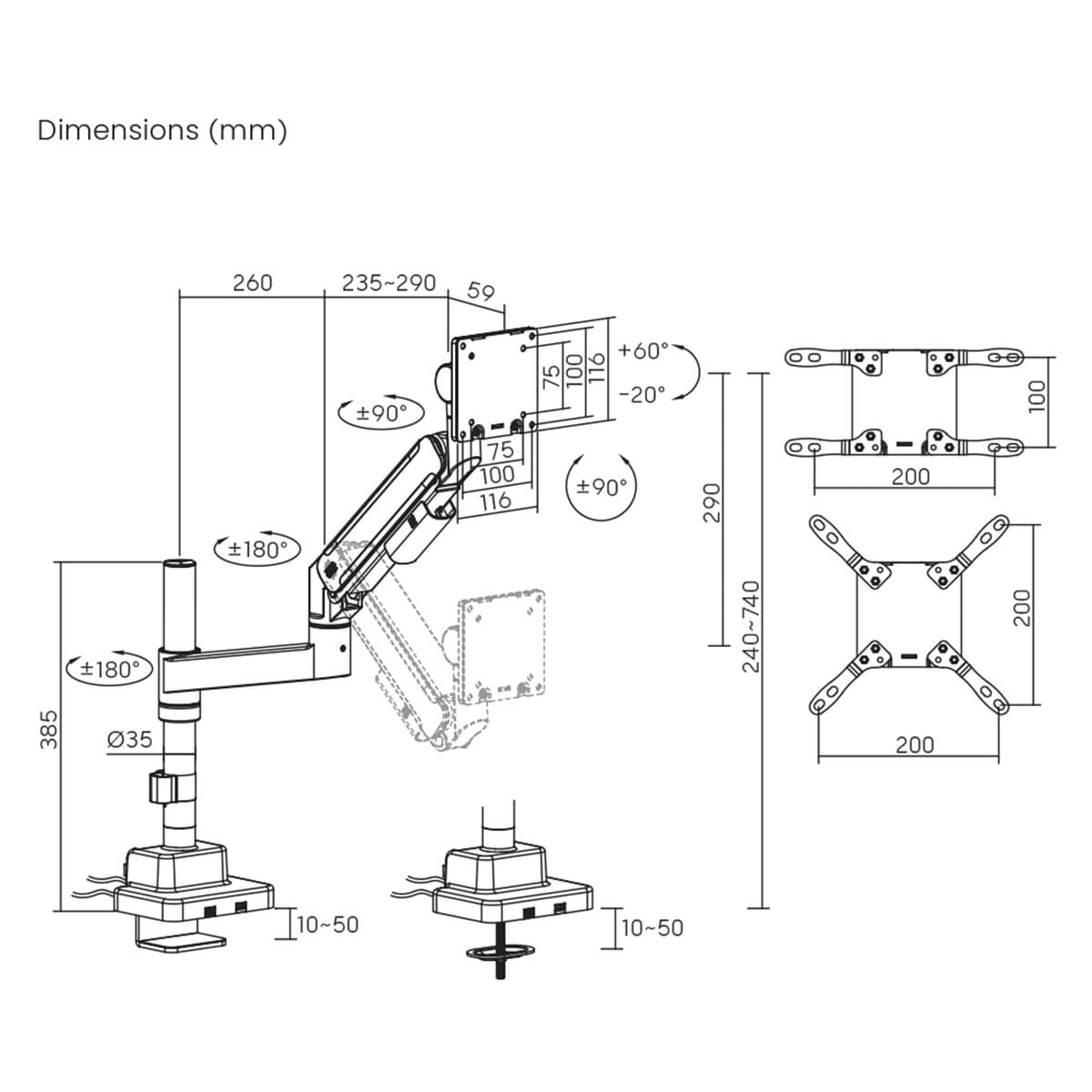

Drawing

Drawing
