Home > Monitor & Desktop Mounts > Ergonomic > Gas Spring Monitor Mount
SHW 1014HView SHW 1014H - ImageView SHW 1014H - ImageView SHW 1014H - ImageView SHW 1014H - ImageView SHW 1014H - Image

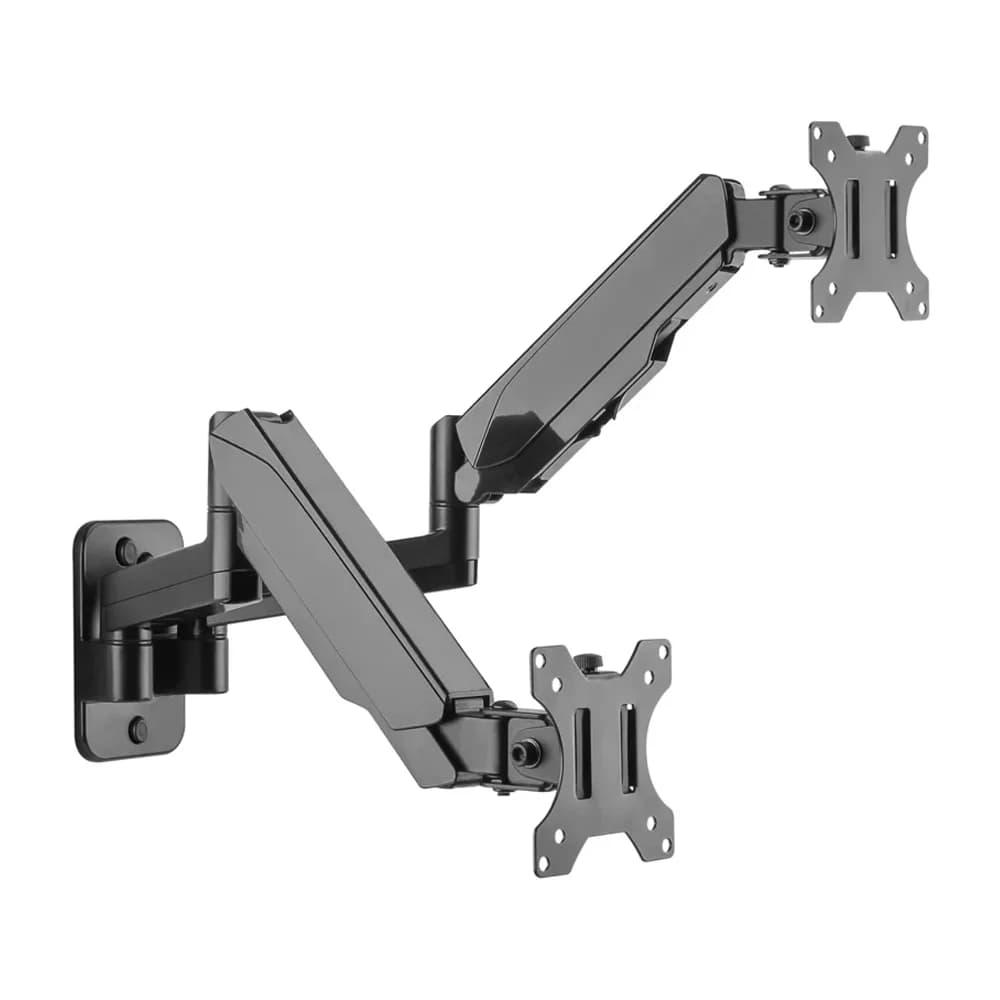

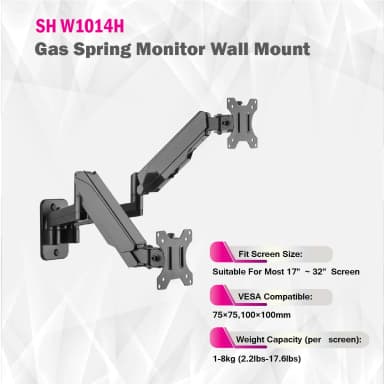

SHW 1014H

SHW 1014H

Gas Spring Monitor Mount

17''~32'' icon
Screen Size17''~32''
100x100mm icon
Max Vesa100x100mm
8kg icon
Weight Capacity8kg
99mm icon
Profile to Wall99mm
+35° ~ -35° icon
Tilt Range+35° ~ -35°

Tags: Ergonomic Mounts, Ergonomic, Mounts, Gas Spring Monitor Arm, Monitor Arm, Gas Spring Monitor Arm in uae, Gas Spring Monitor Arm in dubai, Best Gas Spring Monitor Arm, Gas Spring Monitor Mount

Data Sheet

Overview

Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black,Metallic Grey
Max. VESA100×100mm
Tilt Range+35° ~ -35°
Swivel Range+90° ~ -90°
Screen Rotation+180° ~ -180°
Arm Full Extension422mm (16.6″)
Product CategoryGas Spring Monitor Arm
RankStandard
MaterialAluminum,Plastic
Surface FinishPowder Coating
ColorMatte Black,Metallic Grey

Features

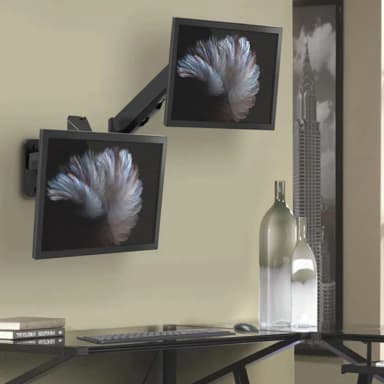

  • Wall-Mounted DesignSaves desk space while supporting dual monitors for a clean and organized setup.
  • Wide CompatibilityFits most 17″ to 32″ flat or curved screens with a weight capacity of 1-8kg per screen.
  • Full Motion AdjustabilityOffers +35° to -35° tilt, ±90° swivel, and 180° screen rotation for ergonomic viewing.
  • Compact ProfileMinimal profile with only 99mm depth for a sleek, low-profile installation.
  • Integrated Cable ManagementKeeps cables tidy and out of sight for a clutter-free workspace.

Description

The SHW 1014H Gas Spring Monitor Mount is a standard rank dual monitor arm designed for wall mounting. Made from durable aluminum and plastic with a powder-coated finish, it supports most 17″ to 32″ flat or curved screens weighing 1-8kg each. Featuring a full range of motion—tilt, swivel, and rotation—and a 422mm extension, it optimizes ergonomic comfort while maintaining a sleek, low-profile design with integrated cable management.

Installation Video

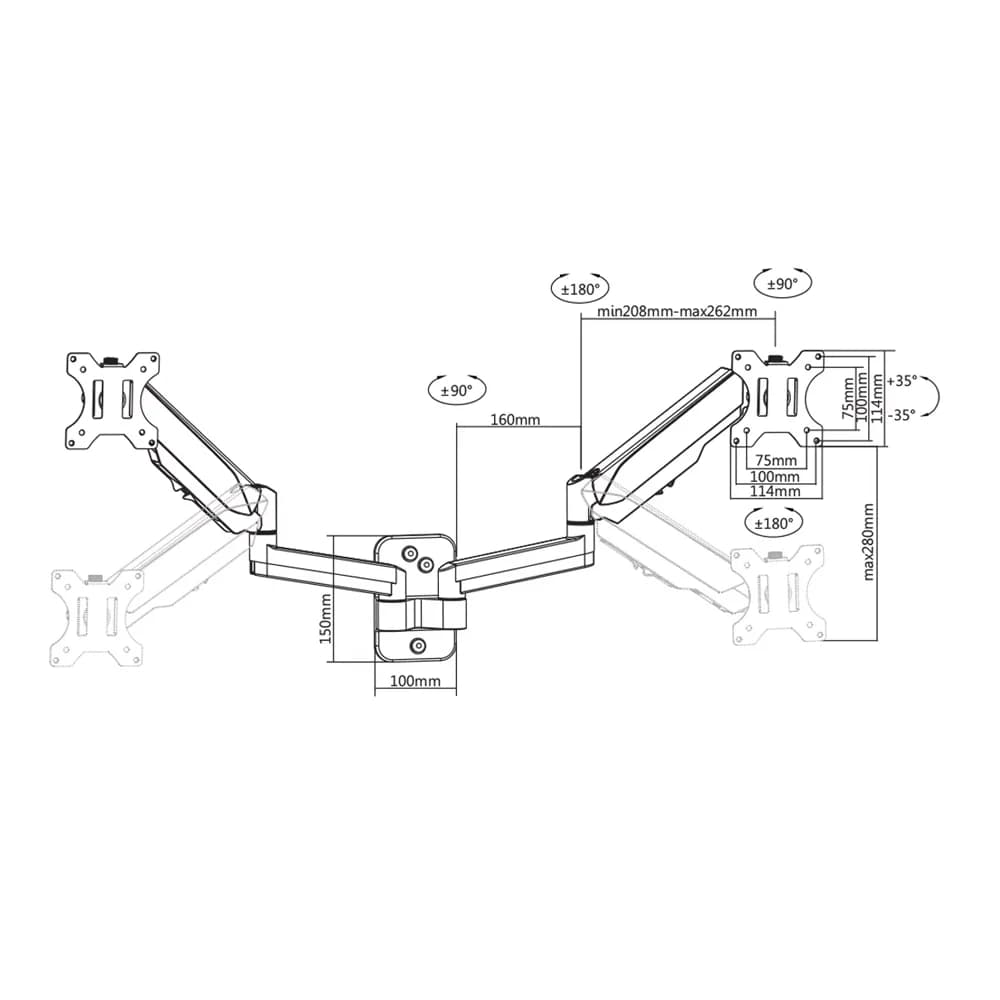

Drawing

Drawing
