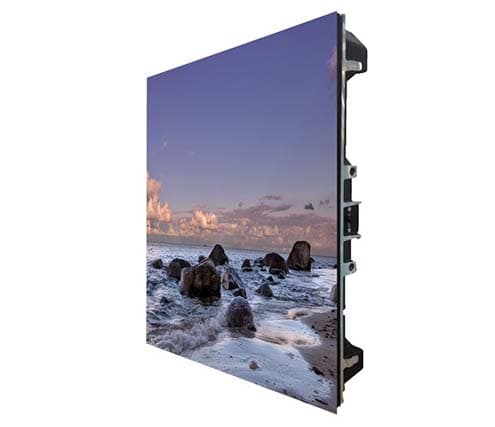

MW7780-FO-D

Outdoor Fixed LED Display Screen

Tags: LED Display, LED, Display, LED Display in uae, LED Display in dubai, Best LED Display, Outdoor Fixed LED Display Screen

Data Sheet

Overview

Pixel PitchP8
Module Resolution (W*H)40x20
Module Dimension (mm)320x160
Cabinet Dimension (W*H*D) (mm)W960×H960×D139?±0.5?
Warranty2 Year
Viewing Angle120°/120°
Brightness5500
Power supply (V)AC 100 to 240
Pixel Density15625
Grayscale (bit)14
Pixel PitchP8
Module Resolution (W*H)40x20
Module Dimension (mm)320x160
Cabinet Dimension (W*H*D) (mm)W960×H960×D139?±0.5?
Warranty2 Year

Features

  • P8 Pixel Pitch with 14-bit GrayscaleBalances resolution and performance for vivid outdoor visuals.
  • Optional High Contrast RatiosChoose copper or golden wire variants for 3000:1 to 6000:1 contrast.
  • High Brightness (5500 nits)Ensures excellent visibility even in bright daylight.
  • Strong SPCC Metal ConstructionOffers structural strength and resistance to outdoor elements.
  • Wide Viewing Angles (120°/120°)Maintains clear visibility from multiple perspectives.

Description

The MW7780-FO-D is a rugged outdoor fixed LED display with a P8 pixel pitch and cabinet resolution of 120×120, offering 5500 nits brightness and sharp 14-bit grayscale imagery. Constructed from SPCC metal plate, it’s designed for durability and weather resistance. Featuring multiple contrast ratio options based on wire type and wide 120°/120° viewing angles, this display is ideal for impactful outdoor visuals. Includes a 2-year warranty for reliable long-term use.

Drawing

No drawing available
