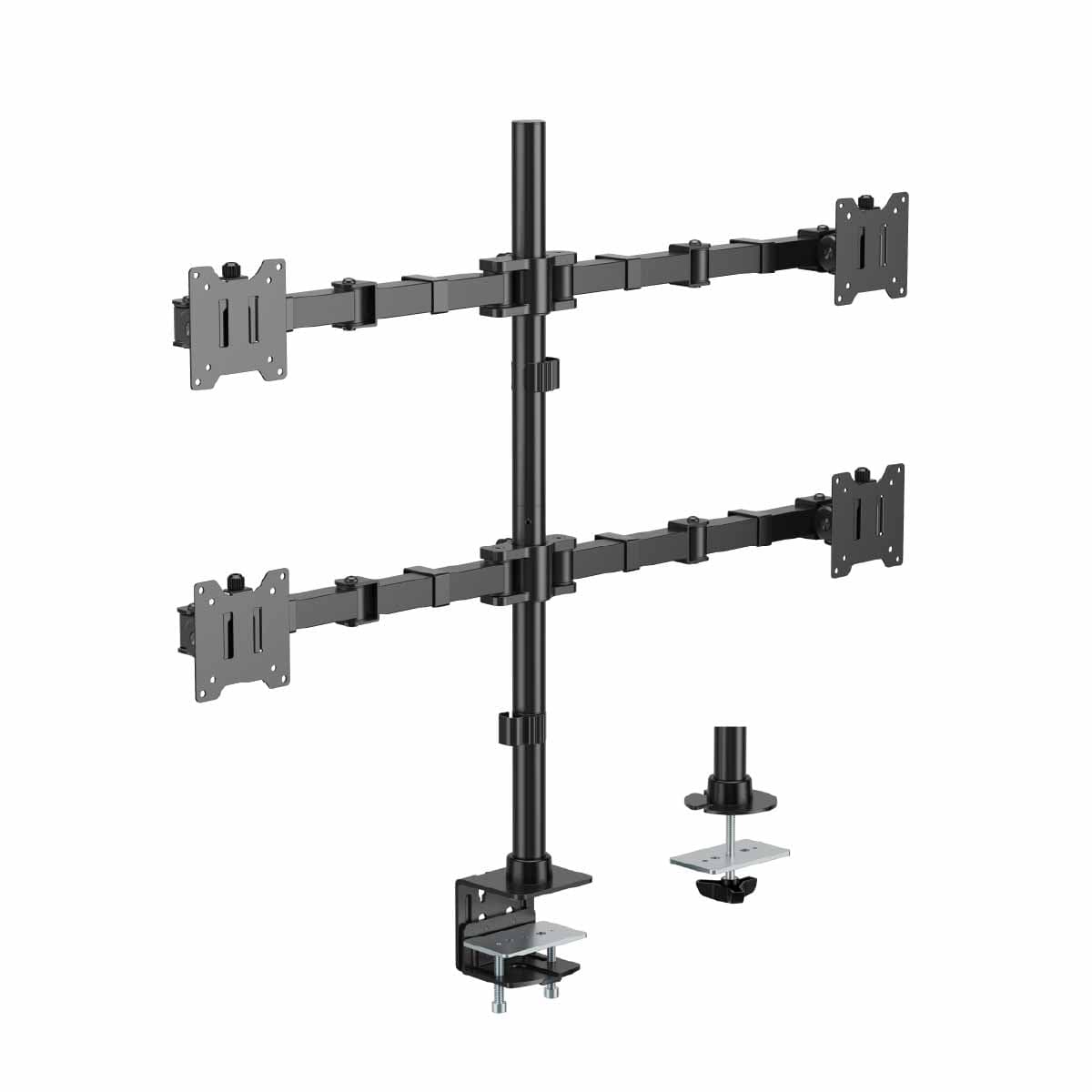

SH91 C048

Heavy-Duty Articulating Quad Monitor Arm

Screen Size17''~35''

Max Vesa100x100mm

Weight Capacity15kg

Tilt Range+50°~-20°

Swivel Range+90°~-90°

Tags: Monitor Accessory, Monitor Arm, Monitor Stand, Heavy-Duty Monitor Arm, Heavy-Duty Articulating Quad Monitor Arm

Overview

Product Category	Articulating Monitor Arm
Rank	Standard
Material	Steel,Aluminum,Plastic
Surface Finish	Powder Coating
Color	Matte Black

Tilt Range	+50°~-20°
Swivel Range	+90°~-90°
Screen Rotation	+180°~-180°

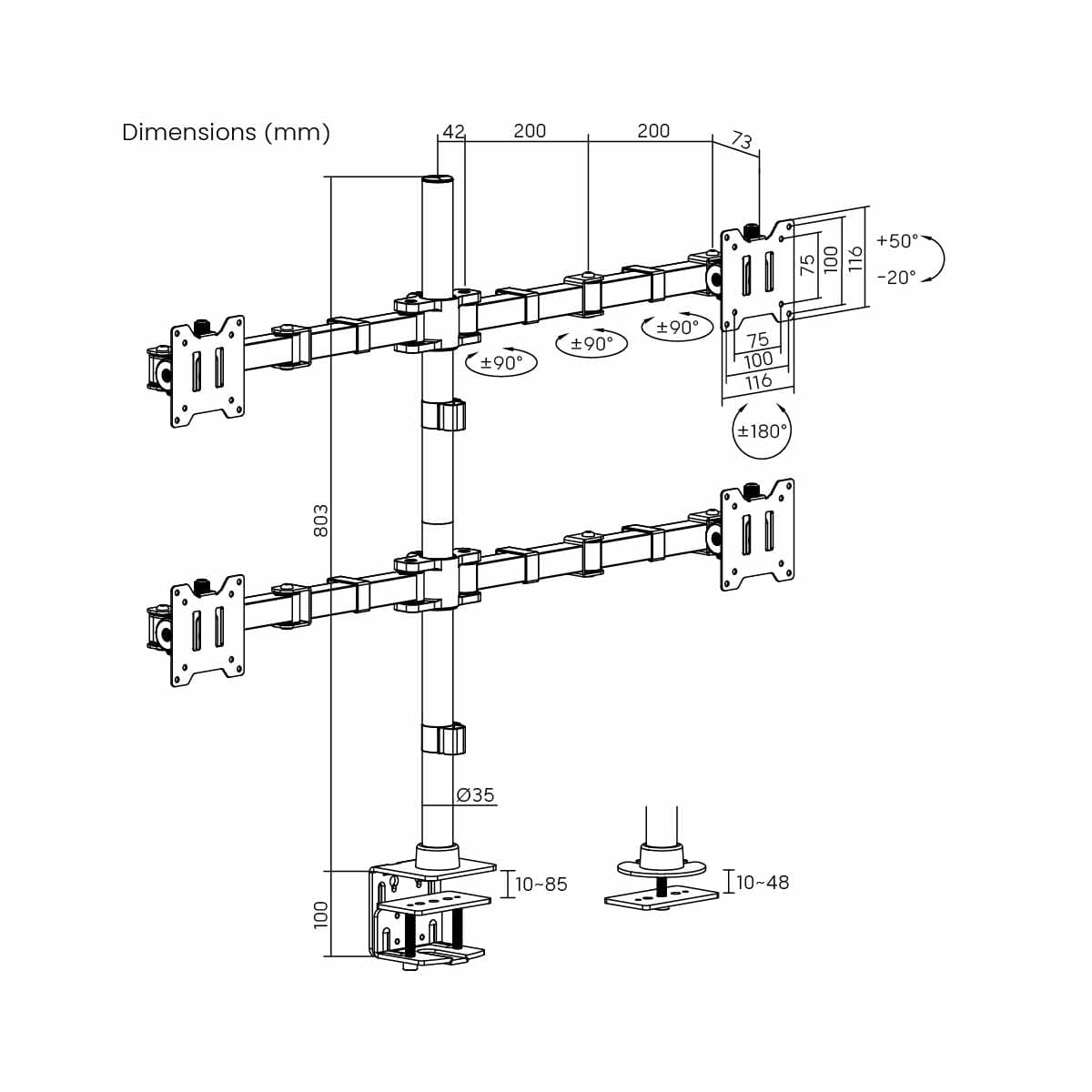

Arm Full Extension	442mm (17.4")
Pole Height	803mm (31.6")

Product Category	Articulating Monitor Arm
Rank	Standard
Material	Steel,Aluminum,Plastic
Surface Finish	Powder Coating
Color	Matte Black

Features

Quad-Screen SupportHolds up to four 17″–35″ monitors, each weighing up to 15kg (33lbs).
Flexible Adjustment+50° to -20° tilt, ±90° swivel, and ±180° rotation for ergonomic multi-screen viewing.
Robust ConstructionMade from steel, aluminum, and plastic with a matte black powder-coated finish.
Extended Reach442mm (17.4″) arm extension and tall 803mm (31.6″) pole for optimal positioning.
Easy InstallationQuick release VESA plates, clamp or grommet mount, and integrated cable management.

Description

The SH91 C048 articulating monitor arm holds four 17″–35″ screens (max. VESA 100×100mm), each supporting up to 15kg (33lbs). Built from steel, aluminum, and plastic with a matte black powder-coated finish, it offers +50° to -20° tilt, ±90° swivel, and ±180° rotation. Features a 442mm (17.4″) arm extension, tall 803mm (31.6″) pole, quick release VESA plates, clamp or grommet installation, and integrated cable management for a tidy, ergonomic workspace.
