Home > LED Display > Cabinet Indoor > Indoor Fixed LED Display Unit
MW7712-FI-EC
MW7712-FI-EC

MW7712-FI-EC

Indoor Fixed LED Display Unit

Tags: LED Display, LED, Display, LED Display in uae, LED Display in dubai, Best LED Display, Indoor Fixed LED Display Unit

Data Sheet

Overview

Pixel PitchP1.2
Module Resolution (W*H)240x135
Module Dimension (mm)300x168.75
Cabinet Dimension (W*H*D) (mm)600x337.5x32.3
Warranty2 year
Viewing Angle160°/140°
Brightness600
Power SupplyAC 200 to 240V
Pixel Density640000
Grayscale14bit
Pixel PitchP1.2
Module Resolution (W*H)240x135
Module Dimension (mm)300x168.75
Cabinet Dimension (W*H*D) (mm)600x337.5x32.3
Warranty2 year

Features

  • Ultra-High Pixel DensityP1.2 pitch with 640,000 pixels/m² for exceptional clarity.
  • Wide Viewing Angle160° horizontal and 140° vertical visibility for maximum audience coverage.
  • Lightweight DesignOnly 4.3 kg per cabinet with a slim 32.3 mm depth.
  • Vivid Image Quality14-bit grayscale and 600 nits brightness for smooth, rich visuals.
  • Durable & EfficientDie-cast aluminum body with AC 200–240V power and RoHS-compliant build.

Description

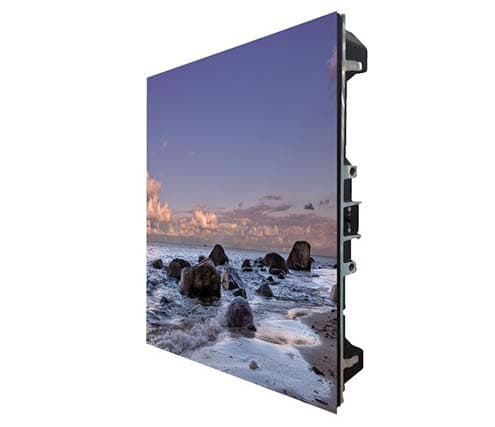

The MW7712-FI-EC is an ultra-fine pixel pitch indoor LED display with P1.2 resolution, delivering stunning detail with a pixel density of 640,000 pixels/m². Its compact, lightweight die-cast aluminum cabinet (only 4.3 kg) features a resolution of 480×270 and 600 nits brightness. With a wide 160°/140° viewing angle, 14-bit grayscale, and 2-year warranty, it’s ideal for premium indoor installations like control rooms, conference halls, and retail environments.

Drawing

No drawing available
