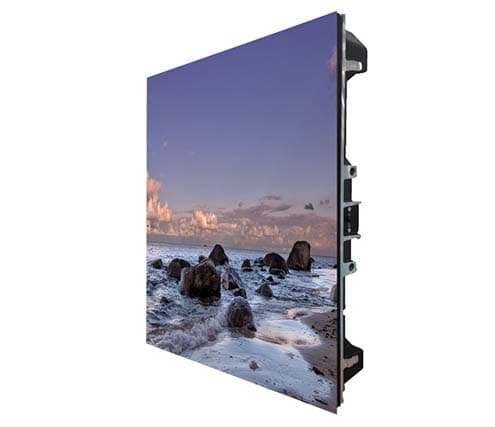

MW7825-FI-YC

Indoor Fixed LED Display Unit

Tags: LED Display, LED, Display, LED Display in uae, LED Display in dubai, Best LED Display, Indoor Fixed LED Display Unit

Data Sheet

Overview

Pixel PitchP2.5
Module Resolution (W*H)128x64
Module Dimension (mm) 320x 160
Cabinet Dimension (W*H*D) (mm)640×480×67.6
Warranty2 year
Viewing Angle140°/140°
Brightness600
Power SupplyAC 100-240 V
Pixel Density 160000
LED lifetime (h)100000
Pixel PitchP2.5
Module Resolution (W*H)128x64
Module Dimension (mm) 320x 160
Cabinet Dimension (W*H*D) (mm)640×480×67.6
Warranty2 year

Features

  • High Pixel DensityP2.5 pitch with 160,000 pixels/m² for sharp image quality.
  • Durable BuildLightweight, sturdy die-cast aluminum cabinet.
  • Wide Viewing Angle140° horizontal/vertical ensures visibility from multiple angles.
  • Long LED LifetimeUp to 100,000 hours of operation for reduced maintenance.
  • Color & Brightness ControlAdjustable color temperature (2000K–9500K) with 600 nits brightness.

Description

The MW7825-FI-YC is a high-performance indoor fixed LED display unit with a fine pixel pitch of P2.5, offering a resolution of 256×196 per cabinet. With a die-cast aluminum frame and 600 nits brightness, it ensures sharp, vibrant visuals. Its wide 140° viewing angle and 100,000-hour LED lifetime make it ideal for indoor advertising and information displays. Backed by a 2-year warranty, it's built for reliability and clarity.

Drawing

No drawing available
