| Pixel Pitch | P10 |
|---|---|
| Module Resolution (W*H) | 32x16 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D137.5(±0.5) |
| Warranty | 2 year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 5500 |
| Power supply (V) | AC 100 to 240 |
| Pixel Density | 10000 |
| Grayscale (bit) | 14 |
| Pixel Pitch | P10 |
|---|---|
| Module Resolution (W*H) | 32x16 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D137.5(±0.5) |
| Warranty | 2 year |

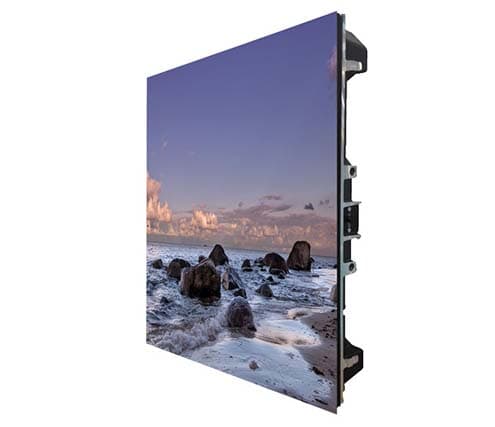

The MW77A0-FO-D is a durable outdoor fixed LED display featuring a P10 pixel pitch and a cabinet resolution of 96×96. Built with a sturdy SPCC metal plate, it delivers 5500 nits of brightness and 14-bit grayscale for crisp, vivid images. With optional contrast ratios up to 6000:1 and a wide 120°/120° viewing angle, it’s well-suited for outdoor advertising, public displays, and signage in all lighting conditions.
No drawing available
