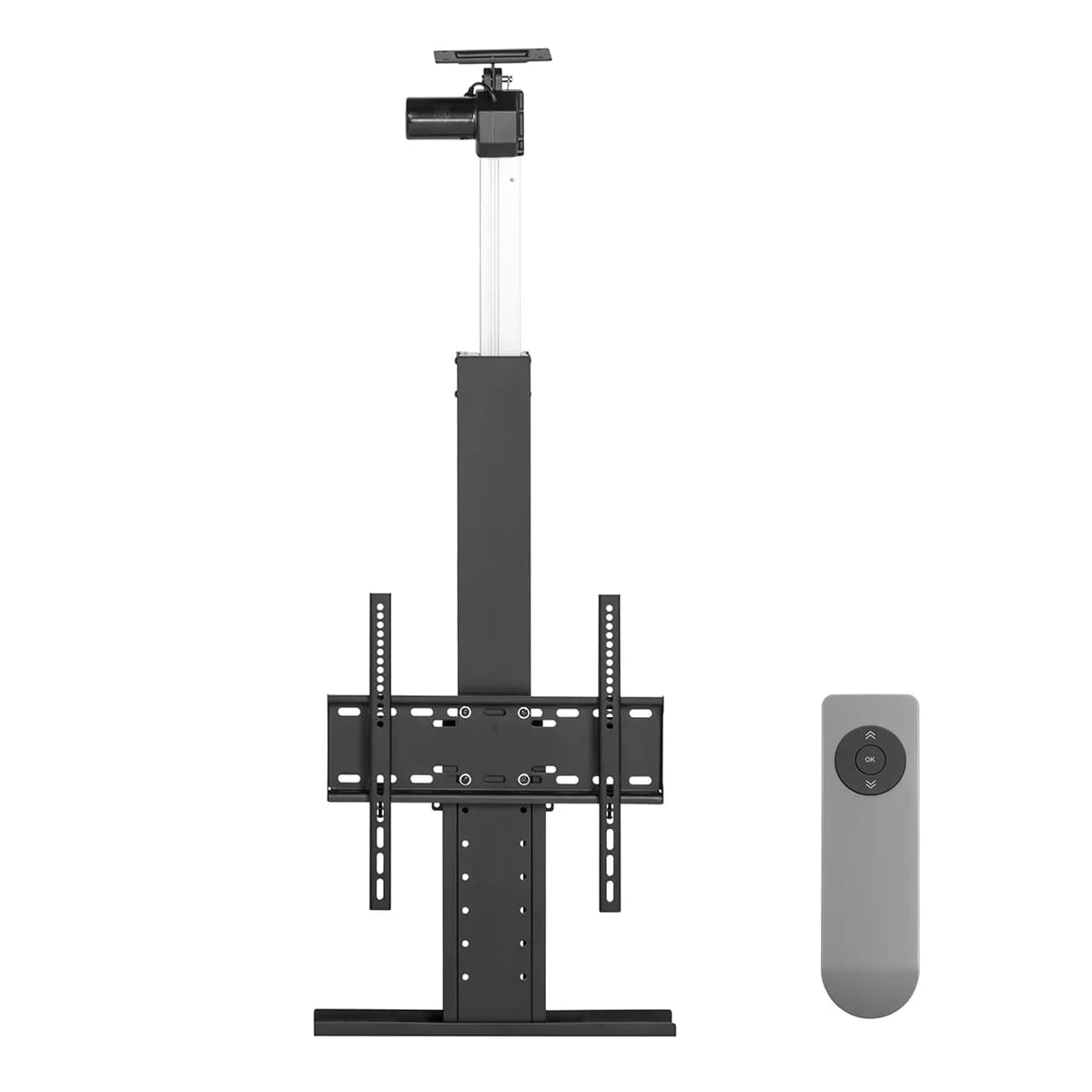

SH 48CFS

Motorized Floor & Ceiling TV Lift

Screen Size32"~55"

Max Vesa400x400mm

Weight Capacity45kg

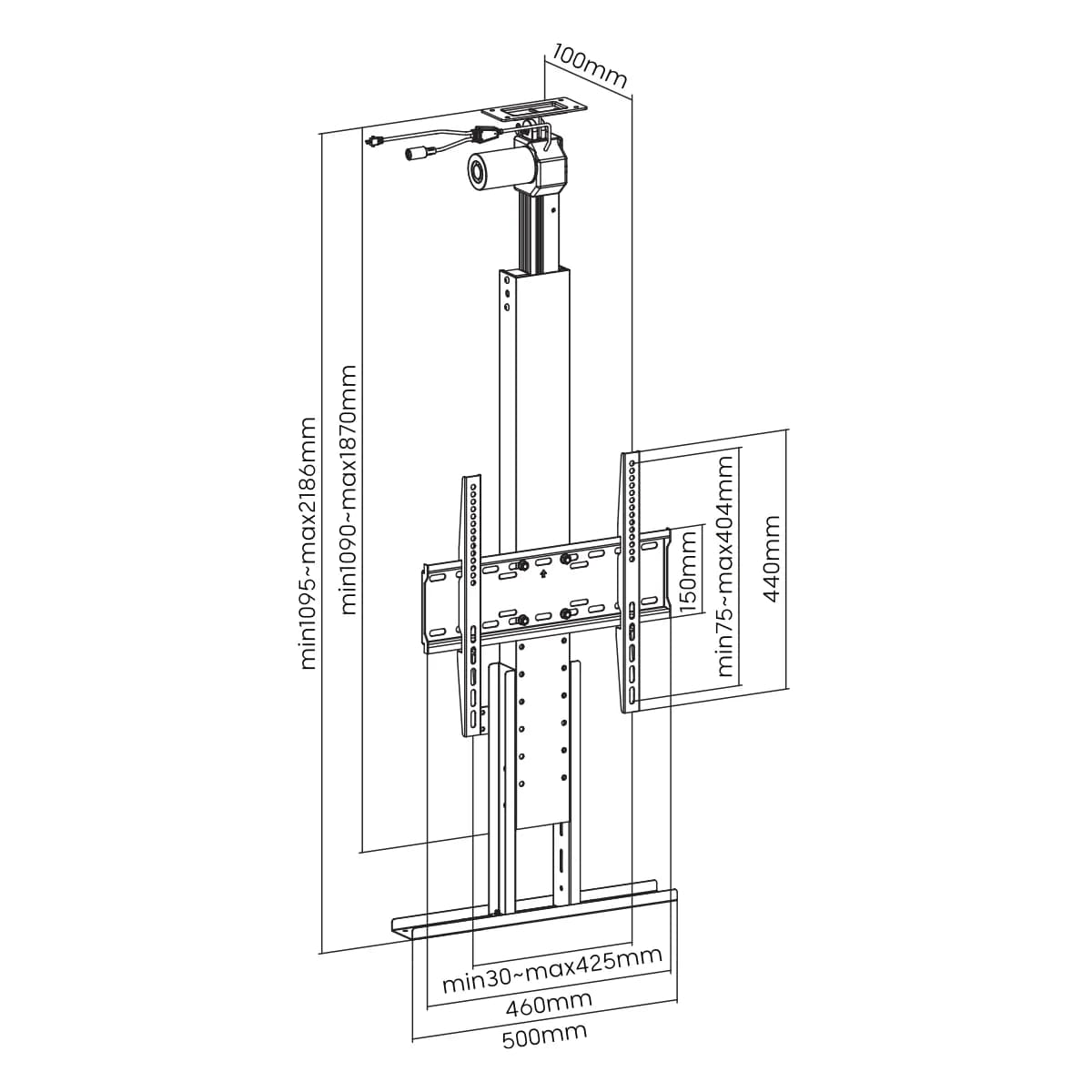

Profile to Wall1095~2186mm

Tilt Range+2°~-2°

Tags: Motorized Mounts, Motorized, Mounts, Motorized Mounts and Stands, Stands, Motorized Mounts and Stands in uae, Motorized Mounts and Stands in dubai, Best Motorized Mounts and Stands, Motorized Floor & Ceiling TV Lift

Overview

Product Category	Video Wall Cart
Rank	Premium
Material	Aluminum,Steel,Plastic
Metal Sheet Thickness	Bracket Arm THK=2mm cold-rolled sheet
Surface Finish	Sand-blasted Aluminum Anodic Oxidation

Weight Capacity(Per Screen)	45kg (110lbs)
Screen Qty	3x3
Strength Tested	4 Times Approved
Fine Adjustment(Depth/Height)	10mm/20mm (0.39"/0.79")
Tilt Range	+2°~-2°

Product Category	Video Wall Cart
Rank	Premium
Material	Aluminum,Steel,Plastic
Metal Sheet Thickness	Bracket Arm THK=2mm cold-rolled sheet
Surface Finish	Sand-blasted Aluminum Anodic Oxidation

Features

Large Screen CapacitySupports a 3x3 video wall setup for most 32″ to 55″ screens with a maximum VESA of 400x400mm.
High Weight SupportEach screen mount holds up to 45kg (110lbs),tested for strength and durability.
Fine Adjustment CapabilityOffers precise depth (10mm) and height (20mm) adjustments for perfect alignment.
Premium Build QualityMade with sand-blasted aluminum and steel, finished with anodic oxidation for durability and aesthetics.
Enhanced Mobility & SafetyEquipped with locking casters, integrated cable management, direction indicators, and passed 10° slope testing for secure installation.

Description

The SH 48CFS Motorized Floor & Ceiling TV Lift is a premium-grade video wall cart designed for 3x3 screen setups ranging from 32″ to 55″. Crafted from aluminum, steel, and plastic with a fine-texture grey and matte black finish, it supports up to 45kg per screen. Featuring precise tilt and height adjustments, integrated cable management, and durable locking casters, it ensures secure installation and seamless viewing in professional environments.
