Home > Monitor & Desktop Mounts > Articulating Monitor Arm > Single-Monitor Steel Articulating Monitor Mount

SH C01

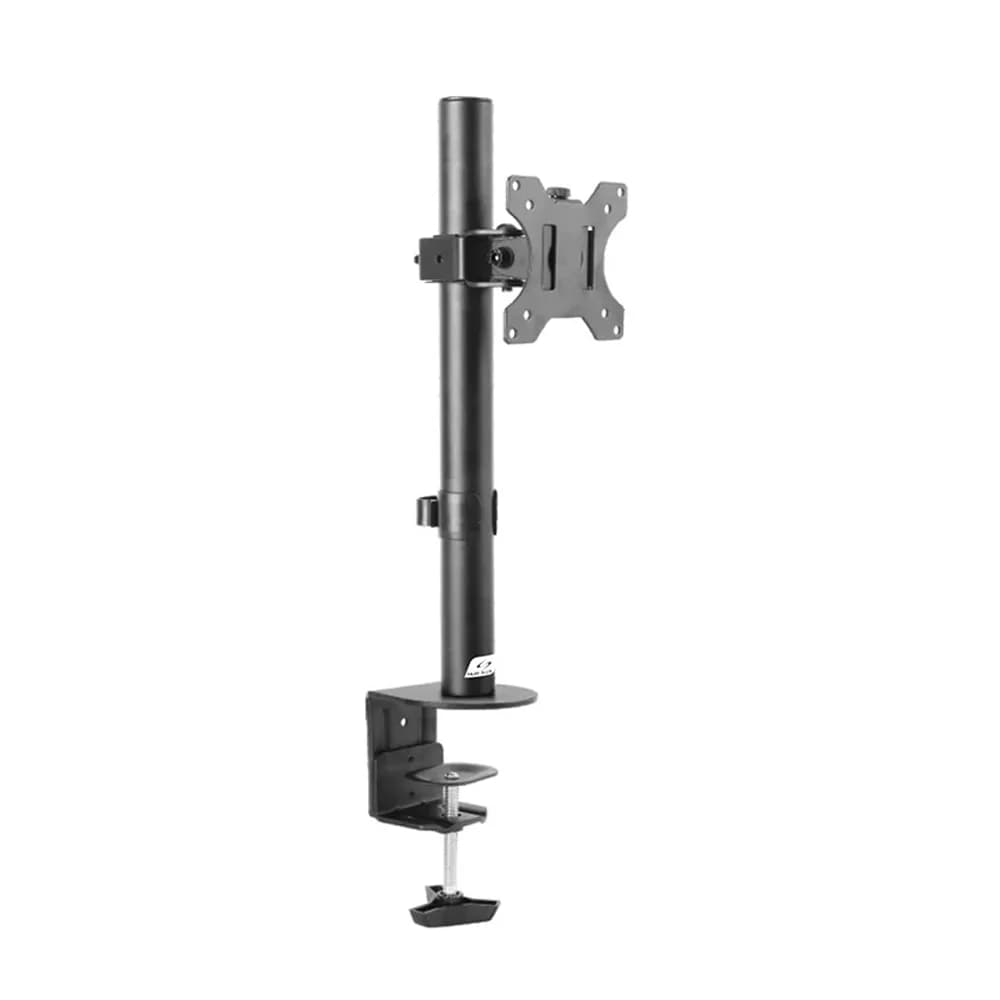

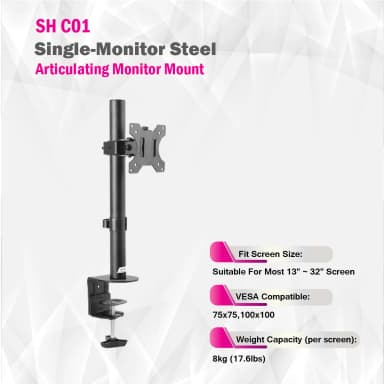

Single-Monitor Steel Articulating Monitor Mount

13''~32'' icon
Screen Size13''~32''
100x100mm icon
Max Vesa100x100mm
8kg icon
Weight Capacity8kg
443mm icon
Profile to Wall443mm
+45° ~ -45° icon
Tilt Range+45° ~ -45°

Tags: Desktop Mounts, Desktop, Mounts, Articulating Monitor Arm, Monitor Stand, Stand, Desktop Mounts In UAE, Quality Desktop Mounts,Single-Monitor Steel Articulating Monitor Mount

Data Sheet

Overview

Product CategoryArticulating Monitor Arm
RankEconomy
MaterialSteel
Surface FinishPowder Coating
ColorMatte Black
Tilt Range+45° ~ -45°
Swivel Range+90° ~ -90°
Screen Rotation+180° ~ -180°
Pole Height443mm (17.4")
InstallationGrommet,Clamp
Product CategoryArticulating Monitor Arm
RankEconomy
MaterialSteel
Surface FinishPowder Coating
ColorMatte Black

Features

  • Full Range of MotionOffers +45° to -45° tilt, +90° to -90° swivel, and +180° to -180° rotation for optimal viewing angles.
  • Dual Installation OptionsSupports both clamp and grommet mounting to suit different desk setups.
  • Strong Steel ConstructionDurable powder-coated steel frame supports up to 8kg for 13"–32" monitors.
  • Quick Release VESA PlateAllows for fast and easy monitor attachment or removal.
  • Integrated Cable ManagementKeeps your workspace neat and organized by concealing cables.

Description

The SH C01 Single-Monitor Steel Articulating Monitor Mount is an economy-grade solution designed for flexibility and durability. Suitable for most 13"–32" monitors, it supports up to 8kg per screen and features +45°/-45° tilt, +90°/-90° swivel, and full 180° screen rotation. With clamp and grommet mounting options, integrated cable management, and a quick-release VESA plate, this powder-coated steel mount is ideal for efficient and ergonomic workspaces.

Installation Video

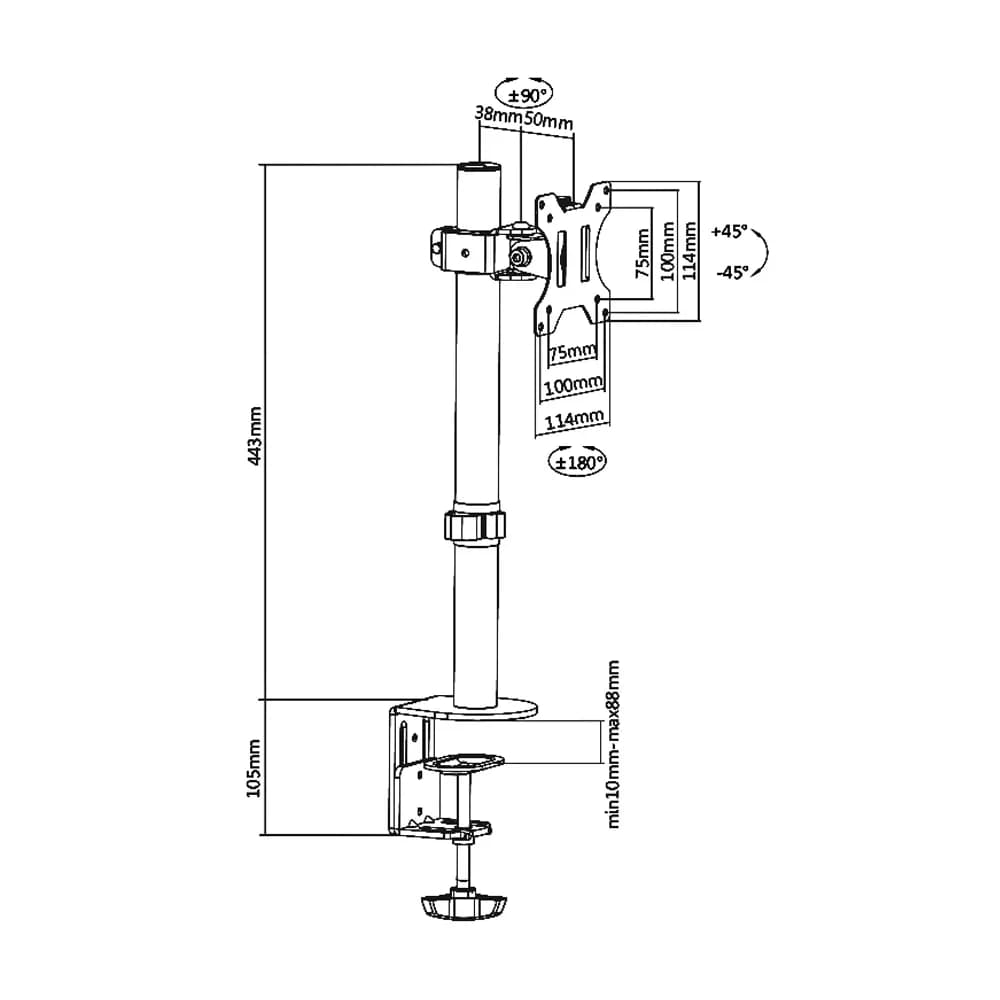

Drawing

Drawing
