SH02 C01

Pole Mount Single Monitor Mount

13''~27'' icon
Screen Size13''~27''
100x100mm icon
Max Vesa100x100mm
8kg icon
Weight Capacity8kg
365mm icon
Profile to Wall365mm
+15° ~ -15° icon
Tilt Range+15° ~ -15°

Tags: Desktop Mounts, Desktop, Mounts, Articulating Monitor Arm, Monitor Stand, Stand, Desktop Mounts In UAE, Quality Desktop Mounts, Pole Mount Single Monitor Mount

Data Sheet

Overview

Product CategoryMonitor Stand
By RankStandard
MaterialAluminum, Steel, Plastic
Surface FinishPowder coating
ColorBlack & Silver
Tilt Range+15° ~ -15°
Swivel Range180°
Screen Rotation360°
Arm Extend107mm (4.2″)
Height365mm (14.4″)
Product CategoryMonitor Stand
By RankStandard
MaterialAluminum, Steel, Plastic
Surface FinishPowder coating
ColorBlack & Silver

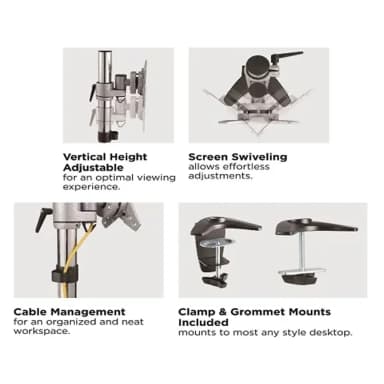

Features

  • Wide CompatibilityFits most 13″–27″ monitors with VESA 100×100mm support and up to 8kg weight capacity.
  • Full Motion AdjustmentOffers +15° ~ -15° tilt, 180° swivel, and 360° screen rotation for optimal viewing angles.
  • Height AdjustableFreely height adjustable up to 365mm for ergonomic positioning.
  • Sturdy Desk MountSecure clamp installation supports desktop thickness from 10–90mm (0.39″–3.5″).
  • Integrated Cable ManagementKeeps cables organized and workspaces clutter-free.

Description

The SH02 C01 Pole Mount Single Monitor Mount offers ergonomic and space-saving support for most 13″ to 27″ monitors. Made from aluminum, steel, and plastic with a sleek black and silver powder-coated finish, it supports up to 8kg. Featuring 360° rotation, 180° swivel, and ±15° tilt, it allows flexible viewing angles. The freestanding design includes cable management and height adjustment for a tidy, customizable workstation setup. Desk clamp installation fits 10–90mm thickness.

Installation Video

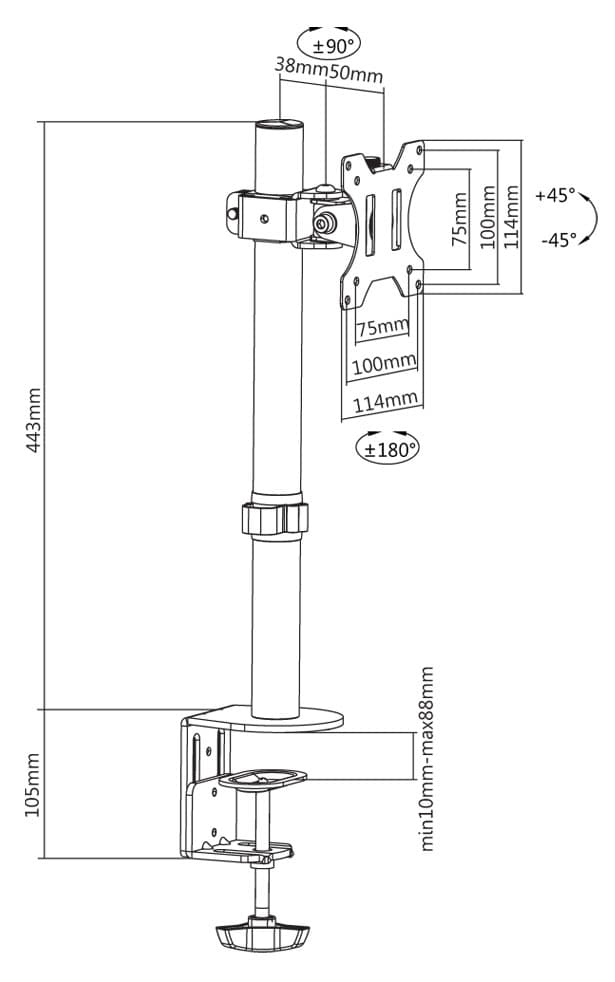

Drawing

Drawing
