SH070 C012

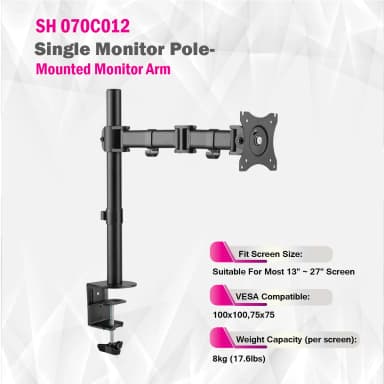

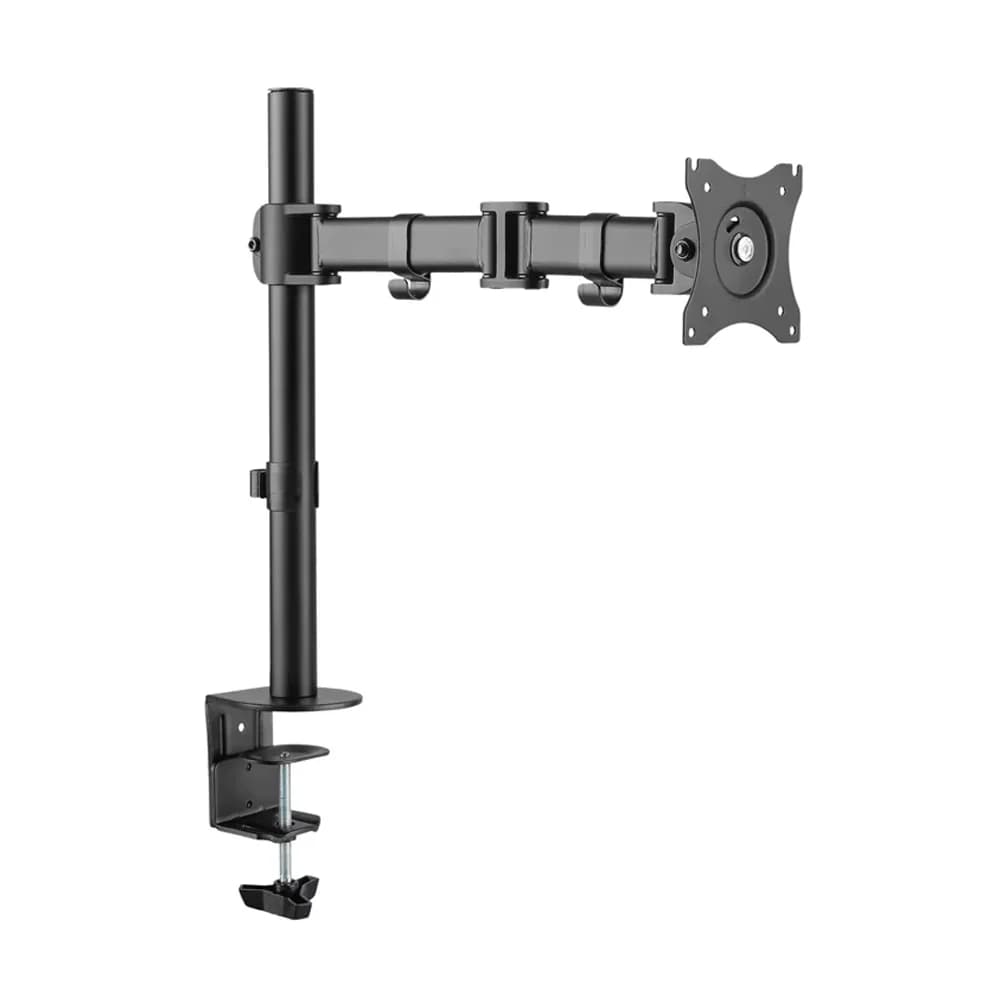

Single Monitor Pole-Mounted Monitor Arm

13''~27'' icon
Screen Size13''~27''
100x100mm icon
Max Vesa100x100mm
8kg icon
Weight Capacity8kg
450mm icon
Profile to Wall450mm
+45° ~ -45° icon
Tilt Range+45° ~ -45°

Tags: Desktop Mounts, Desktop, Mounts, Articulating Monitor Arm, Monitor Stand, Stand, Desktop Mounts In UAE, Quality Desktop Mounts,Single Monitor Pole-Mounted Monitor Arm

Data Sheet

Overview

Product CategoryArticulating Monitor Arm
RankStandard
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black
Max. VESA100x100mm
Tilt Range+45° ~ -45°
Swivel Range+90° ~ -90°
Screen Rotation+180° ~ -180°
Arm Full Extension428mm (16.9")
Product CategoryArticulating Monitor Arm
RankStandard
MaterialSteel,Plastic,Aluminum
Surface FinishPowder Coating
ColorMatte Black

Features

  • Wide CompatibilitySupports most 13″ to 27″ monitors with a weight capacity of up to 8kg (17.6lbs).
  • Flexible AdjustabilityOffers +45° to -45° tilt, +90° to -90° swivel, and +180° to -180° screen rotation for optimal viewing.
  • Extended ReachArm extends up to 428mm (16.9″) and includes a 450mm (17.7″) tall pole for height versatility.
  • Durable BuildConstructed from steel, plastic, and aluminum with a sleek matte black powder-coated finish.
  • Versatile InstallationEasy setup with both grommet and clamp options; fits desktops from 10–88mm thick, plus built-in cable management.

Description

The SH070 C012 Single Monitor Pole-Mounted Arm is a standard-grade solution for 13″–27″ screens, supporting up to 8kg. Built with steel, plastic, and aluminum in a matte black powder-coated finish, it offers full tilt, swivel, and rotation adjustments. With a 450mm pole and 428mm arm extension, it allows ergonomic positioning. Compatible with clamp and grommet installation, it includes integrated cable management for a clean and organized workspace.

Installation Video

Product Video

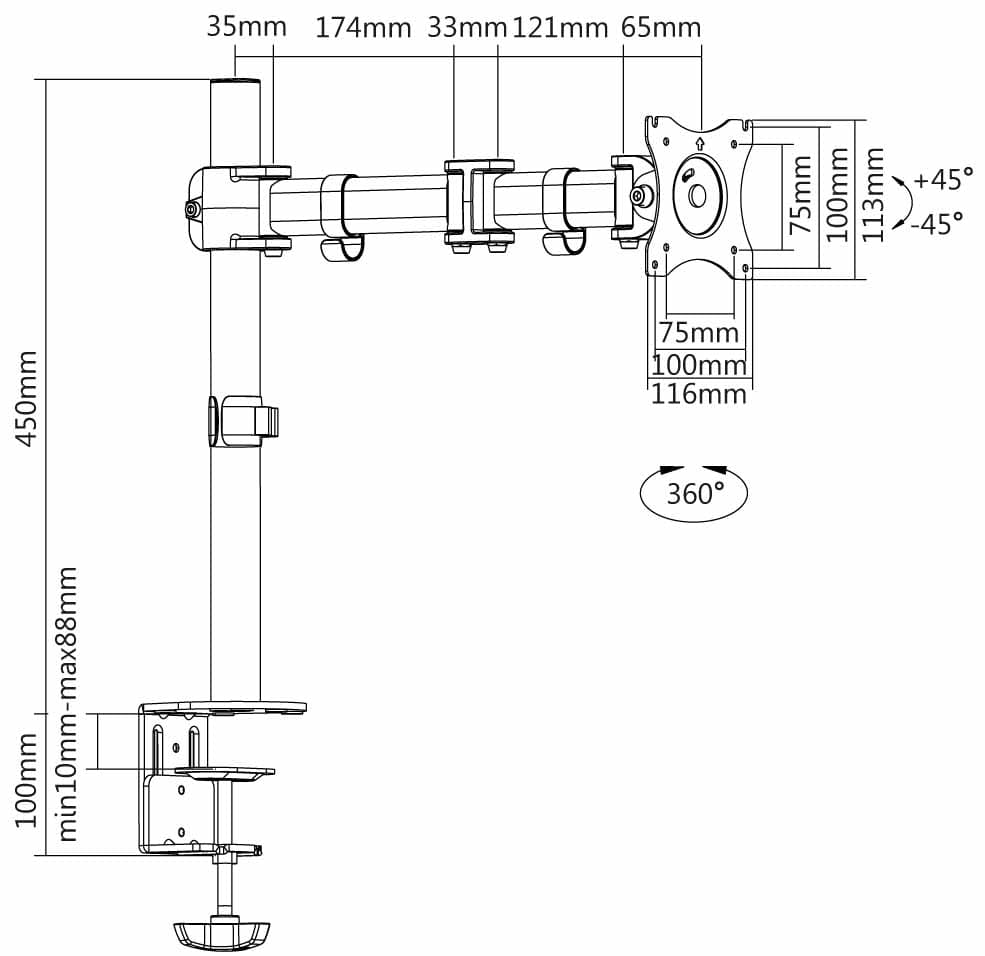

Drawing

Drawing
