Home > TV Wall Mounts > Full Motion Single Arm > Extra Long Single Arm Full-Motion TV Wall Mount

SH 1015P

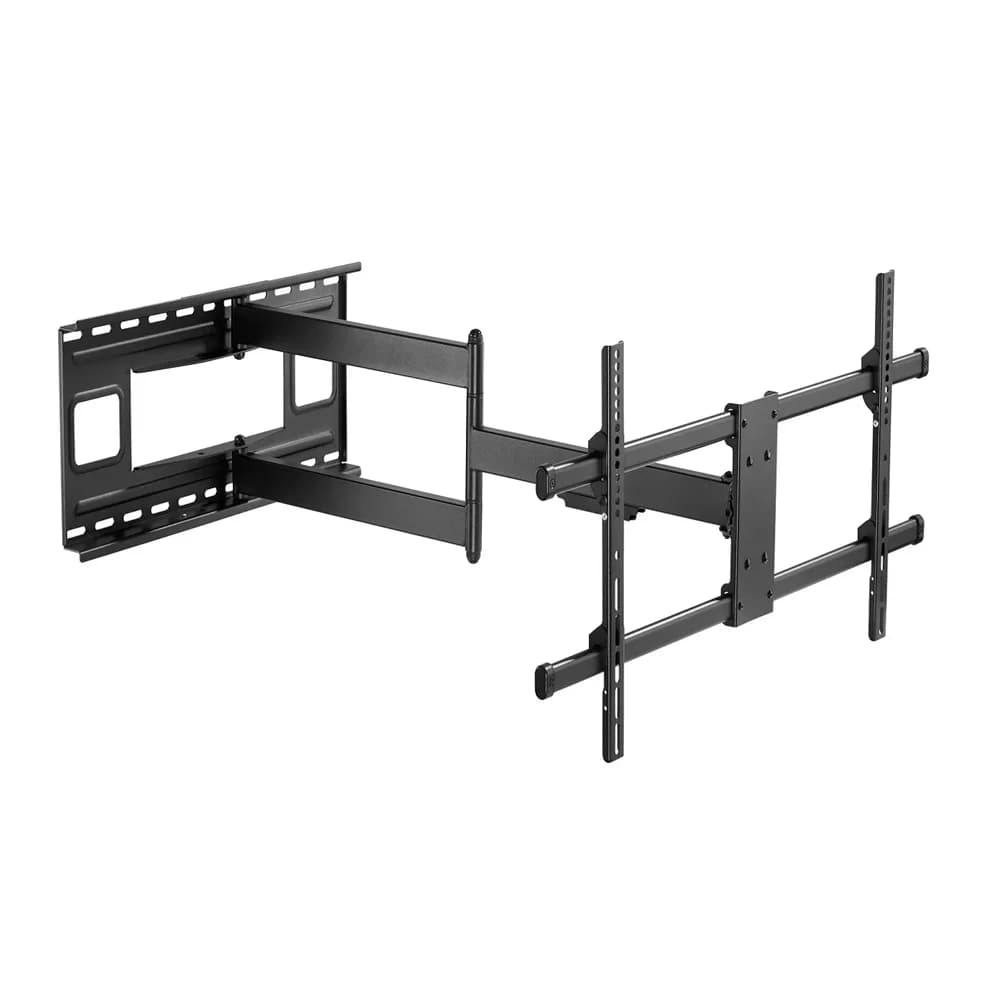

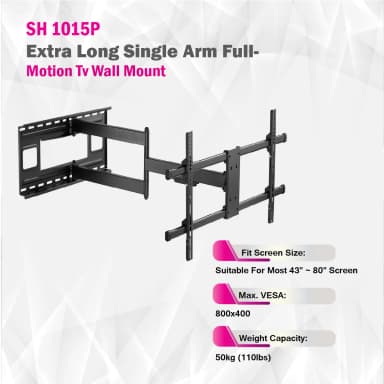

Extra Long Single Arm Full-Motion TV Wall Mount

43''~80" icon
Screen Size43''~80"
800x400mm icon
Max Vesa800x400mm
50kg icon
Weight Capacity50kg
82-1015mm icon
Profile to Wall82-1015mm
+5° ~ -15° icon
Tilt Range+5° ~ -15°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Single Arm

Data Sheet

Overview

Product CategoryFull- Motion TV Wall Mount
RankStandard
MaterialSteel
Pipe Size50x25x1.5mm Square Steel Tube
Surface FinishPowder Coating
Profile82-1015mm (3.2"-40")
Tilt Range+5°~-15°
Swivel Range+90°  ~ 90°
Screen Level+3° ~ -3°
Screen Freely TiltingYes
Product CategoryFull- Motion TV Wall Mount
RankStandard
MaterialSteel
Pipe Size50x25x1.5mm Square Steel Tube
Surface FinishPowder Coating

Features

  • Full-Motion FlexibilityOffers a wide swivel range of +90°~-90° and tilt range of +5°~-15° for optimal viewing angles.
  • Heavy-Duty ConstructionBuilt with robust steel and a square tube design, this mount supports up to 50kg (110lbs) for large TVs (43"~80").
  • Easy Screen AdjustmentFeatures a screen leveling range of +3°~-3°, allowing precise positioning.
  • Cable Management SystemKeeps cables organized and hidden for a clean, professional look.
  • Bubble Level for Precise InstallationComes with a hook-on bubble level for accurate alignment during installation.

Description

The SH 1015P Extra Long Single Arm Full-Motion TV Wall Mount is designed to support most 43"~80" flat and curved screens with a VESA pattern up to 800x400mm. It features a robust steel construction, offering a weight capacity of 50kg. The mount provides +5°~-15° tilt, +90°~-90° swivel, and a screen leveling range of +3°~-3°. Includes cable management, a hook-on bubble level, and easy installation.

Installation Video

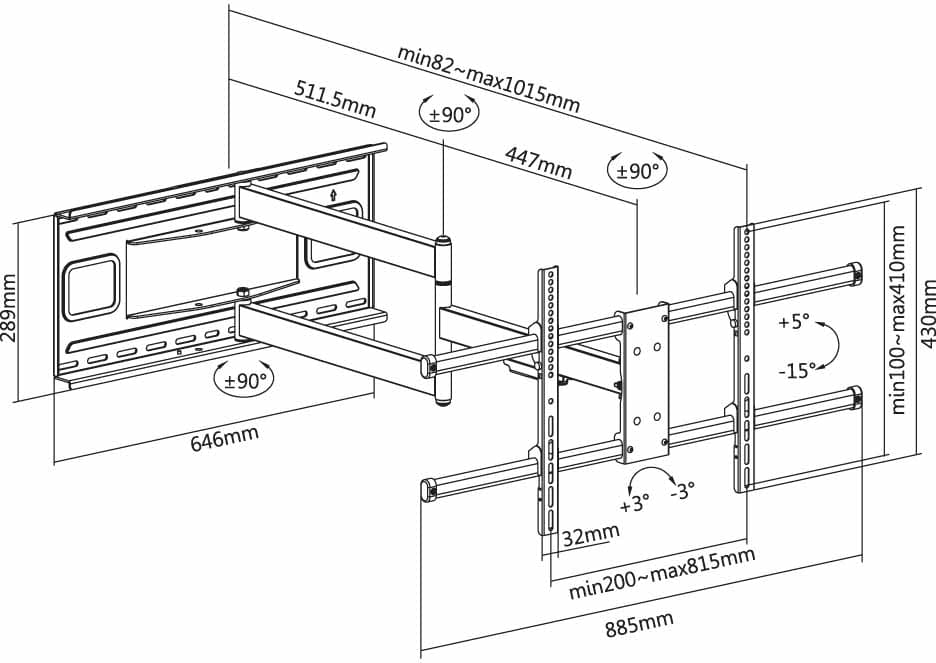

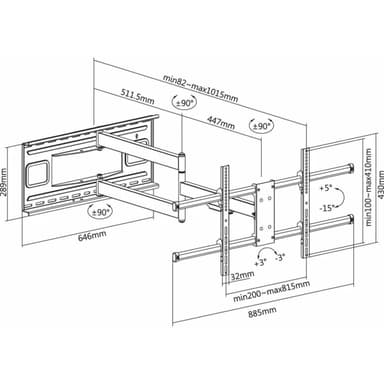

Drawing

Drawing
