Home > TV Wall Mounts > Full Motion Single Arm > Classic Premium Single Arm Full-Motion TV Wall Mount

SH 406P

Classic Premium Single Arm Full-Motion TV Wall Mount

37"~80" icon
Screen Size37"~80"
600x400mm icon
Max Vesa600x400mm
50kg icon
Weight Capacity50kg
610-803mm icon
Profile to Wall610-803mm
+10° ~ -10° icon
Tilt Range+10° ~ -10°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Single Arm

Data Sheet

Overview

Product CategoryTV Wall Mount
By FunctionFull Motion
RankPremium
Mounting Hole PatternUniversal
MaterialAluminum, Steel
Profile82-1015mm (3.2"-40")
Tilt Range+10°~-10°
Swivel Range+90°  ~ 90°
Screen Level+3° ~ -3°
Screen Freely TiltingYes
Product CategoryTV Wall Mount
By FunctionFull Motion
RankPremium
Mounting Hole PatternUniversal
MaterialAluminum, Steel

Features

  • Full-Motion FlexibilityOffers +90°~-90° swivel, +10°~-10° tilt, and +3° ~ -3° screen leveling for optimal viewing from any angle.
  • Heavy-Duty BuildCrafted from high-quality aluminum and steel, supports TVs up to 50kg with 4-times strength testing approval.
  • Wide CompatibilityFits most 37"~80" flat and curved TVs with universal mounting and max VESA 600x400mm.
  • Space-Saving ProfileExtends from 610mm to 803mm, providing flexibility without bulk.
  • Easy, Clean InstallationFeatures cable management, detachable panel, and includes a GS/UL certified instruction manual.

Description

The SH 406P Classic Premium Full-Motion TV Wall Mount is designed for versatility and strength, supporting most 37"~80" screens with a weight capacity of up to 50kg. Its single-arm, full-motion design offers +90°~-90° swivel, +10°~-10° tilt, and +3° ~ -3° screen leveling for the best viewing angle. Made from durable aluminum and steel, it features cable management and a detachable panel for clean, easy installation.

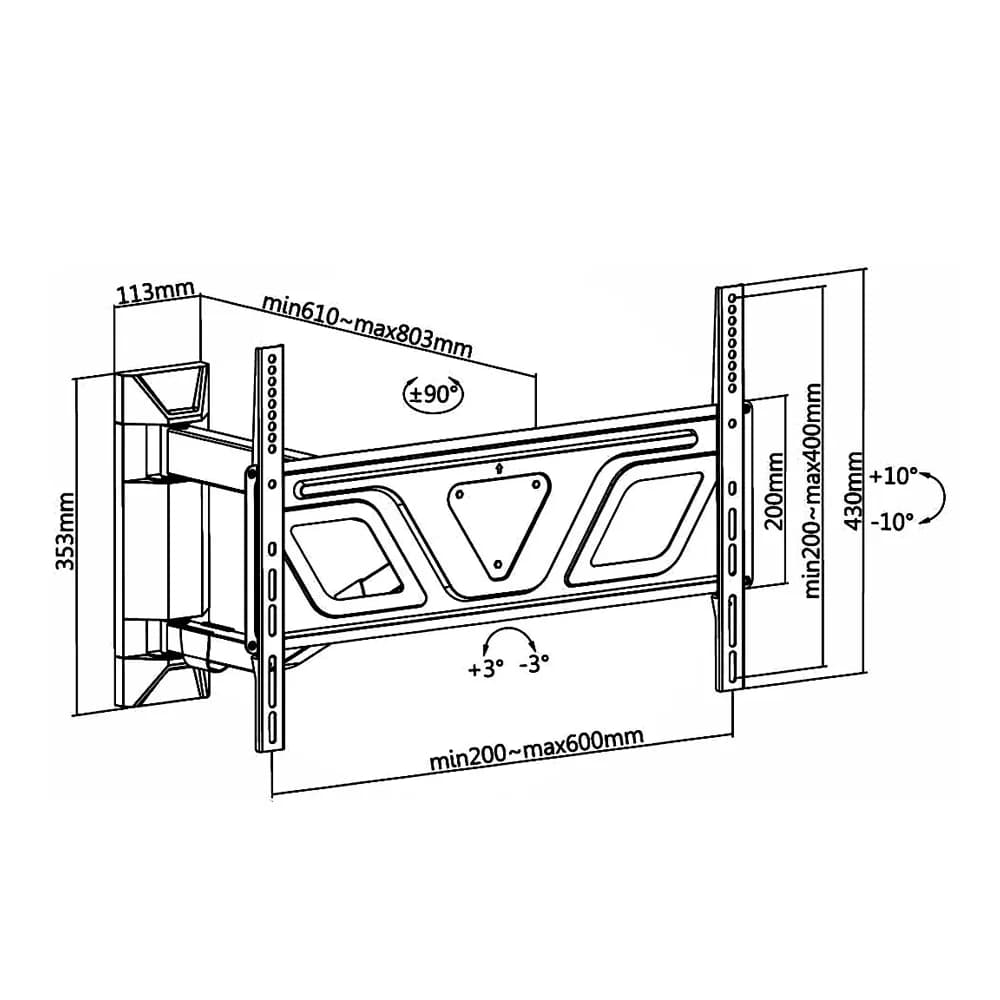

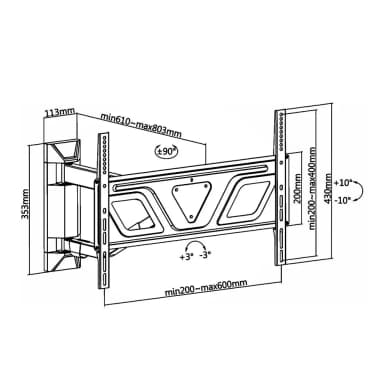

Drawing

Drawing
