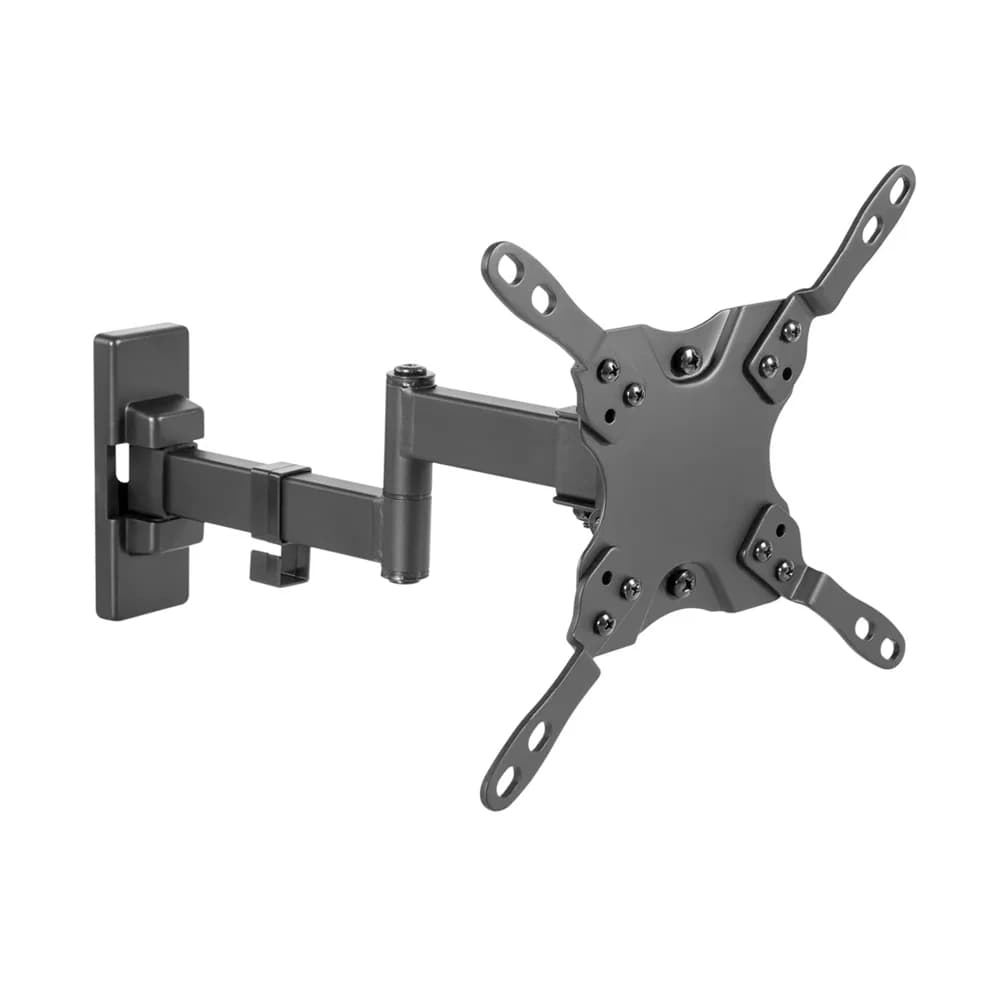

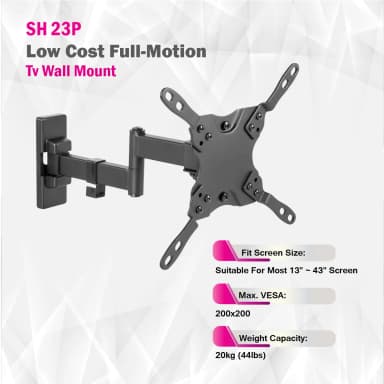

SH 23P

Low Cost Full-Motion TV Wall Mount

Screen Size13"~43"

Max Vesa200x200mm

Weight Capacity20kg

Profile to Wall60-273mm

Tilt Range+5° ~ -12°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Single Arm, Low Cost Full-Motion TV Wall Mount

Overview

Product Category	Full- Motion TV Wall Mount

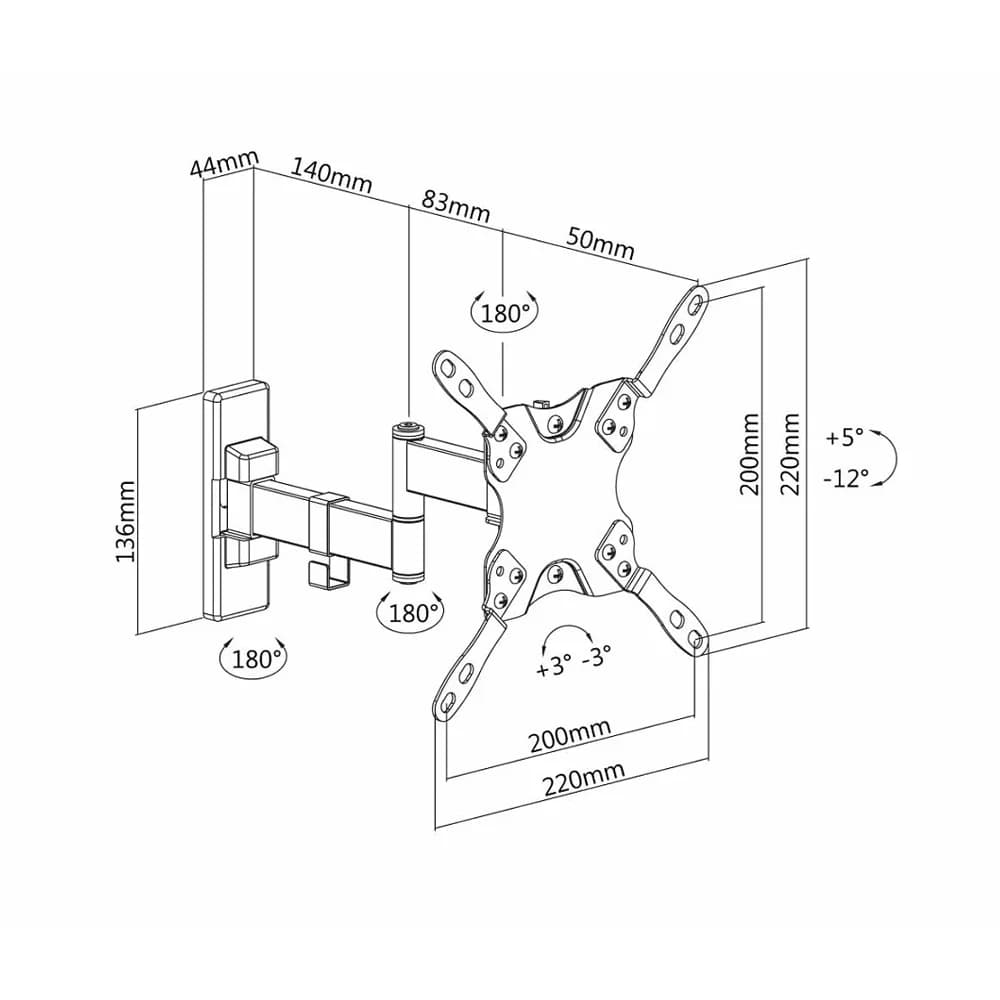

Dimensions	273x220x228mm (10.7"x8.7"x9")
Fit Screen Size	Suitable for most 13" ~ 43" Screen
Fit Curved TV	Yes
Mounting Hole Pattern	VESA Only

Tilt Range	+5°~-12°
Swivel Range	+90° ~ 90°
Screen Level	+3° ~ -3°
Screen Freely Tilting	Yes
Installation	Solid Wall,Single Stud

Product Category	Full- Motion TV Wall Mount
Dimensions	273x220x228mm (10.7"x8.7"x9")
Fit Screen Size	Suitable for most 13" ~ 43" Screen
Fit Curved TV	Yes
Mounting Hole Pattern	VESA Only

Features

Wide CompatibilitySupports most 13" to 43" flat and curved TVs with VESA mounting up to 200x200mm.
Smooth Motion AdjustmentsOffers +5° to -12° tilt, ±90° swivel, and ±3° screen leveling for optimal viewing angles.
Compact Extension ProfileAdjustable profile from 60mm to 273mm saves space and allows flexible positioning.
Easy InstallationDesigned for solid wall and single stud mounting with a detachable panel for simple setup.
Cable Management SystemKeeps wires organized and out of sight for a clean, professional look.

Description

The SH 23P Low Cost Full-Motion TV Wall Mount offers reliable performance and flexibility for most 13" to 43" flat and curved TVs. With a compact profile of 60–273mm, it supports up to 20kg and VESA patterns up to 200x200mm. Featuring tilt, swivel, and screen leveling adjustments, it ensures optimal viewing. Durable steel construction, easy single-stud installation, detachable panel, and integrated cable management make it an excellent space-saving mounting solution.
