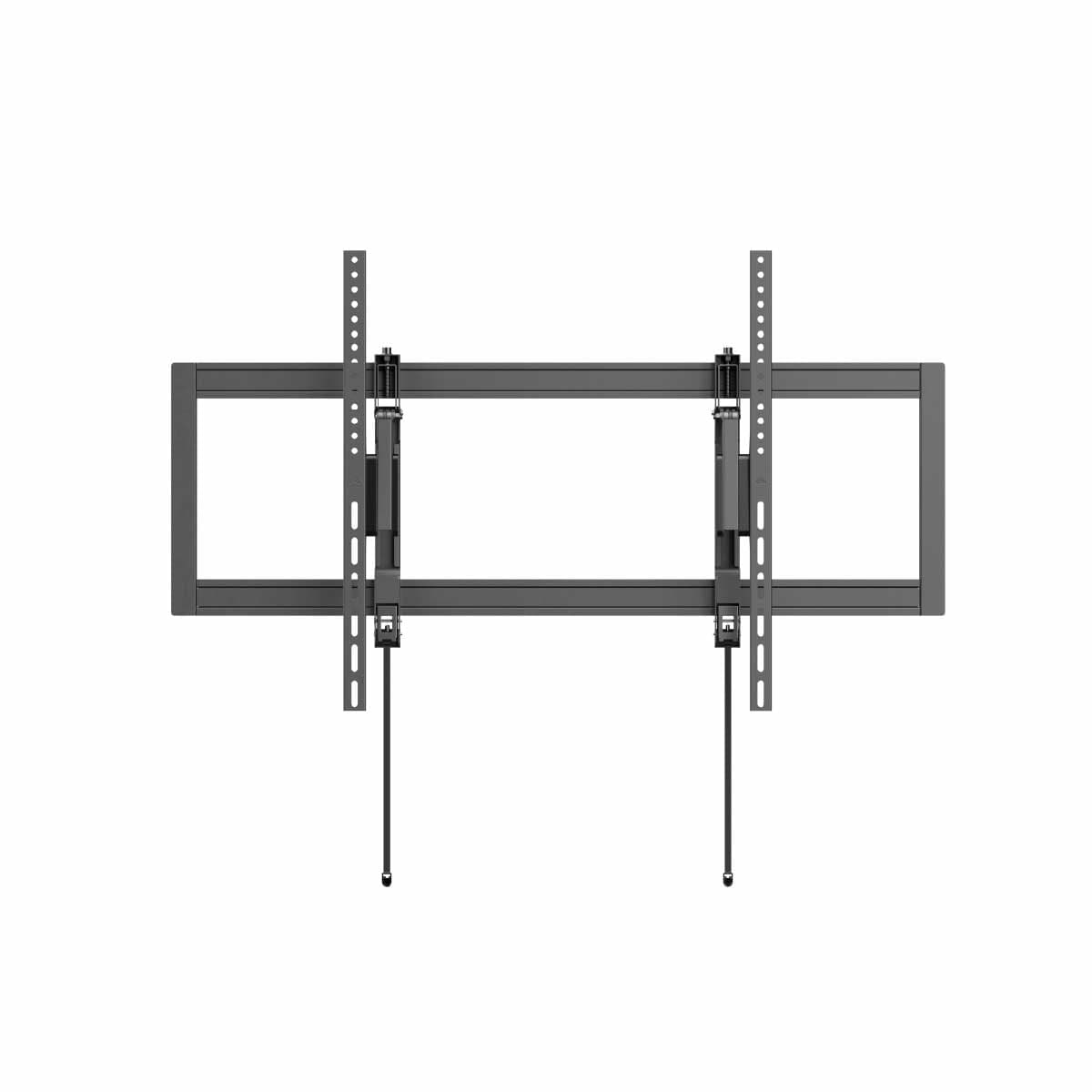

SH 105T

Heavy-Duty Extend-Out Tilt TV Wall Mount

Screen Size55''~105''

Max Vesa1000x600mm

Weight Capacity80kg

Tilt Range+10°~-15°

Swivel Range+10°~-10°

Tags: TV Wall Mount, Large TV Wall Mount, Heavy-Duty TV Wall Mount, Extension TV Wall Mount, Tilting TV Wall Mount, Anti-Theft TV Mount, Lateral Shift TV Mount

Overview

Product Category	Tilt TV Wall Mount
Rank	Standard
Material	Steel,Plastic
Metal Sheet Thickness	Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet
Color	Fine Texture Black

Weight Capacity	80kg (176lbs)
Profile	53~172mm (2.1"~6.8")
Tilt Range	+10°~-15°
Swivel Range	+10°~-10°
Screen Level	30mm (1.2")

Product Category	Tilt TV Wall Mount
Rank	Standard
Material	Steel,Plastic
Metal Sheet Thickness	Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet
Color	Fine Texture Black

Features

Heavy-Duty Steel ConstructionBuilt with 2mm thick cold-rolled steel bracket arms and wall plate, this mount supports TVs up to 80kg (176 lbs), ensuring maximum strength, stability.
Wide Compatibility for Large & Curved TVsDesigned to fit 55″~105″ flat or curved screens with VESA & universal mounting up to 1000×600, making it ideal for oversized TVs.
Smooth Tilt & Minor Swivel AdjustmentOffers a tilt range of +10°~15° and +10°~-10° swivel, allowing easy glare reduction and optimal viewing angles without compromising stability.

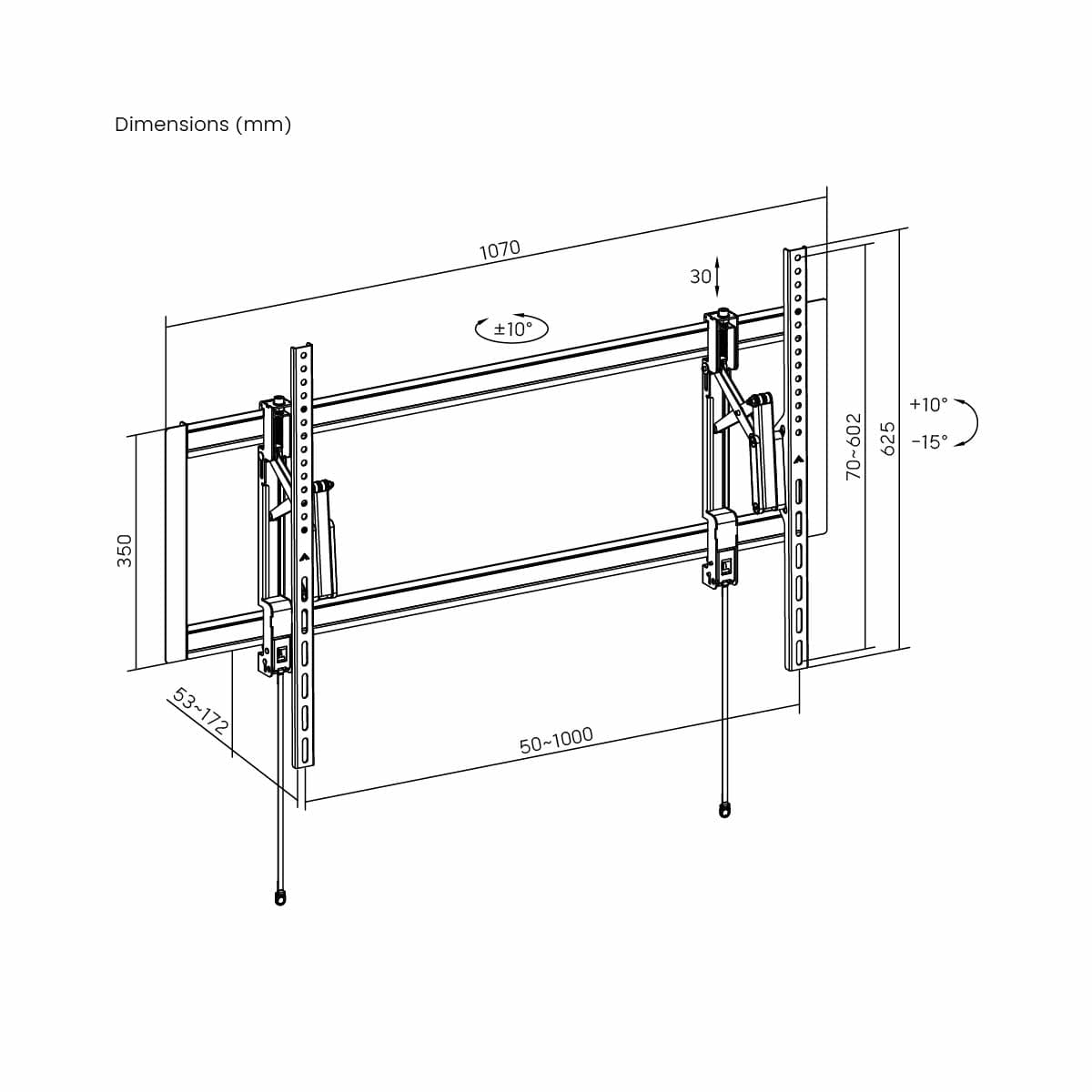

Low-Profile Adjustable DesignSlim profile ranges from 53~172mm (2.1″~6.8″) from the wall, with 30mm screen leveling for precise alignment after installation.

Description

SH 105T Heavy-Duty Extend-Out Tilt TV Wall Mount is designed for large flat or curved TVs from 55″~105″, supporting up to 80kg. Built with 2mm cold-rolled steel and finished in fine-texture black powder coating, it offers smooth tilt and swivel adjustment for optimal viewing. Featuring VESA compatibility up to 1000×600, a detachable panel, anti-theft design, and installer-friendly bubble level, it ensures secure and precise wall mounting.
