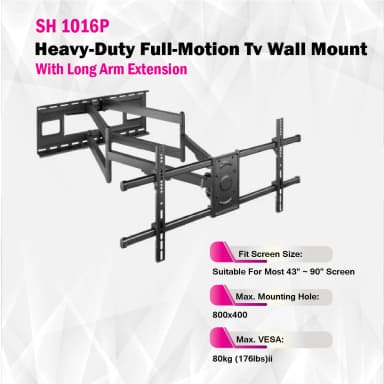

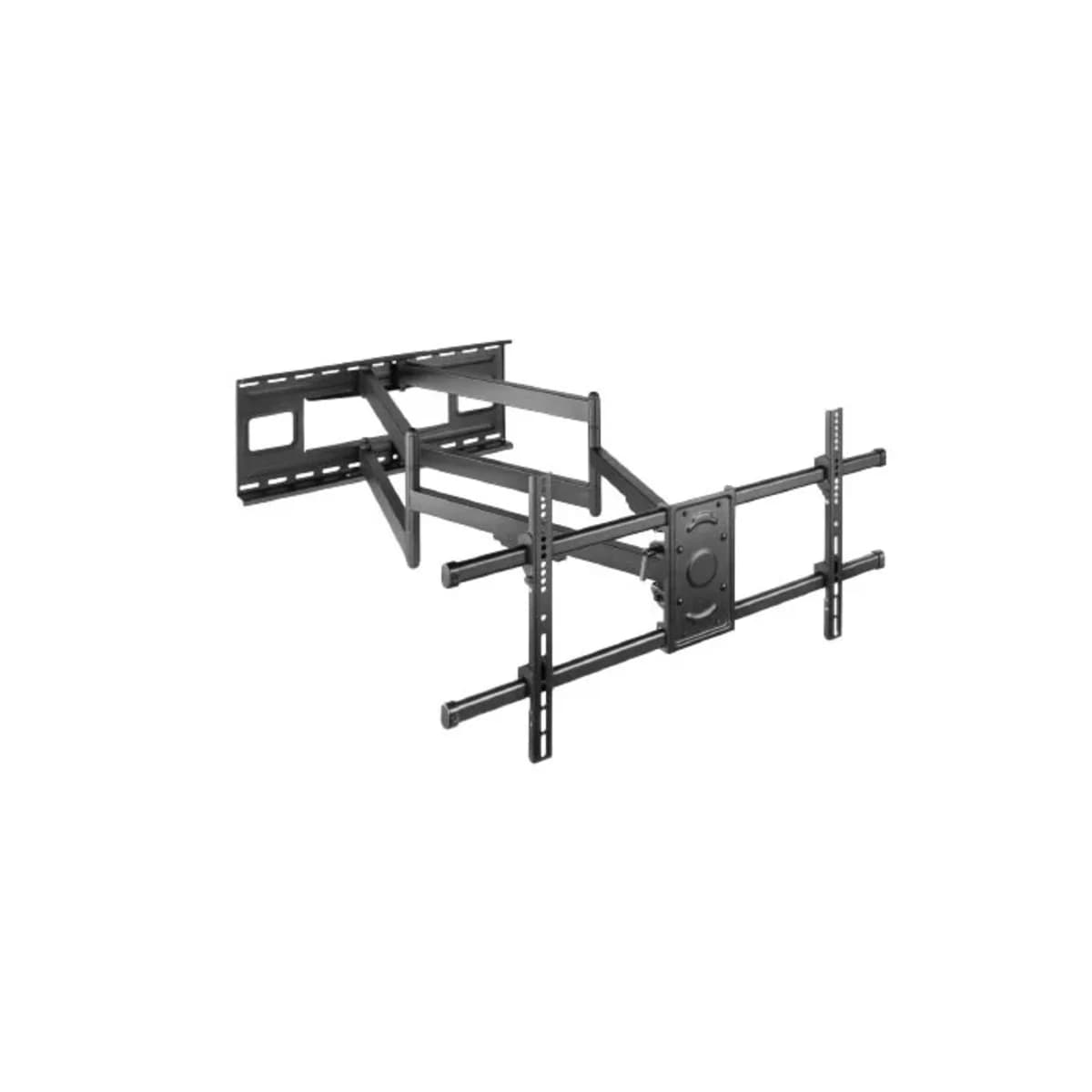

SH 1016P

Heavy-Duty Full-Motion TV Wall Mount With Long Arm Extension

Screen Size43"~90"

Max Vesa800x400mm

Weight Capacity80kg

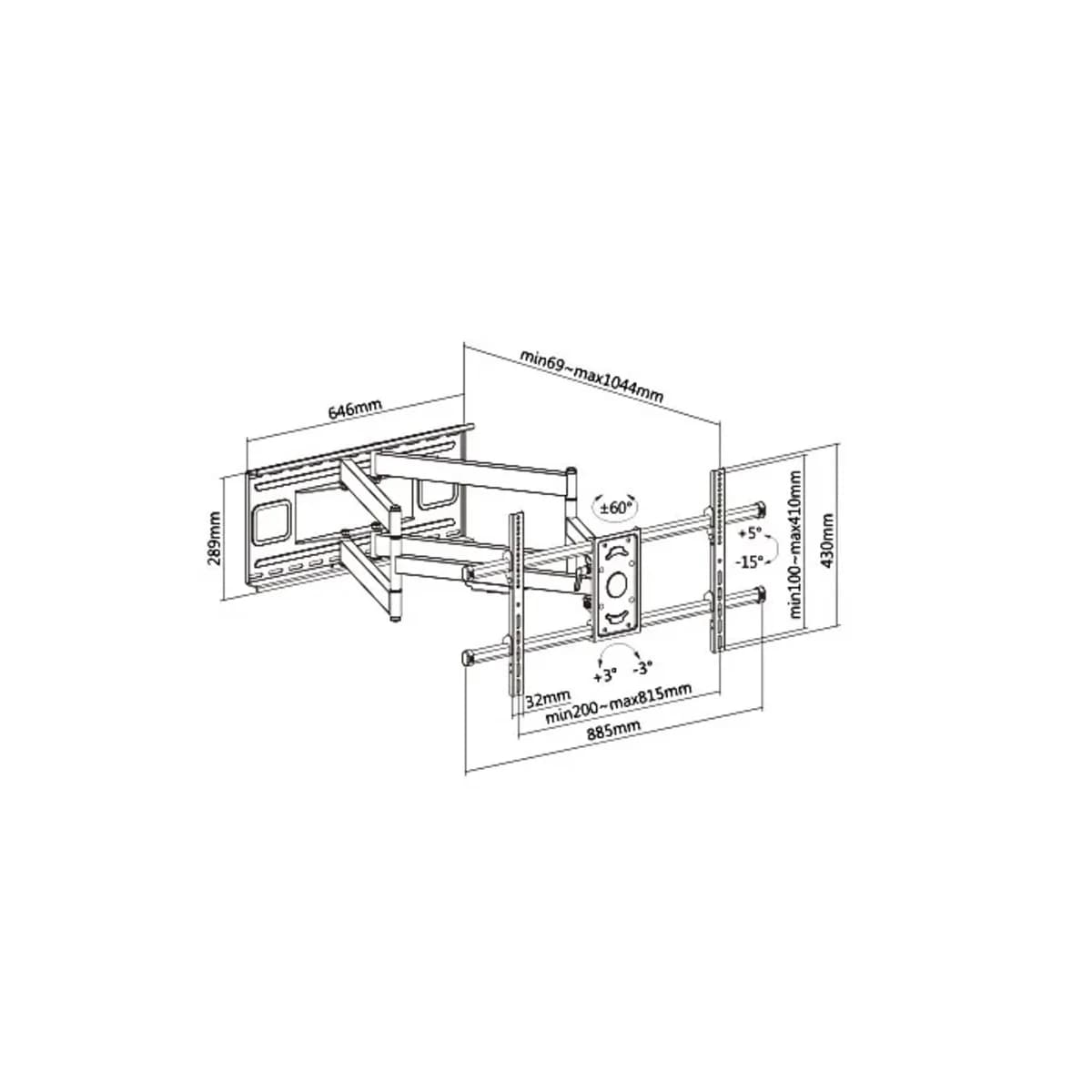

Profile to Wall69-1044mm

Tilt Range+5° ~ -15°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Double Arm Mounts, Heavy-Duty Full-Motion TV Wall Mount With Long Arm Extension

Overview

Product Category	Full- Motion TV Wall Mount
Rank	Standard
Material	Steel
Metal Sheet Thickness	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size	40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)

Strength Tested	3 Times Approved
Profile	69-1044mm (2.7"~41.1")
Tilt Range	+5°~-15°
Swivel Range	+60° ~ 60°
Screen Level	+3° ~ -3°

Product Category	Full- Motion TV Wall Mount
Rank	Standard
Material	Steel
Metal Sheet Thickness	Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)
Pipe Size	40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube)

Features

Long Arm ExtensionExtends up to 1044mm (41.1") for maximum viewing flexibility and easy access behind the TV.
High Load CapacitySupports TVs up to 80kg (176lbs), ideal for most 43"–90" screens including curved models.
Strong Build QualityMade of thick cold-rolled and pickling steel with dual square steel tubes for enhanced durability.
Full Range MotionOffers +60°/-60° swivel, +5°/-15° tilt, and ±3° screen leveling for optimal viewing angles.
Enhanced Installation SupportIncludes hook-on bubble level, direction indicator, and is compatible with solid walls and double stud (406mm/450mm/600mm) setups.

Description

The SH 1016P is a heavy-duty full-motion TV wall mount designed for most 43"–90" screens, including curved TVs. Built with thick cold-rolled and pickling steel, it supports up to 80kg and offers a long arm extension up to 1044mm. Enjoy flexible viewing with ±60° swivel, +5°~-15° tilt, and ±3° screen leveling. Features include integrated cable management, a hook-on bubble level, direction indicator, and compatibility with double stud or solid wall installations.
