Home > TV Wall Mounts > Full Motion Double Arm Mounts > Heavy - Duty Full Motion TV Wall Mount

SH 990P

Heavy - Duty Full Motion TV Wall Mount

60"~120" icon
Screen Size60"~120"
900x600mm icon
Max Vesa900x600mm
120kg icon
Weight Capacity120kg
75-703mm icon
Profile to Wall75-703mm
+5° ~ -15° icon
Tilt Range+5° ~ -15°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Double Arm Mounts, Heavy - Duty Full Motion TV Wall Mount

Data Sheet

Overview

Product CategoryFull-Motion TV Wall Mount
RankStandard
MaterialSteel
ColorFine Texture Black
Dimensions703x1010x630mm (27.7"x39.8"x24.8")
Mounting Hole PatternVESA & Universal
Max. VESA900X600mm
Weight Capacity120kg
Profile75-703mm (3"~27.7")
Tilt Range+5° ~- 15°
Product CategoryFull-Motion TV Wall Mount
RankStandard
MaterialSteel
ColorFine Texture Black
Dimensions703x1010x630mm (27.7"x39.8"x24.8")

Features

  • Heavy-Duty SupportBuilt from solid steel, it holds TVs up to 120kg, ideal for large 60"–120" screens including curved models.
  • Wide Motion RangeOffers +5° to -15° tilt, ±60° swivel, and ±5° screen level adjustment for optimal viewing angles.
  • Extended ReachAdjustable profile from 75mm to 703mm enables flexible positioning from the wall.
  • VESA CompatibilitySupports VESA patterns up to 900x600mm for broad TV model compatibility.
  • Premium DimensionsLarge mounting plate (703x1010mm) ensures stability and secure installation on solid walls.

Description

The SH 990P Heavy-Duty Full-Motion TV Wall Mount is built for strength and versatility, supporting most 60" to 120" TVs including curved models. With a robust steel build and 120kg load capacity, it features a wide VESA range up to 900x600mm. Enjoy flexible viewing with +5° to -15° tilt, ±60° swivel, and ±5° screen leveling. Its extendable 75-703mm profile ensures optimal positioning for any large-screen setup.

Installation Video

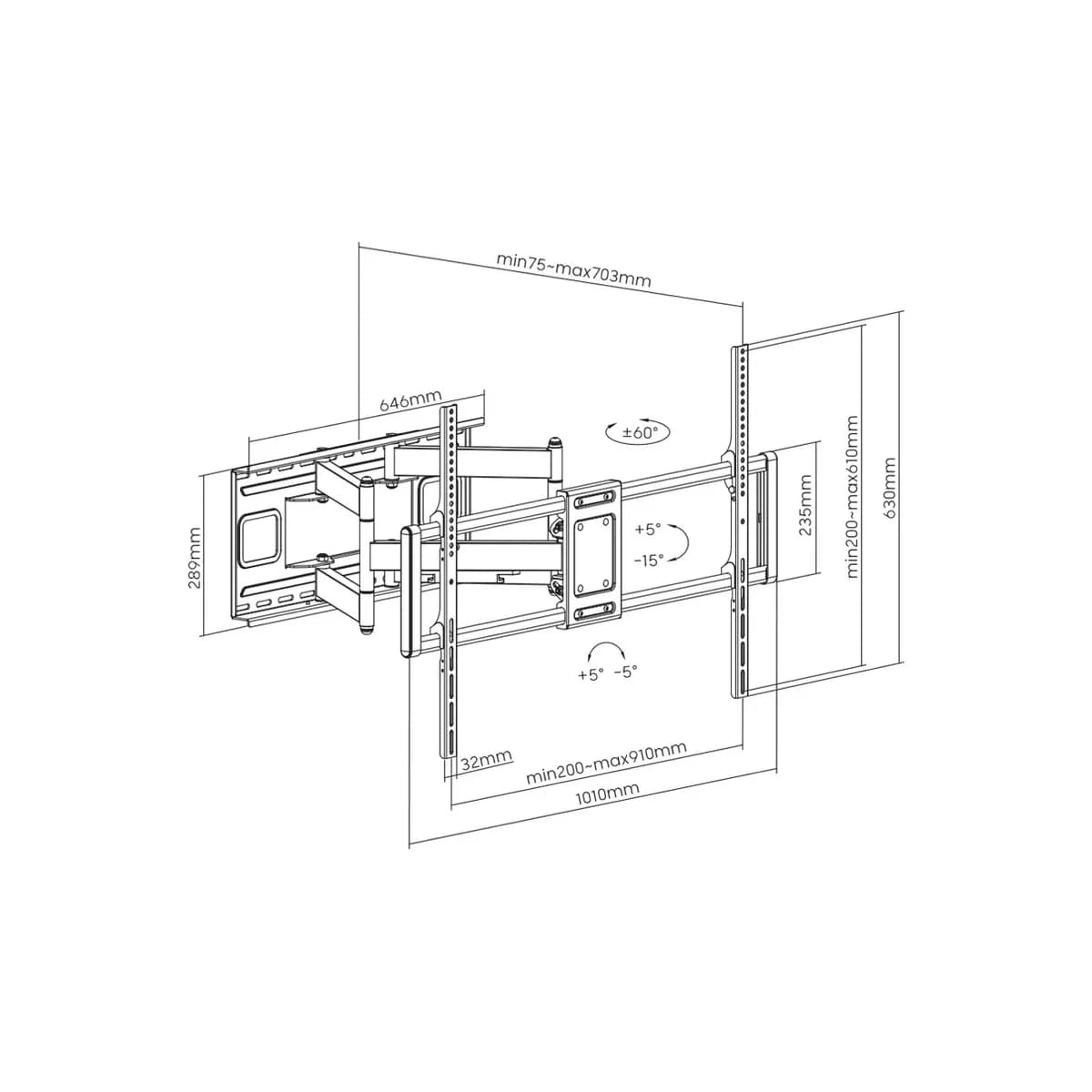

Drawing

Drawing
