Home > Video Wall Mounts > Digital Signage Wall Mounts > Quick Release Video Wall Mount

SH VW600

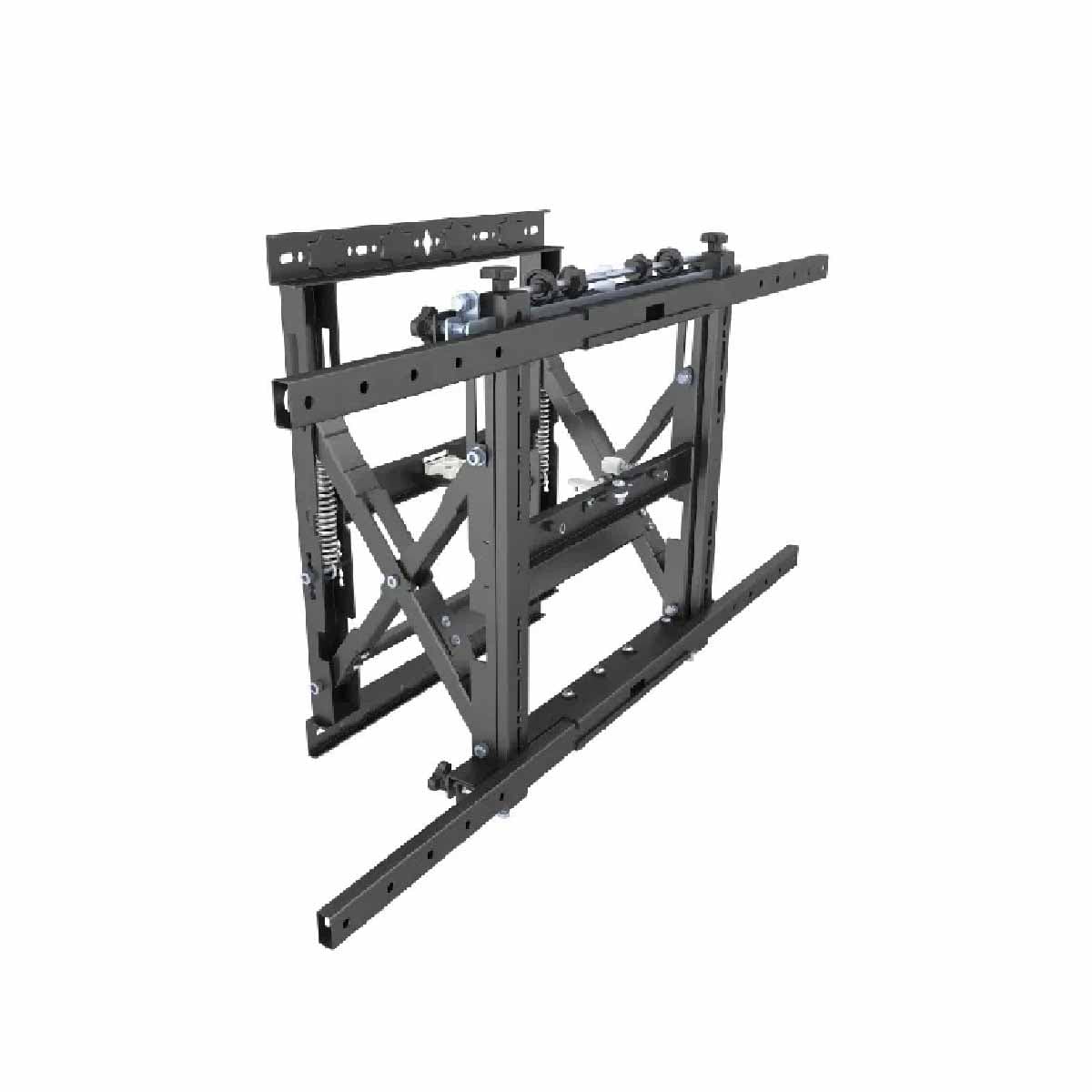

Quick Release Video Wall Mount

45"~75" icon
Screen Size45"~75"
600x400mm icon
Max Vesa600x400mm
70kg icon
Weight Capacity70kg
120-325mm icon
Profile to Wall120-325mm
+2° ~ -3° icon
Tilt Range+2° ~ -3°

Tags: Video Wall Mounts, Video, Wall, Mounts, Video Wall Mounts in uae, Video Wall Mounts in dubai, Best Video Wall Mounts, Quick Release Video Wall Mount

Data Sheet

Overview

Product CategoryVideo Wall Mount
RankStandard
MaterialSteel
Surface FinishPowder Coating
ColorMatte Black
Weight Capacity(Per Screen)70kg
Screen Qty1
Profile120 ~ 325mm (1.9"~8.8")
InstallationSolid Wall
Direction IndicatorYes
Product CategoryVideo Wall Mount
RankStandard
MaterialSteel
Surface FinishPowder Coating
ColorMatte Black

Features

  • Quick Release MechanismAllows fast and easy screen removal for maintenance or replacement.
  • Wide Screen CompatibilityFits most 45" to 75" displays with VESA patterns up to 600x400mm.
  • Durable ConstructionMade of strong, powder-coated steel with a matte black finish, supporting up to 70kg per screen.
  • Adjustable Profile DepthExtends from 120mm to 325mm to suit various installation needs.
  • Solid Wall InstallationIncludes direction indicator and accessory kit for secure and accurate mounting.

Description

The SH VW600 Quick Release Video Wall Mount is a reliable solution for mounting most 45" to 75" screens up to 70kg. Made from durable steel with a matte black powder-coated finish, it supports VESA patterns up to 600x400mm. Its quick-release mechanism allows easy screen removal and maintenance, while the adjustable profile (120–325mm) ensures flexibility. Designed for solid wall installation, it includes a direction indicator and comprehensive accessory kit with instruction manual.

Installation Video

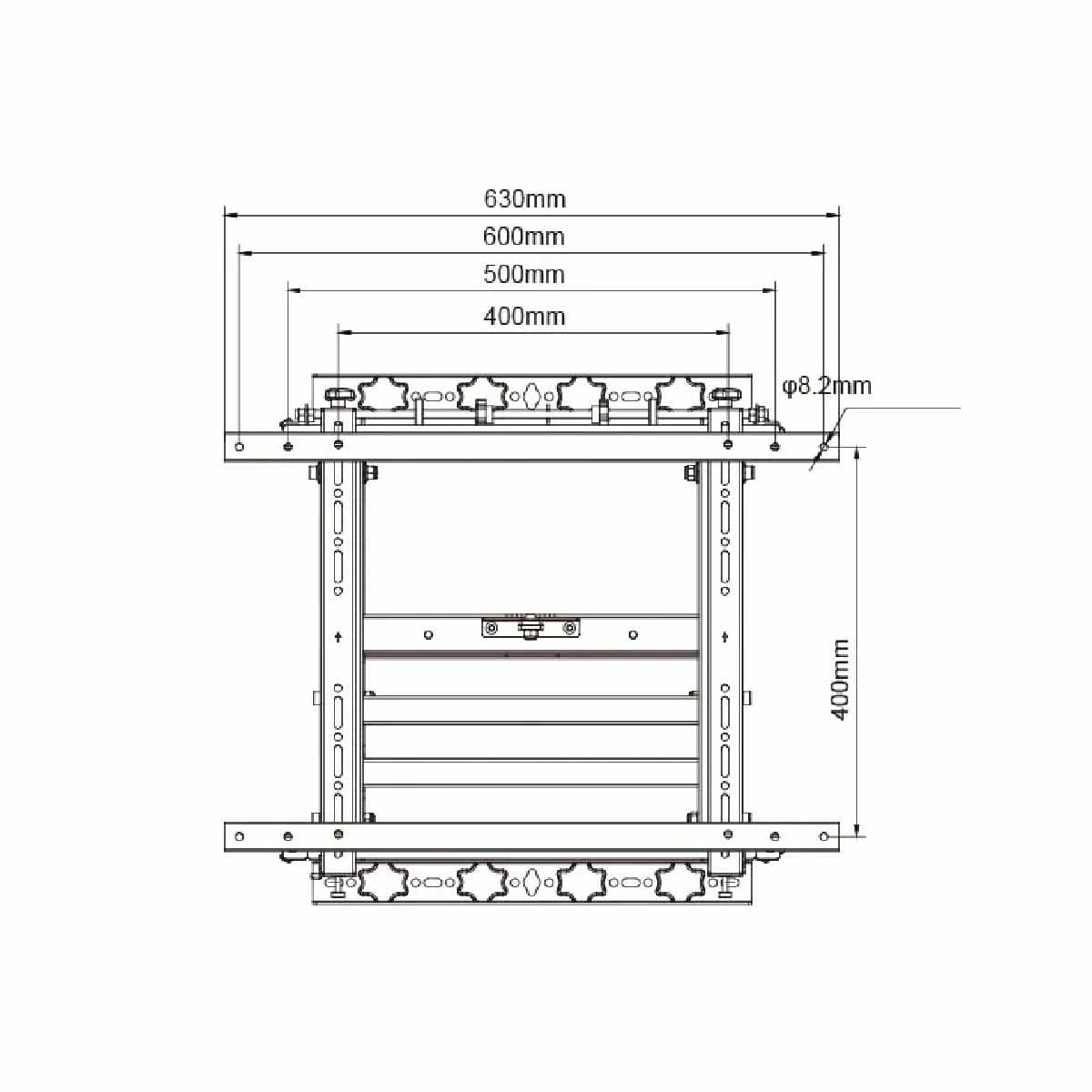

Drawing

Drawing
