SVW03 64T

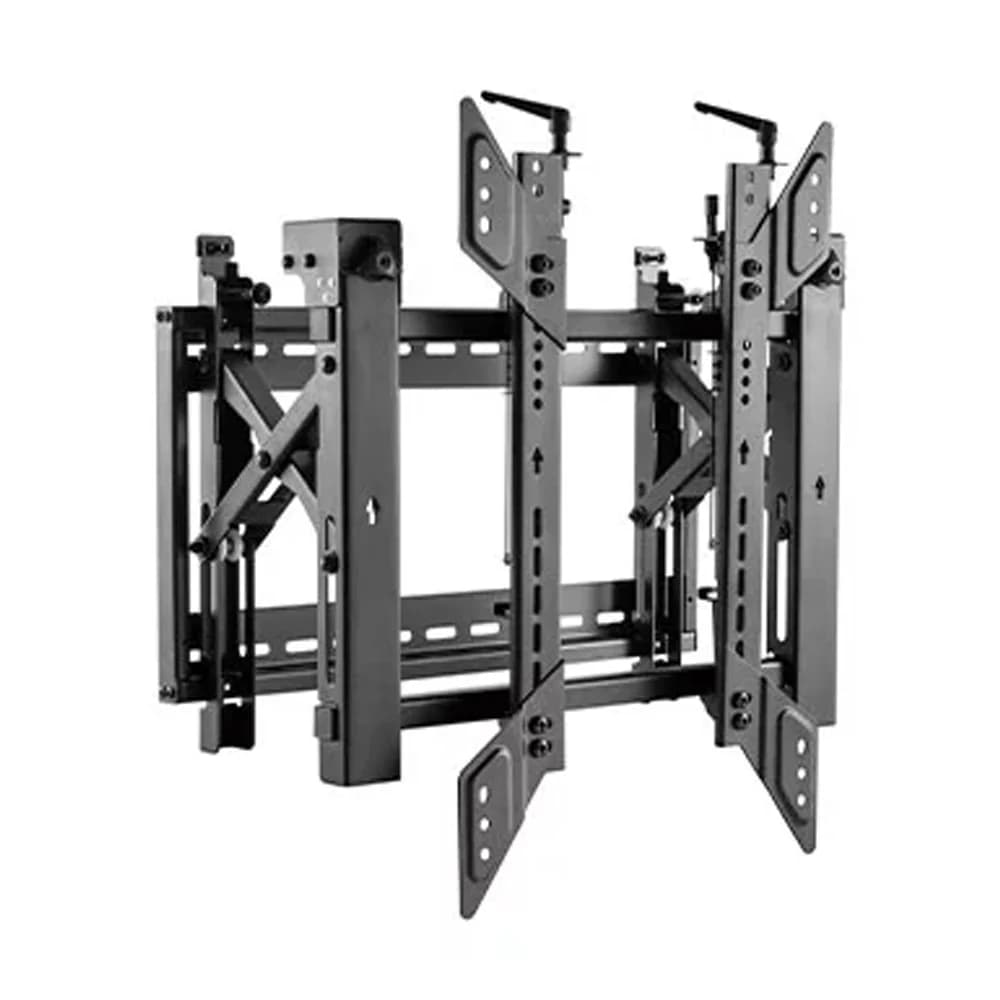

Pop-Out Video Wall Mount

45''~75'' icon
Screen Size45''~75''
400x600mm icon
Max Vesa400x600mm
70kg icon
Weight Capacity70kg
152-315mm icon
Profile to Wall152-315mm
+3° ~ -5° icon
Tilt Range+3° ~ -5°

Tags: Video Wall Mounts, Video, Wall, Mounts, Video Wall Mounts in uae, Video Wall Mounts in dubai, Best Video Wall Mounts, Pop-Out Video Wall Mount

Data Sheet

Overview

Product CategoryVideo Wall Mount
RankPremium
MaterialSteel
Surface FinishPowder Coating
Fit Screen SizeSuitable For Most 45″ ~ 75″ Screen
Screen Level+3° ~ -3°
Profile152-315mm (6″-12.4″)
InstallationSingle Stud
Wall Plate TypeFixed Wall Plate
Freely Height AdjustableNo
Product CategoryVideo Wall Mount
RankPremium
MaterialSteel
Surface FinishPowder Coating
Fit Screen SizeSuitable For Most 45″ ~ 75″ Screen

Features

  • Pop-Out DesignEnables easy access for maintenance and quick display replacement.
  • Detachable PanelSimplifies installation and servicing of individual screens.
  • Micro Adjustment FunctionAllows precise screen alignment for seamless video walls.
  • Strong Load CapacitySupports up to 70kg (154lbs), suitable for most 45″–75″ screens.
  • Secure and ReliableAnti-theft feature and 4-times strength testing ensure safety and durability.

Description

The SVW03 64T Pop-Out Video Wall Mount is a premium steel mount designed for 45″–75″ screens, supporting up to 70kg per display. Featuring a detachable panel and universal VESA compatibility up to 400×600mm, it allows micro-adjustments for precise alignment. With a tilt range of +3° to -5° and screen leveling, it’s ideal for single stud installations. Anti-theft design ensures security, making it perfect for professional video wall setups.

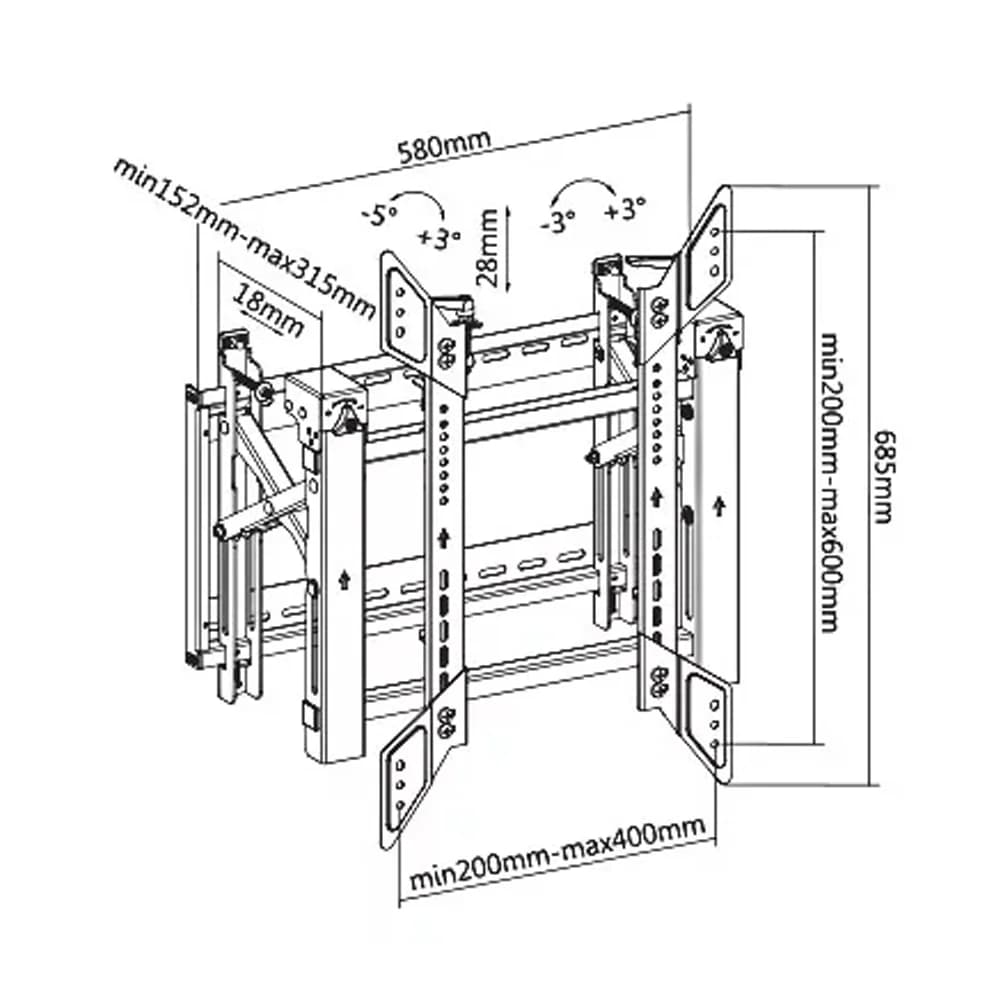

Drawing

Drawing
