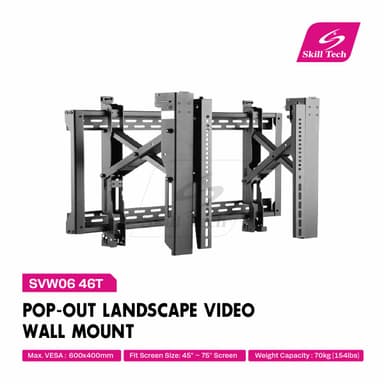

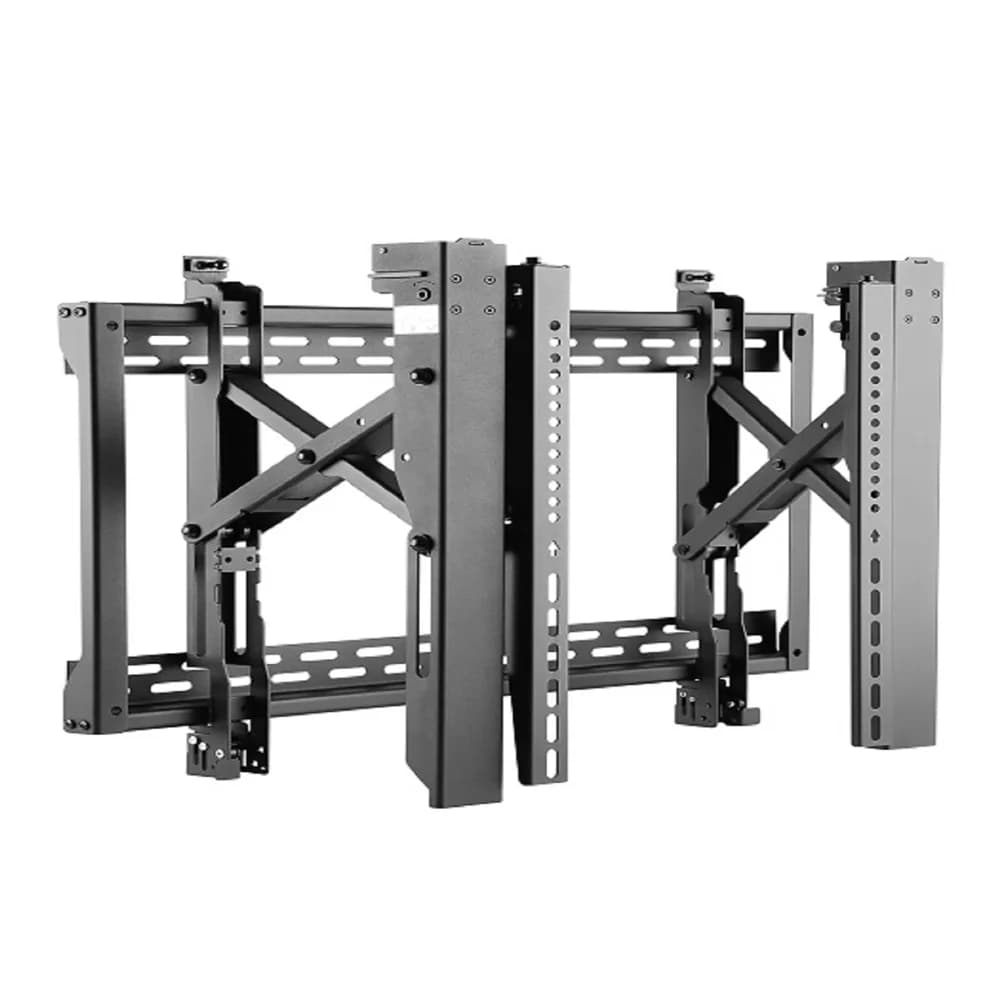

SVW06 46T

Pop-Out Landscape Video Wall Mount

Screen Size45"~75"

Max Vesa600×400mm

Weight Capacity70kg

Profile to Wall92-285mm

Tilt Range+4° ~ -2°

Tags: Video Wall Mounts, Video, Wall, Mounts, Video Wall Mounts in uae, Video Wall Mounts in dubai, Best Video Wall Mounts, Pop-Out Landscape Video Wall Mount

Overview

Product Category	Video Wall Mount
Rank	Premium
Material	Steel
Metal Sheet Thickness	Wall Plate THK=2mm Cold-Rolled Sheet,Bracket Arm THK=2mm Cold-Rolled Sheet)
Surface Finish	Powder Coating

Strength Tested	4 Times Approved

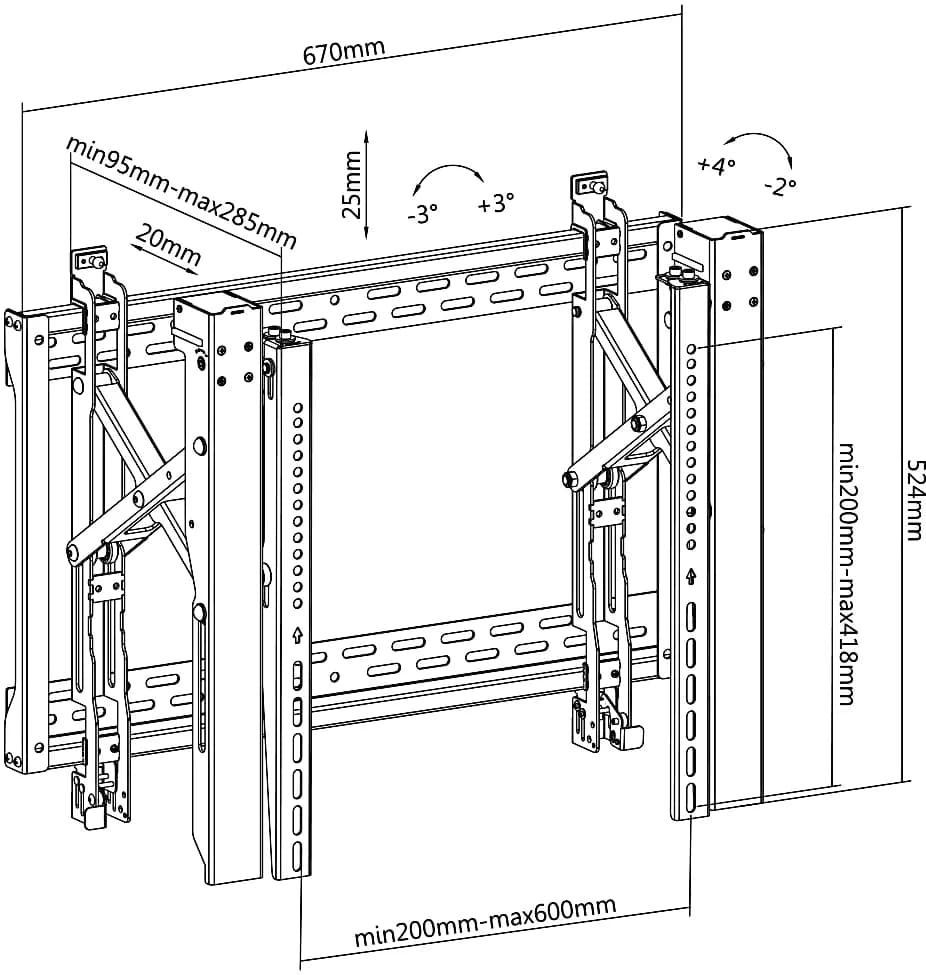

Profile	95~285mm (3.7"~11.2")
Fine Adjustment(Depth/Height)	20mm/25mm (0.79"/0.98")
Tilt Range	+4° ~ -2°
Screen Level	+3° ~ -3°

Product Category	Video Wall Mount
Rank	Premium
Material	Steel
Metal Sheet Thickness	Wall Plate THK=2mm Cold-Rolled Sheet,Bracket Arm THK=2mm Cold-Rolled Sheet)
Surface Finish	Powder Coating

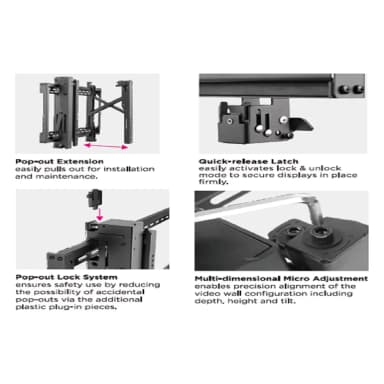

Features

Durable ConstructionMade from 2mm thick cold-rolled steel with a fine texture black powder-coated finish for premium durability.
Pop-Out MechanismProvides easy access for screen maintenance and cable management in video wall setups.
Precision AdjustmentFine-tune screen alignment with 20mm depth and 25mm height micro-adjustments.
Flexible ViewingOffers a tilt range of +4° to -2° and screen leveling of ±3° for optimal display alignment.
High Load Capacity & CertificationSupports up to 70kg per screen and UL certified for safety and reliability.

Description

The SVW06 46T Pop-Out Landscape Video Wall Mount is a premium steel solution for 45"–75" screens, supporting up to 70kg per screen. Built with 2mm cold-rolled steel and powder-coated in fine texture black, it features a pop-out design, precise depth (20mm) and height (25mm) adjustments, and tilt/screen leveling. UL certified and strength tested 4 times, it’s ideal for professional, secure, and easy-to-service solid wall installations. Anti-theft and direction indicators included.
