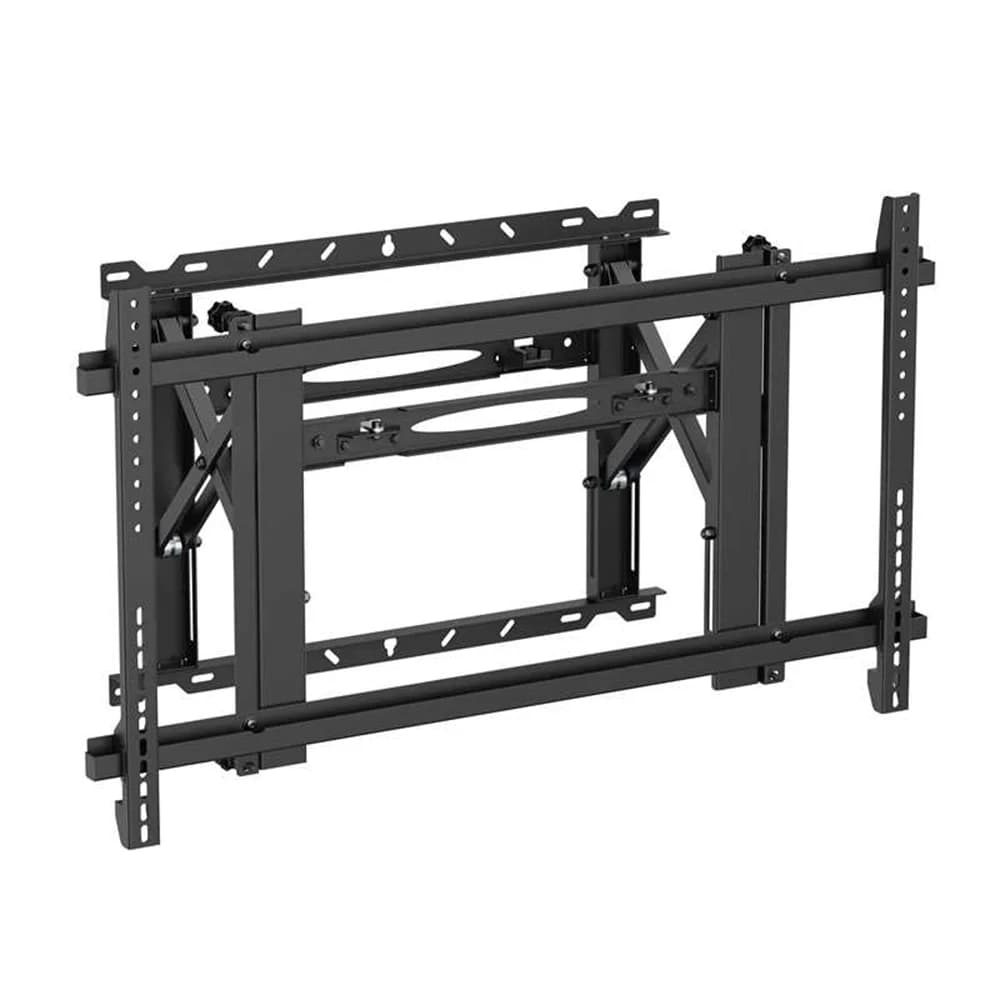

SH VW800

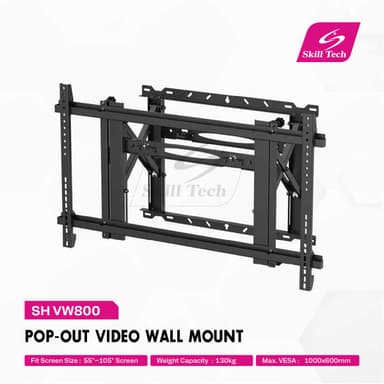

Pop-Out Video Wall Mount

55''~105'' icon
Screen Size55''~105''
1000x600mm icon
Max Vesa1000x600mm
130kg icon
Weight Capacity130kg
125-360mm icon
Profile to Wall125-360mm
+2° ~ -2° icon
Tilt Range+2° ~ -2°

Tags: Video Wall Mounts, Video, Wall, Mounts, Video Wall Mounts in uae, Video Wall Mounts in dubai, Best Video Wall Mounts, Pop-Out Video Wall Mount

Data Sheet

Overview

MaterialSteel, Plastic
ColorFine Texture Black
Dimensions1105x125~360x630mm
Fit Screen SizeSuitable For Most 55"~105" Screen
Max. VESA1000x600mm
Strength Tested3 Times Approved
Profile125~360mm
Fine Adjustment(Depth/Height)15mm/13mm
Tilt Range+2°~-2°
InstallationSolid Wall
MaterialSteel, Plastic
ColorFine Texture Black
Dimensions1105x125~360x630mm
Fit Screen SizeSuitable For Most 55"~105" Screen
Max. VESA1000x600mm

Features

  • Pop-Out MechanismEnables easy access for maintenance and adjustments in video wall configurations.
  • Heavy-Duty SupportHolds large screens from 55" to 105", with a maximum weight capacity of 130kg per screen.
  • VESA CompatibilitySupports mounting patterns up to 1000x600mm for broad screen compatibility.
  • Fine Adjustment CapabilityOffers 15mm depth and 13mm height adjustment for precise screen alignment.
  • Solid Wall InstallationDesigned for secure mounting on solid wall surfaces with a profile range of 125–360mm.

Description

The SH VW800 Pop-Out Video Wall Mount is engineered for professional video wall installations, supporting most 55" to 105" screens up to 130kg. Built from durable steel and plastic with a fine texture black finish, it features a pop-out design for easy access and maintenance. With max VESA compatibility up to 1000x600mm, ±2° tilt, and fine depth/height adjustments, it ensures precise alignment and secure mounting on solid walls.

Installation Video

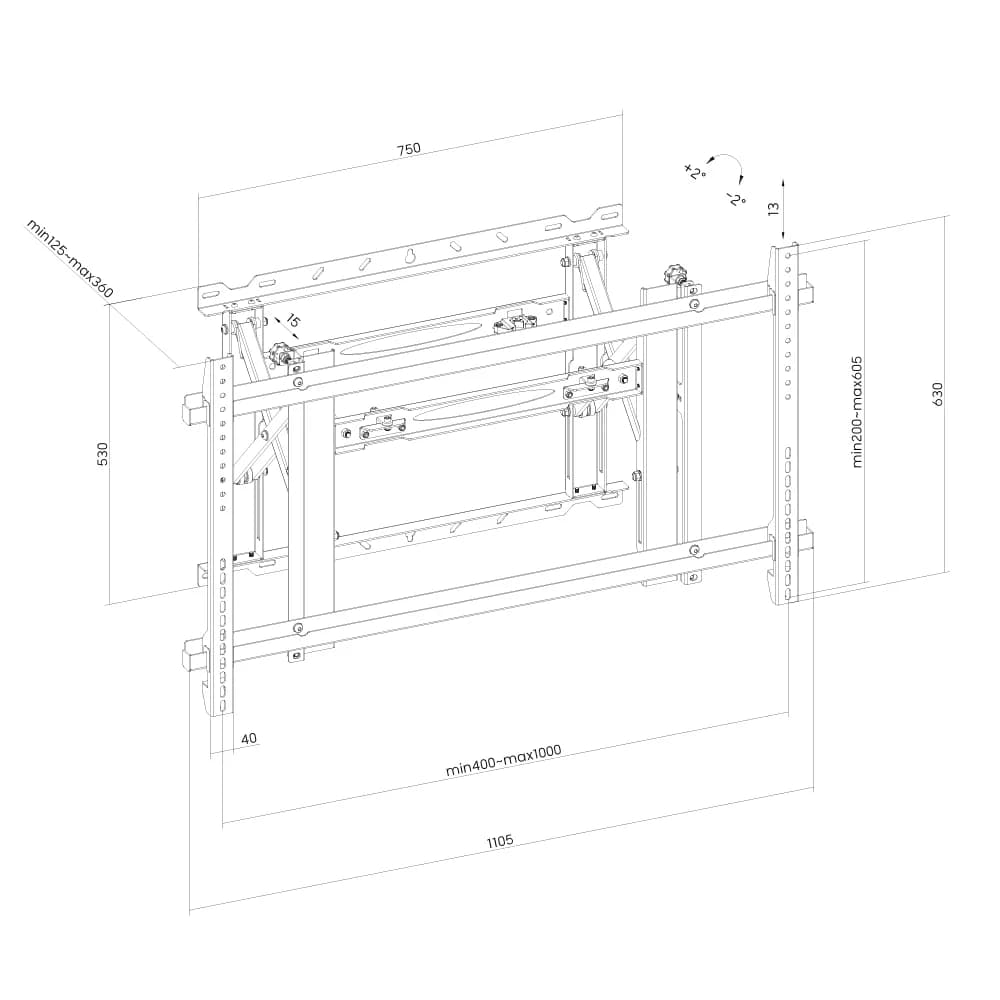

Drawing

Drawing
