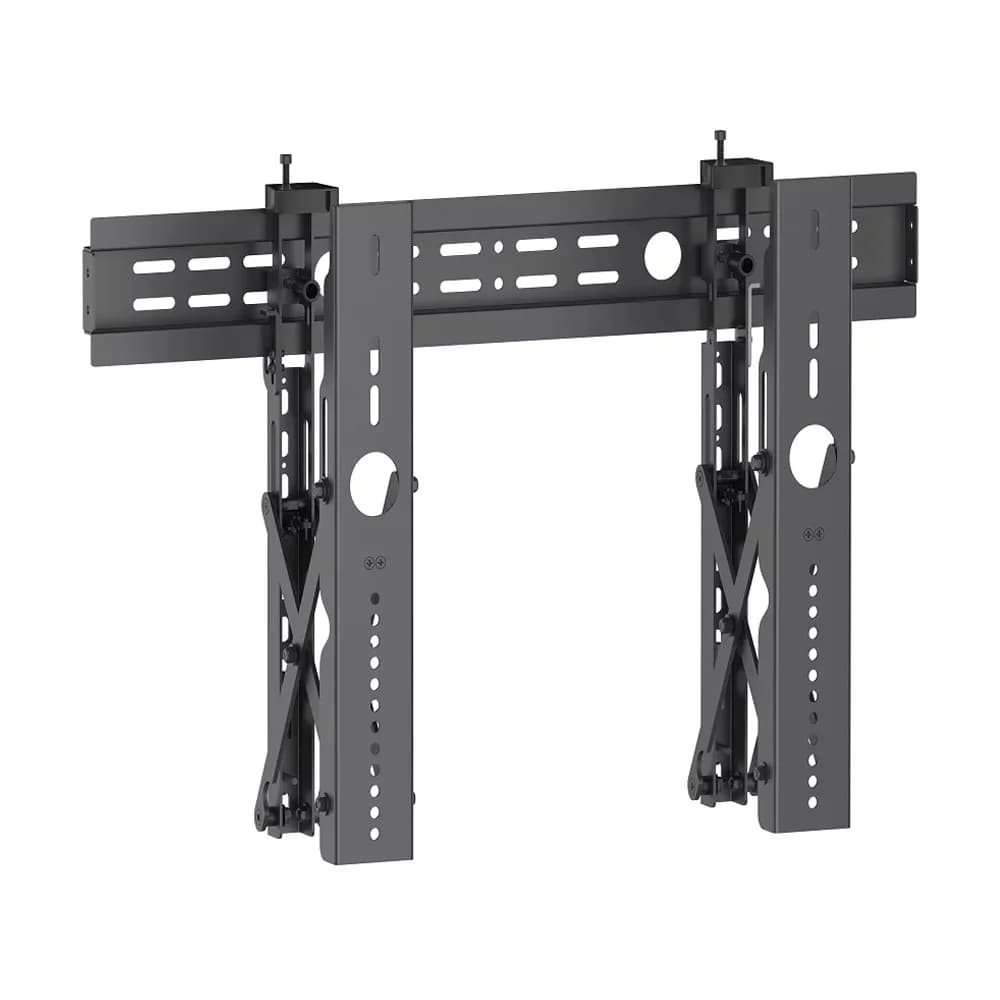

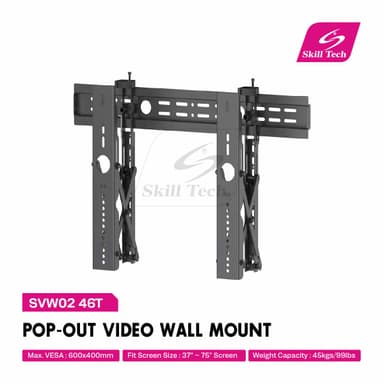

SVW02 46T

Pop-Out Video Wall Mount

Screen Size37"~75"

Max Vesa600x400mm

Weight Capacity45kg

Profile to Wall68-215mm

Tilt Range+3° ~ -3°

Tags: Video Wall Mounts, Video, Wall, Mounts, Video Wall Mounts in uae, Video Wall Mounts in dubai, Best Video Wall Mounts, Pop-Out Video Wall Mount

Overview

Product Name	Video Wall Mount
By Grade	Standard Series
By Mounting Pattern	Universal
Material	Steel
Thickness	Wall Plate:2mm,TV Plate:2.5mm

Installation	Solid wall
Weight Capacity	45kgs/99lbs
Strength tested	4 Times Approved
Max. VESA	600x400mm
Level Adjustment	+3° ~ -3°

Product Name	Video Wall Mount
By Grade	Standard Series
By Mounting Pattern	Universal
Material	Steel
Thickness	Wall Plate:2mm,TV Plate:2.5mm

Features

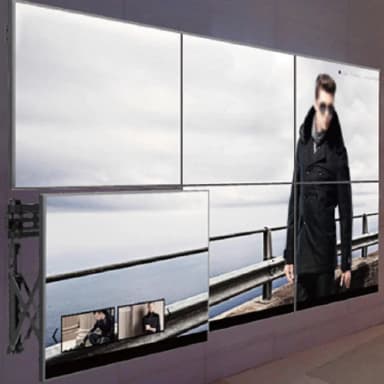

Pop-Out MechanismAllows easy access for maintenance and installation adjustments.
Micro AdjustmentEnsures precise screen alignment with fine-tuning capabilities.
Universal CompatibilitySupports most 37″–75″ screens with max VESA 600x400mm.
Strong & DurableMade from 2–2.5mm thick steel, strength tested 4 times for reliability.
Secure DesignIncludes anti-theft feature and detachable panel for added security and convenience.

Description

The SVW02 46T Pop-Out Video Wall Mount is a standard-grade steel mount designed for 37″–75″ screens, supporting up to 45kg (99lbs) per screen. With a universal VESA pattern up to 600x400mm, it features a pop-out design for easy access, micro-adjustments for precise alignment, and level adjustment of ±3°. Built with 2–2.5mm thick steel and powder-coated in black, it includes an anti-theft feature and a separated panel for efficient installation.
