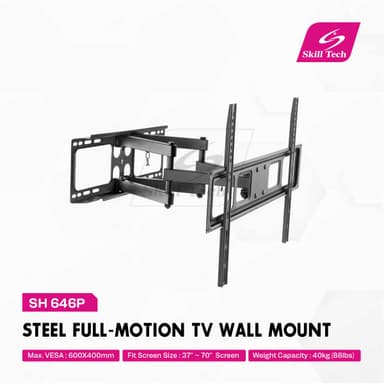

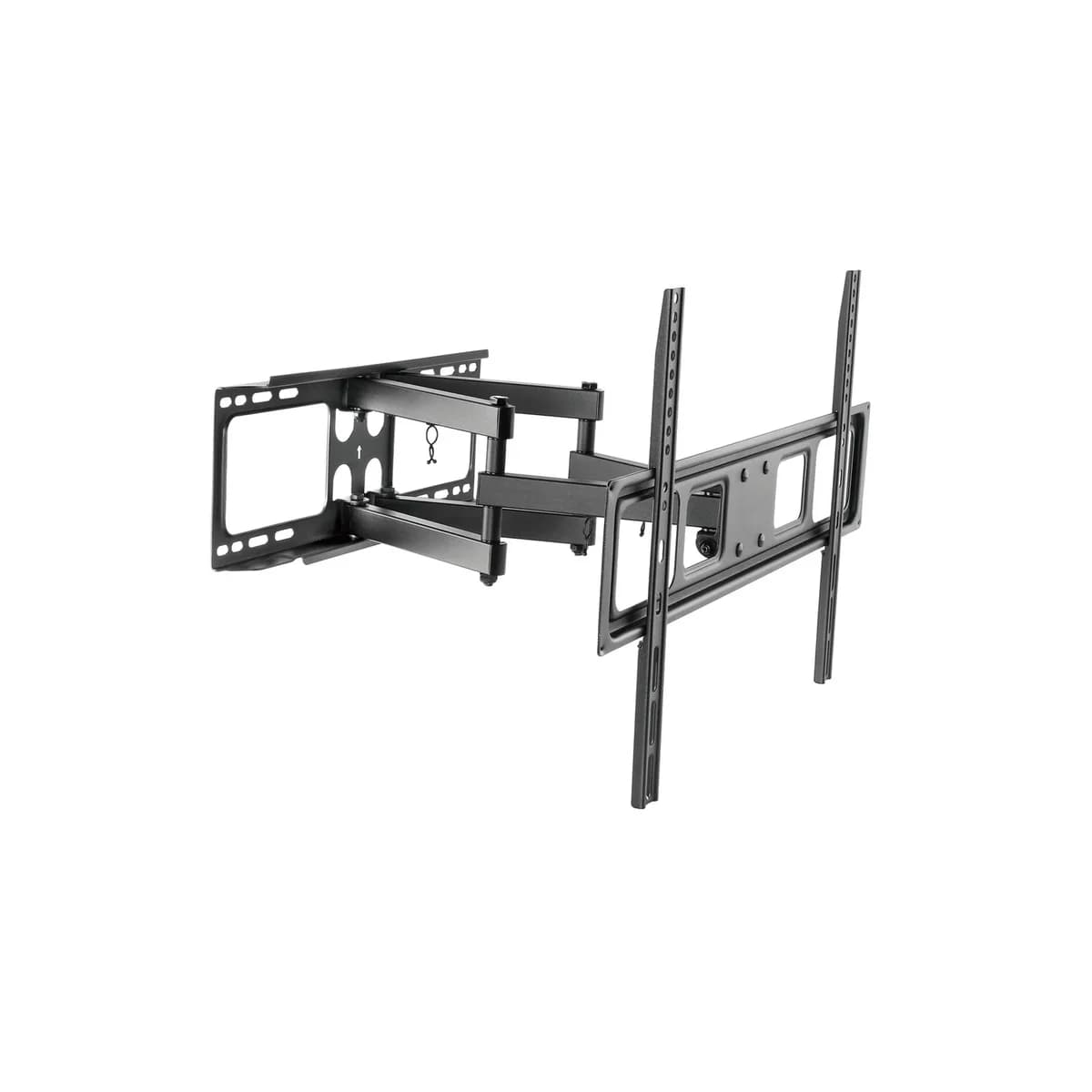

SH 646P

Steel Full-Motion TV Wall Mount

Screen Size37"~70"

Max Vesa600x400mm

Weight Capacity40kg

Profile to Wall53-464mm

Tilt Range+5° ~ -15°

Tags: TV Wall Mounts, TV Mounts, Wall Mounts , TV Brackets , Low Profile TV Wall Mount, TV Stand, TV Wall Mount In UAE , Quality TV Wall Mount,Full Motion Double Arm Mounts, Steel Full-Motion TV Wall Mount

Overview

Product Category	Full-Motion TV Wall Mount
Rank	Economy
Material	Steel
Pipe Size	30x20x1.5 mm (1.2"x0.79"x0.059" )
Surface Finish	Powder Coating

Max. VESA	600X400mm
Weight Capacity	40kg (88lbs)
Strength Tested	2 Times Approved

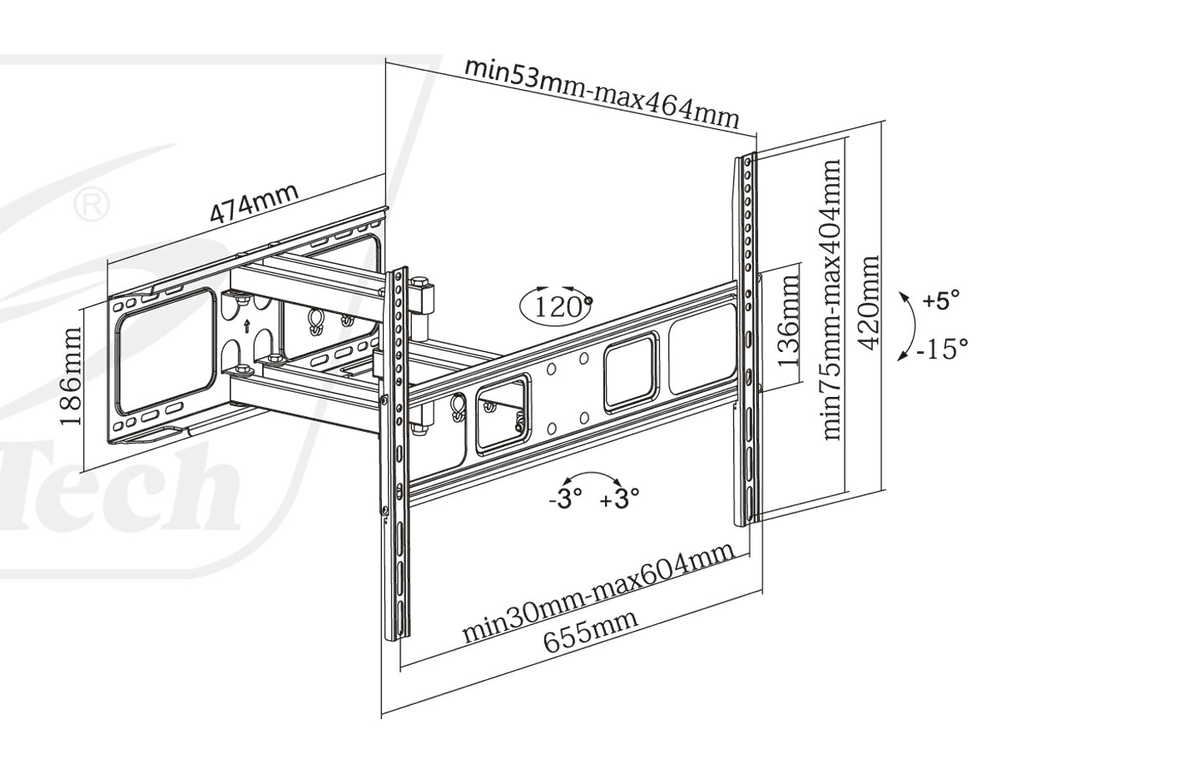

Profile	53~464mm (2.1"~18.3")
Tilt Range	+5° ~ -15°

Product Category	Full-Motion TV Wall Mount
Rank	Economy
Material	Steel
Pipe Size	30x20x1.5 mm (1.2"x0.79"x0.059" )
Surface Finish	Powder Coating

Features

Wide CompatibilityFits most 37" to 70" screens, including curved TVs, with a maximum VESA size of 600x400mm.
Heavy-Duty CapacitySupports up to 40kg (88lbs), ensuring a secure and stable mount for large TVs.
Flexible Viewing AnglesFeatures a tilt range of +5° to -15°, swivel range of +60° to -60°, and screen leveling from +3° to -3°.
Durable Steel ConstructionBuilt with high-quality steel for strength and durability, finished with a fine texture black powder coating.
Easy InstallationDesigned for solid wall or double stud mounting, with a detachable panel for convenience during setup.

Description

The SH 646P Steel Full-Motion TV Wall Mount offers a reliable and versatile solution for mounting TVs ranging from 37" to 70". With a sturdy steel construction and a weight capacity of up to 40kg (88lbs), it supports both VESA and universal patterns (max 600x400mm). The mount features a +5° to -15° tilt, +60° to -60° swivel, and +3° to -3° screen leveling for optimal viewing angles. Easy to install on solid walls or double studs.
