High-Quality LED Display Screens | Indoor & Outdoor Digital Solutions

Overview

Pixel Pitch	P1.25
Module Resolution (W*H)	256x128
Module Dimension (mm)	320x 160x17
Unit board signal interface	HUB320
Warranty	2 year

Viewing Angle	140°/140°
Brightness	≥500
Power Supply	DC 4.5 V
Pixel Density	640000
Unit board signal interface	HUB320

Pixel Pitch	P1.25
Module Resolution (W*H)	256x128
Module Dimension (mm)	320x 160x17
Unit board signal interface	HUB320
Warranty	2 year

Features

Ultra-Fine Pixel Pitch (P1.25)Delivers high-definition visuals suitable for close-range indoor applications.
Wide Viewing Angle (140°/140°)Ensures excellent visibility from both horizontal and vertical angles.
High Grayscale (14-bit)Provides smooth gradients and lifelike image quality.
Excellent Color Uniformity (±0.003Cx, Cy)Maintains consistent color output across the entire display.
Lightweight and Compact DesignWeighs only 0.46 kg, making it easy to install and maintain.

Description

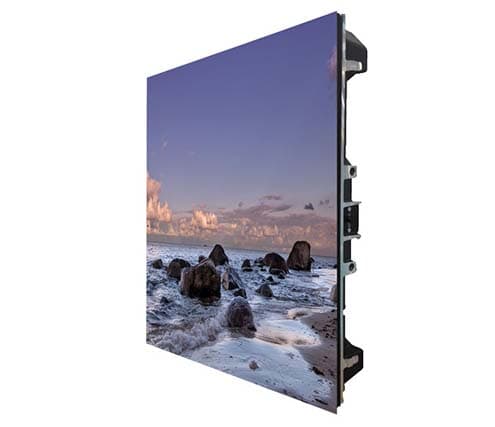

The MW7712-MI-H1C is a high-resolution indoor LED display module with a fine 1.25mm pixel pitch, delivering sharp images and vibrant colors. With 14-bit grayscale, high contrast, and wide viewing angles, it ensures clear visibility from any direction. Engineered for reliability, it features uniform color performance and a compact, lightweight design. Ideal for professional indoor displays in control rooms, conference halls, or commercial signage applications.
