LED Display Vivid Colors, High-Resolution & Reliable Performance

Overview

Pixel Pitch	P1.538
Module Resolution (W*H)	208x104
Module Dimension (mm)	320x160x16.6
Operating humidity	10 to 60% RH, non-condensing
Warranty	2 year

Viewing Angle	140°/140°
Brightness (nits)	≥500
Power Supply	DC 4.5
Pixel density (pitch/m²)	422500
Unit board signal interface	HUB75

Pixel Pitch	P1.538
Module Resolution (W*H)	208x104
Module Dimension (mm)	320x160x16.6
Operating humidity	10 to 60% RH, non-condensing
Warranty	2 year

Features

Ultra-Fine 1.538 mm Pixel PitchDelivers superior image clarity for detailed content.
High Pixel Density (422,500/m²)Ensures crisp visuals for high-definition displays.
14-bit Grayscale ProcessingProduces smooth gradients and realistic color rendering.
Wide Viewing Angle (140°/140°)Consistent image quality across broad perspectives.
Compact & Lightweight (0.46 kg)Easy integration with HUB75 interface for versatile installations.

Description

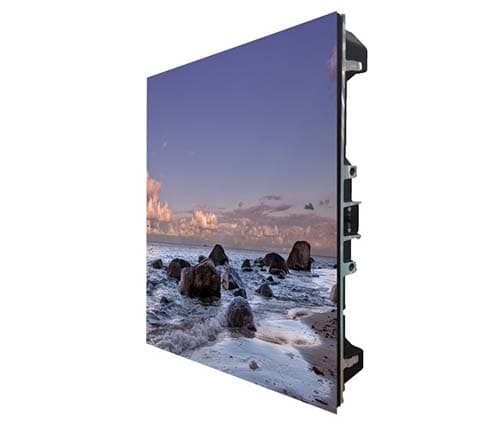

The MW7715-MI-H1C is a premium indoor LED display module engineered for high-resolution, close-range viewing. With a pixel pitch of just 1.538 mm and a module resolution of 208×104, it offers ultra-sharp imagery and outstanding visual detail. Boasting 14-bit grayscale, excellent color uniformity, and wide viewing angles, this module is ideal for conference rooms, studios, and digital signage where clarity and performance are paramount.
