Indoor LED Module High-Quality, Bright & Seamless Display

Overview

Pixel Pitch	P1.8
Module Resolution (W*H)	172x86
Module Dimension (mm)	320x160x16.6
Unit Parameters Dimension (WHD) (mm)	640x480x71.4
Warranty	2 Year

Viewing Angle	140°/140°
Brightness	500
Power Supply	AC 100 to 240V
Pixel Density	295664
Single Pixel Brightness Correction	Support

Pixel Pitch	P1.8
Module Resolution (W*H)	172x86
Module Dimension (mm)	320x160x16.6
Unit Parameters Dimension (WHD) (mm)	640x480x71.4
Warranty	2 Year

Features

Fine Pixel Pitch (P1.8)Delivers superior image clarity for close-range viewing.
High Resolution (344×258)Ensures crisp, high-definition indoor display performance.
Die-Cast Aluminum & Graphene ConstructionDurable and lightweight with efficient heat dissipation.
Wide Viewing Angle (140°/140°)Provides consistent image quality across all perspectives.
500 nits Brightness & 4000:1 Contrast RatioOffers vibrant and clear visuals in indoor lighting conditions.

Description

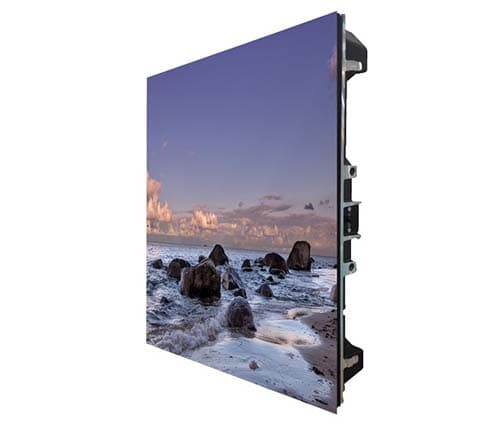

The MW7918-P is a high-precision indoor LED display screen with a fine P1.8 pixel pitch and a 344×258 resolution, ensuring crystal-clear visuals. Built from lightweight die-cast aluminum and graphene, it offers excellent thermal management and structural strength. With 500 nits brightness, 4000:1 contrast ratio, and 140° viewing angles, this screen is perfect for detailed content in boardrooms, control centers, and upscale retail environments.
