Indoor LED Module High-Resolution, Bright & Seamless Display

Overview

Pixel Pitch	P2.5
Module Resolution (W*H)	128x64
Module Dimension (mm)	320x160x16.2
Unit Parameters Dimension (WHD) (mm)	640x480x71
Warranty	2 Year

Viewing Angle	140°/140°
Brightness	400
Power Supply	AC 200 to 240V
Pixel Density	160000
Single Pixel Brightness Correction	Support

Pixel Pitch	P2.5
Module Resolution (W*H)	128x64
Module Dimension (mm)	320x160x16.2
Unit Parameters Dimension (WHD) (mm)	640x480x71
Warranty	2 Year

Features

Fine Pixel Pitch (P2.5)High resolution for detailed indoor visual applications.
Die-Cast Aluminum + Graphene BodyLightweight, durable, and efficient in heat management.
Wide Viewing Angle (140°/140°)Clear visuals from multiple angles with minimal distortion.
4000:1 Contrast Ratio & 400 nits BrightnessProduces vivid, high-clarity images in indoor lighting.
Single Pixel Brightness CorrectionEnsures consistent brightness and color uniformity across the display.

Description

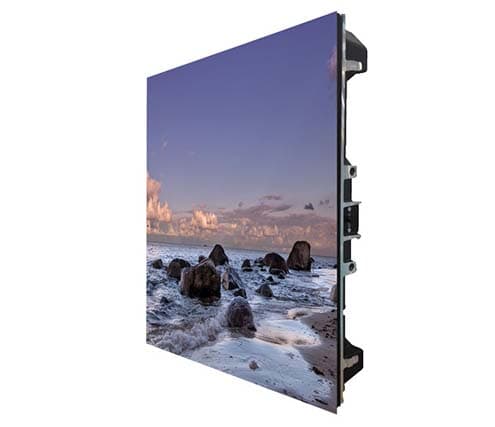

The MW7925-P is a high-performance indoor fine pitch LED display with a P2.5 pixel pitch, offering a sharp 256×192 resolution in a compact 640×480 mm unit. Constructed with advanced die-cast aluminum and graphene materials, it ensures excellent heat dissipation and lightweight durability. With 400 nits brightness, 140° wide viewing angles, and 4000:1 contrast ratio, it delivers vibrant, consistent visuals—perfect for corporate, retail, or control room environments.
