LED Display High-Brightness, HD Visuals & Reliable Performance

Overview

Pixel Pitch	P1.86
Module Resolution (W*H)	172x86
Module Dimension (mm)	320x160x16.6
Storage temperature	20 to 60°C
Warranty	2 year

Viewing Angle	140°/140°
Brightness	≥500
Power Supply	DC 4.5
Pixel Density	288906
Brightness uniformity	≥95%

Pixel Pitch	P1.86
Module Resolution (W*H)	172x86
Module Dimension (mm)	320x160x16.6
Storage temperature	20 to 60°C
Warranty	2 year

Features

Fine P1.86 Pixel PitchEnsures ultra-clear visuals for close-viewing indoor applications.
14-bit GrayscaleDelivers smooth color transitions and high-fidelity image rendering.
High Pixel Density (288,906/m²)Enables exceptional detail and sharpness.
≥95% Brightness UniformityGuarantees even luminance across the entire screen.
Wide Viewing Angle (140°/140°)Provides optimal visibility from multiple directions.

Description

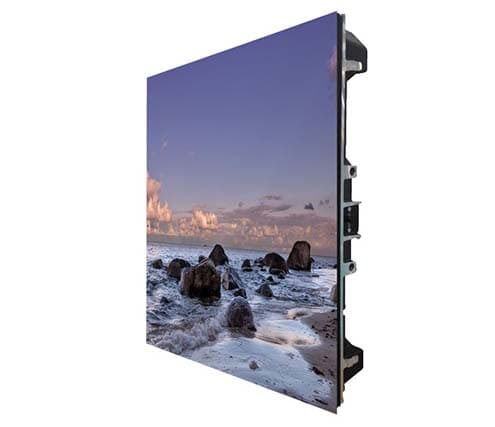

The MW7718-MI-H1C is a high-performance indoor LED display module featuring a fine P1.86 pixel pitch, delivering crisp, high-resolution visuals with 172×86 pixels per module. With 14-bit grayscale, excellent brightness uniformity (≥95%), and a wide 140° viewing angle, it offers vibrant and consistent imagery. Ideal for control rooms, corporate spaces, and luxury retail environments, this lightweight 0.45 kg module combines precision engineering with premium display quality.
